Specification:
Frequency: 1.2Ghz
Resolution :380TV Tines
Linear Transmission Distance :50M (20 metres through obstacles)
Camera Lens:6mm
Viewing Angle;56 degrees
Camera Size :40mm Diameter(better than 45mm)
Dimensions:5.5cm x 4.0cm x 4.0cm
Image pickup device : 1/3,1/4" Image Sensors
Effective Pixel :NTSC : 628X582
TV system : NTSC
Transmission Signal :Video
Output Power :50Mw,200Mw
Output frequency: 900MHz~1200MHz
Scanfrequency: PLA/CCIR:50Hz NTSC/EIA:60Hz
Power supply: DC+9V-12V

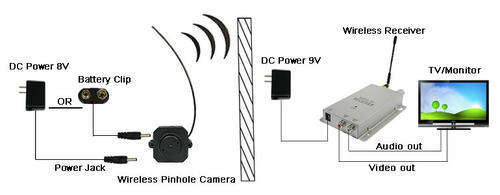

Instruction:
Twist the receiver antenna into the receiver
Connect the receiver to the monitor (TV, Video, PC) with AV cable
Plug the DC 9V 500mA adaptor into the power jack of the receiver
Insert the second DC 9V 200mA adaptor or the 9V Battery (not included) via the leads into the power jack of camera
Adjust the frequency controller on the receiver to the required position
Adjust the lens of the camera to the best position, then mount the camera.

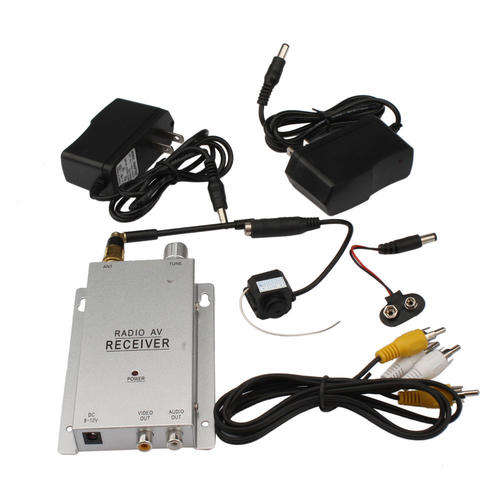

Package include:
* 1 X Wireless camera
* 1 X Audio/Video Receiver
* 1 X Antenna
* 1 X Power adapter for the camera
* 1 X Power adapter for the receiver
* 1 X audio/video cable
