Lock Color Black

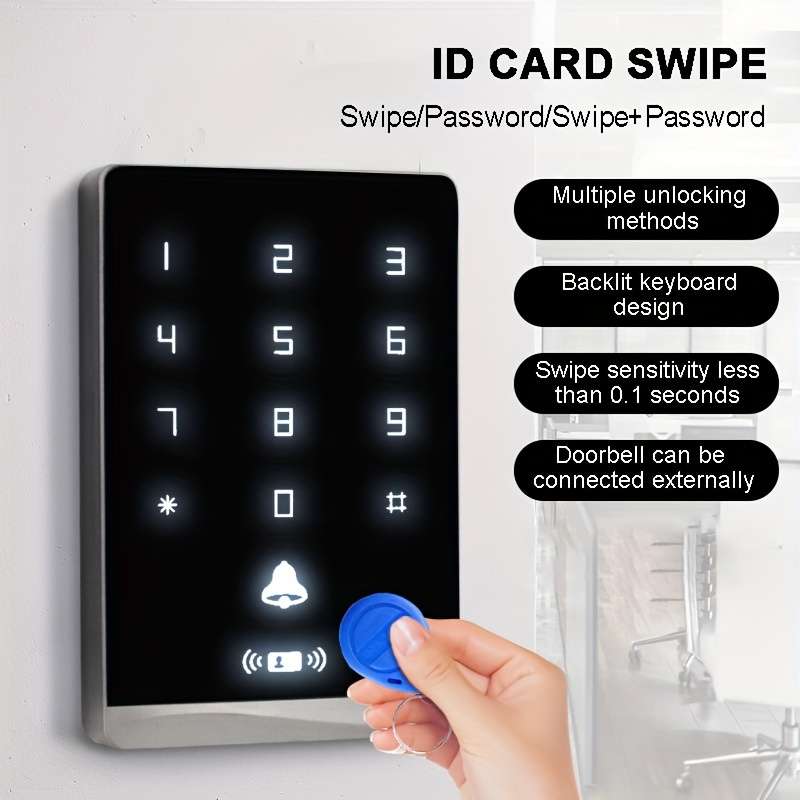

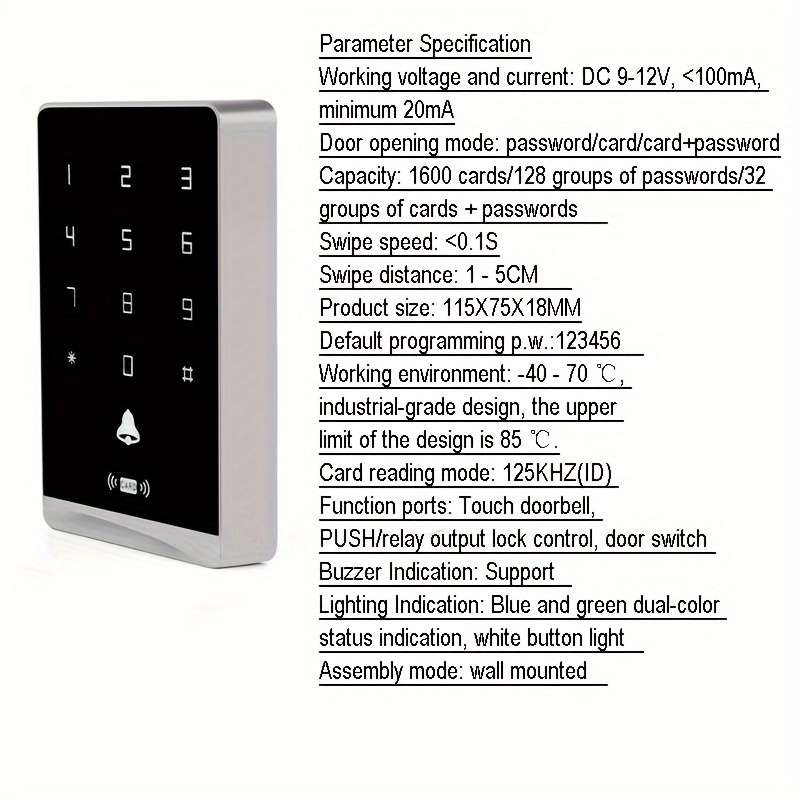

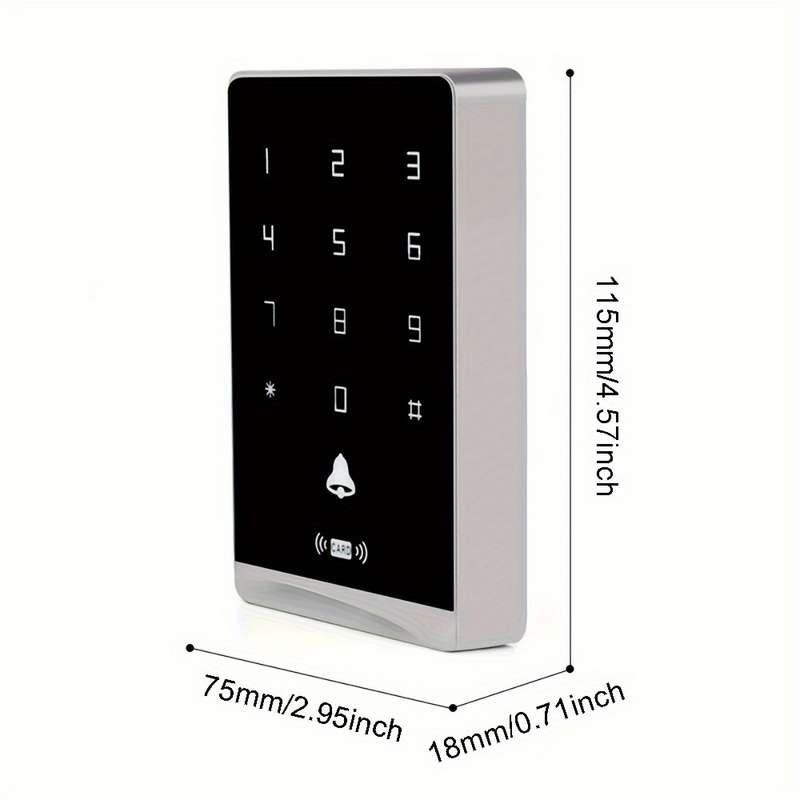

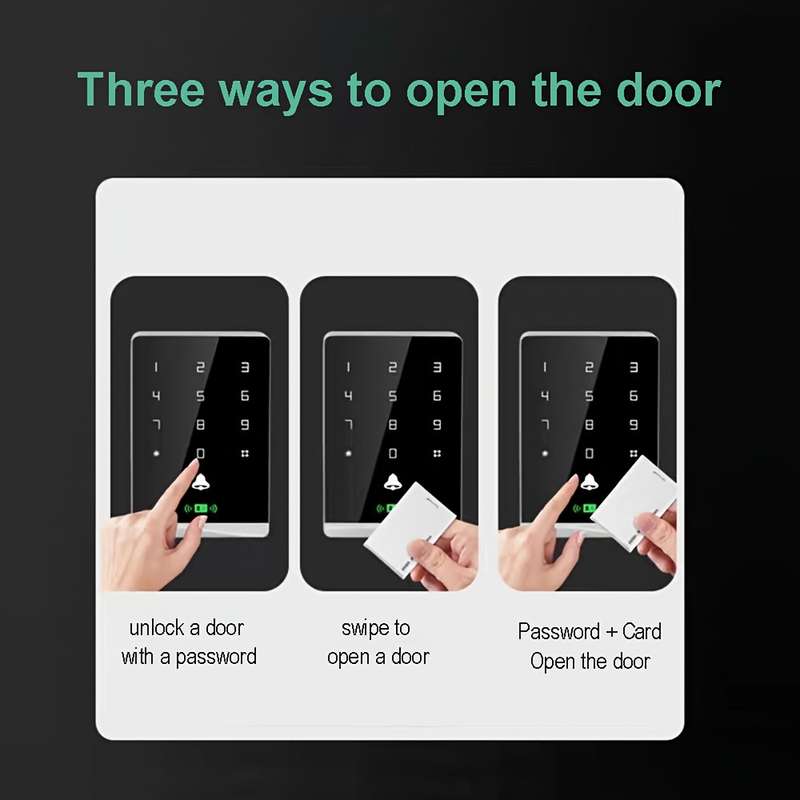

Specifications for the parameter settings: The device operates with a voltage and current range of DC 9-12V, consuming less than 100mA, with a minimum requirement of 20mA. It supports three door opening modes: password, card, or a combination of card and password. The device has a capacity for 1600 cards, 128 groups of passwords, or 32 groups of cards with passwords. The swipe speed is less than 0.1 seconds, and the swipe distance ranges from 1 to 5 centimeters. The product dimensions are 115X75X18MM. The default programming password is 123456. It can operate in temperatures ranging from -40 to 70 degrees Celsius, with an industrial-grade design that can withstand temperatures up to 85 degrees Celsius.

Operating frequency for card reading: 125KHZ(ID)
Features: Touch doorbell, PUSH/relay output for lock control, door switch
Audible alert: Available
Visual alert: Blue and green dual-color status indication, white button light
Installation method: Wall-mounted
