LoRa SX1278 Long Range RF Wireless Power Mental Module

Features:

1. Using FSK / GFKS technology and LoRa (remote) spread spectrum technology
2. Half duplex communication.
3. Super anti-jamming (channel rejection ratio: 56db)
4. High Receive Sensitivity: 139dbm. (32M Passive 10ppm Crystal)
5. ISM multi-band, no need to apply for frequency free use.
6. Multi-frequency and a variety of transmission rate for chosen. Can be used in FDMA and FM technology.
7. Intelligent reset, low voltage monitoring, timer wakeup, low power mode, sleep mode.
8. Low power consumption to accept current: 10-12mA
9. 256-bit FIFO TX / RX
10. RSSI channel detection function
11. Transmission mode: FIFO / direct mode (recommended FIFO pack mode)
12. FC / air wake-up function / low power / carrier sense / FEC error correction / AEC encryption
13. Ultra-long distance transmission open up to 5KM.

Specifications:

1. Model: XL1278-SMT
2. Material: Metal
3. Transmit power: 0.1 (W)

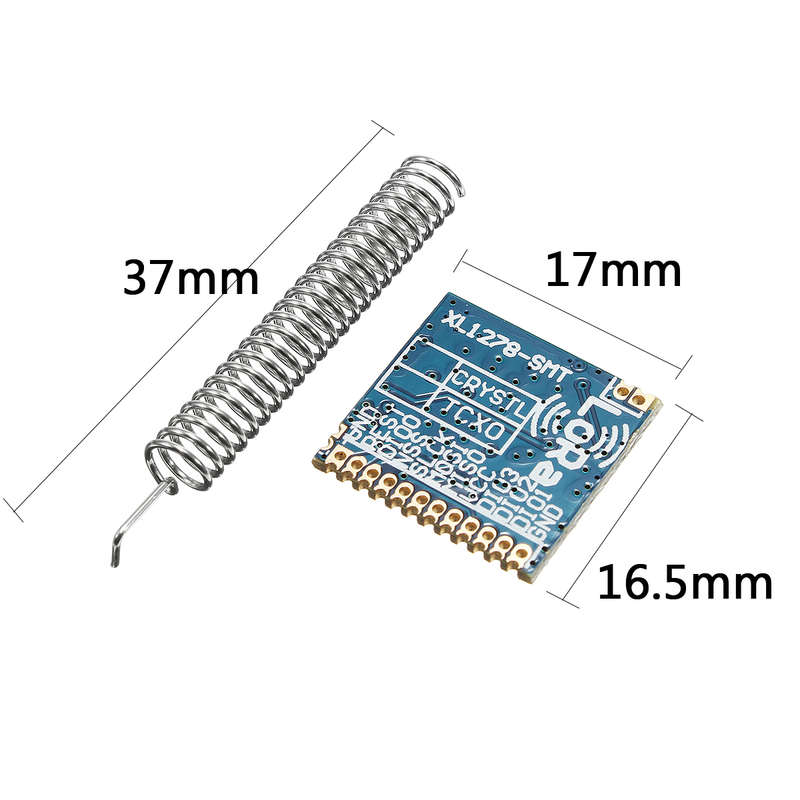

4. Size: 17mm x 16.5mm
5. Band: 433 (MHz)

Applications:

1. Remote control and remote data acquisition system
2. Wireless meter reading (water, electricity, gas)
3. Wireless ordering machine, oil, mining, construction sites, factories and other original 485/232 interface system
4. Industrial data acquisition, transmission, intelligent control system
5. Wireless alarm system
6. Intelligent furniture system
7. Baby monitoring system / hospital paging system
8. Wireless small data transmission system

Package includes:

1 x Module with antenna








, ,
