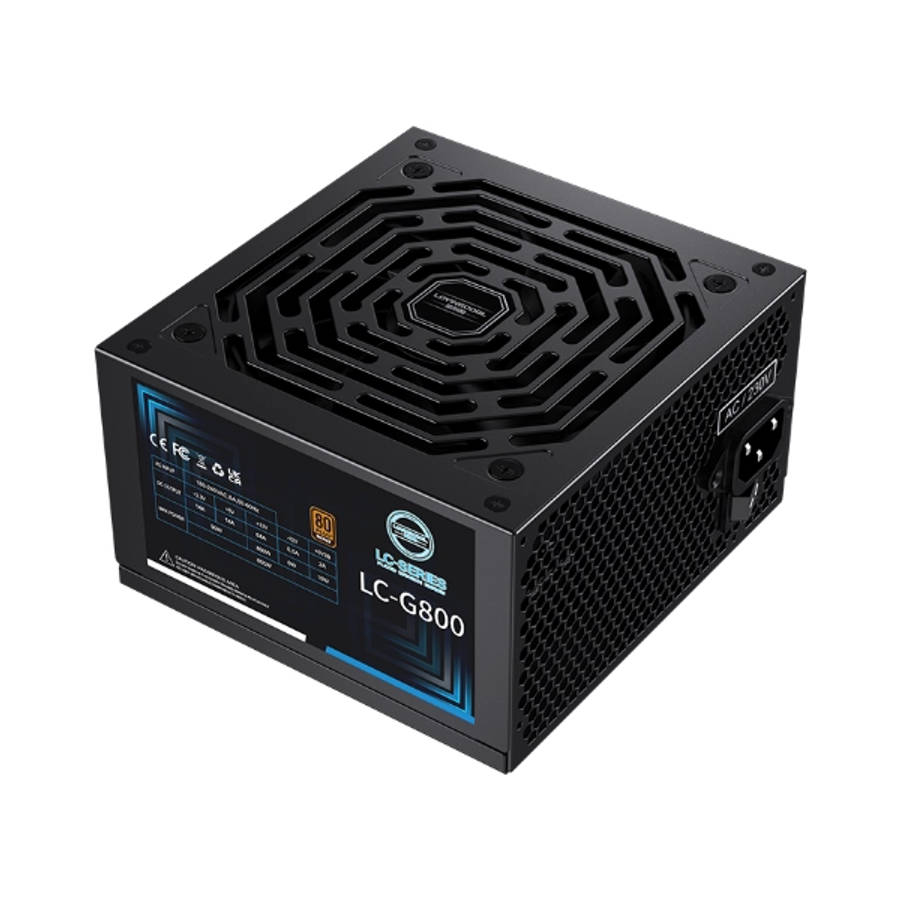

The LovingCool LC-G800 is a high-capacity non-modular ATX power supply built for performance-oriented desktop systems that need stronger power delivery and broader connector support than entry-level units. With 800W APFC output, 80 PLUS Bronze certification, and dual 4+4-pin CPU connectors plus three 6+2-pin PCIe connectors, it is well suited to gaming PCs, workstations, and upgraded builds that need reliable multi-rail-style cable support through a fixed-cable design. Its 120 mm fan, 72.3 CFM airflow, and 2.31 mm H2O static pressure help maintain cooling under load, while CE, RoHS, and FCC certification plus built-in protections add confidence for long-term use.
800W APFC output for demanding desktop and gaming configurations.
Non-modular fixed-cable design for straightforward installation and stable power delivery.
80 PLUS Bronze certified for improved efficiency compared with basic PSU designs.
Dual 4+4-pin CPU connectors and three PCIe 6+2-pin connectors for stronger component support.
Six SATA connectors and three IDE connectors for broader storage and accessory compatibility.
100240V universal input with EU/US plug options for flexible deployment.
120 mm fan rated at 2000 ±10% RPM with 72.3 CFM airflow and 2.31 mm H2O pressure.
Full protection suite: TOP, OCP, VOP, SCP, OPP, and UVP.
| Specification | Description |
|---|---|
| Model | LC-G800 |
| Series | G Series Power Supply |
| Type | Non-modular PSU |
| Wiring type | Fixed cable |
| Rated power | 800W APFC |
| Standard | ATX 2.1 |
| Input voltage | 100240V, 5060Hz |
| Plug type | EU plug / US plug |
| Independent switch | Yes |
| Efficiency | 80 PLUS Bronze certified |
| Certifications | CE, RoHS, FCC |
| Protection | TOP / OCP / VOP / SCP / OPP / UVP |
| Cooling fan | 120 mm fa... |
