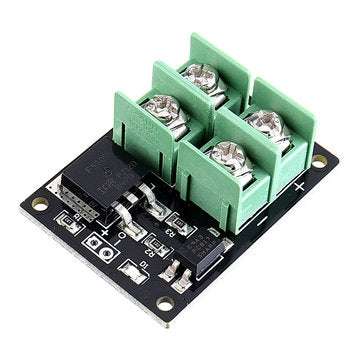

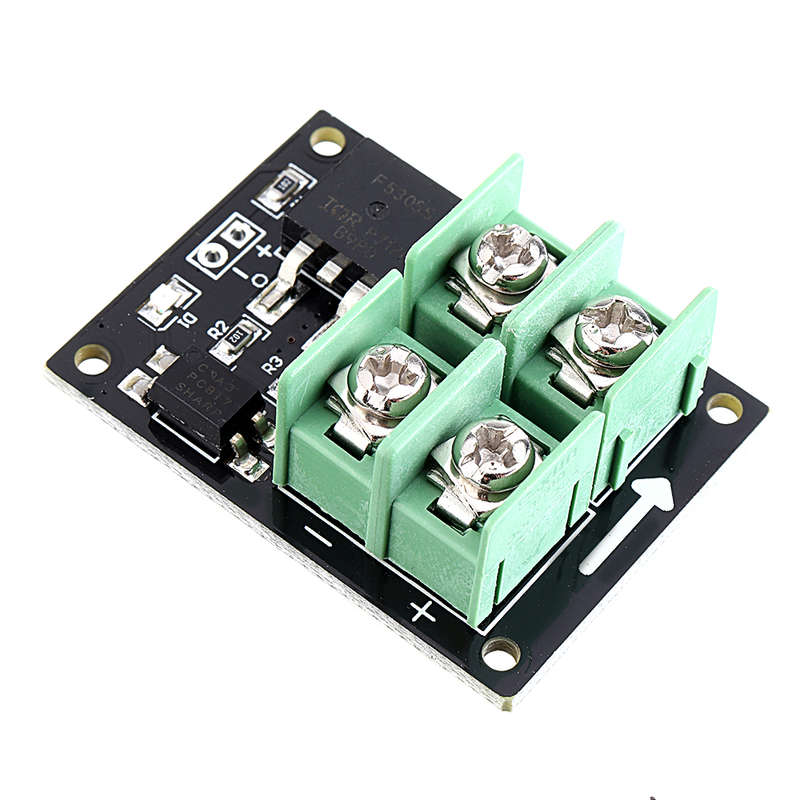

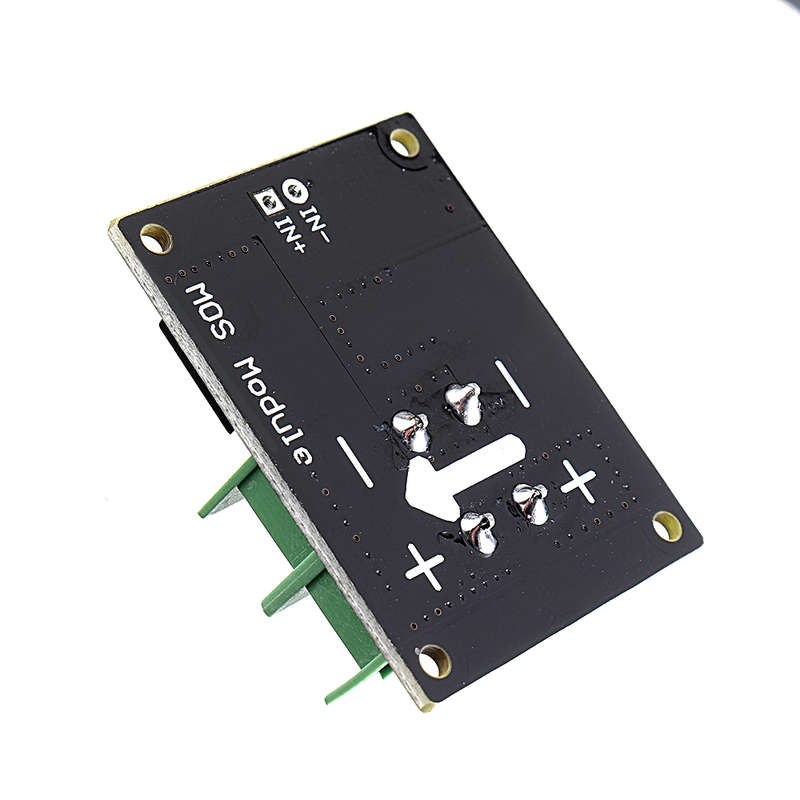

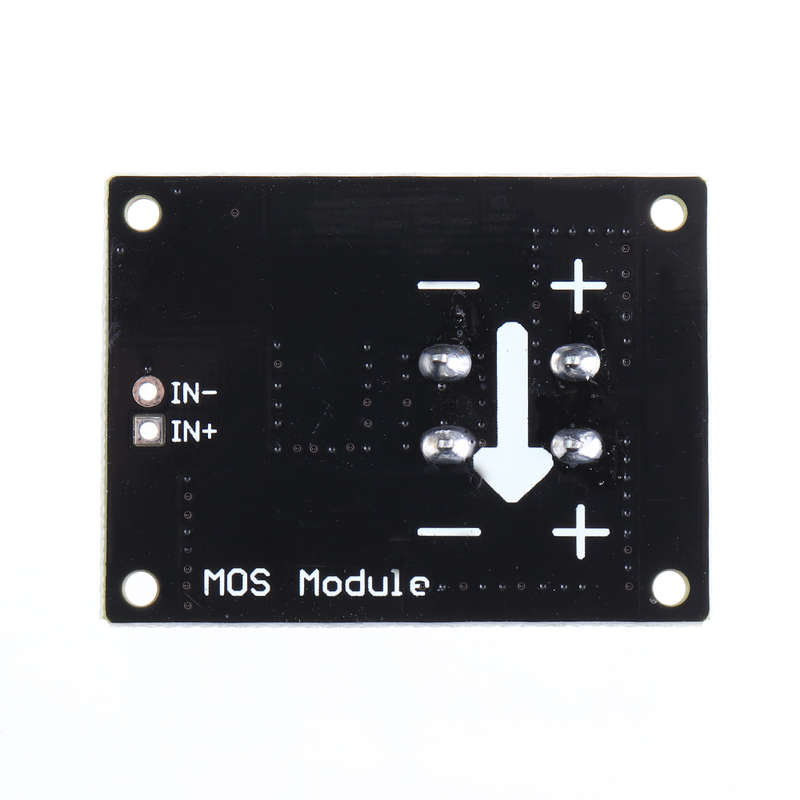

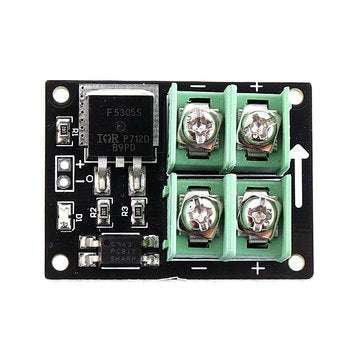

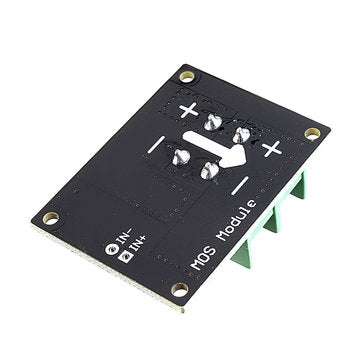

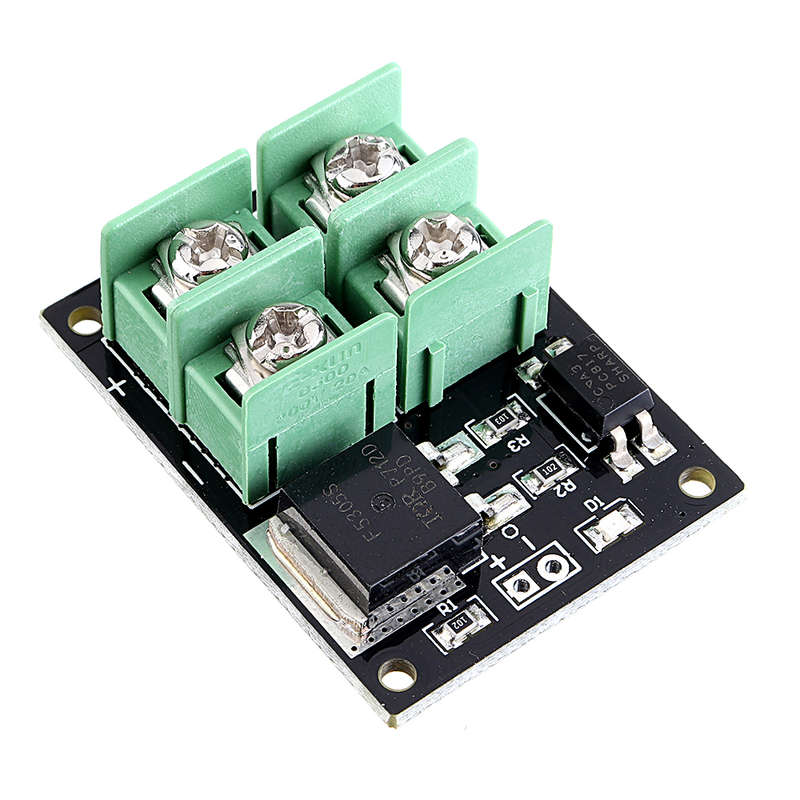

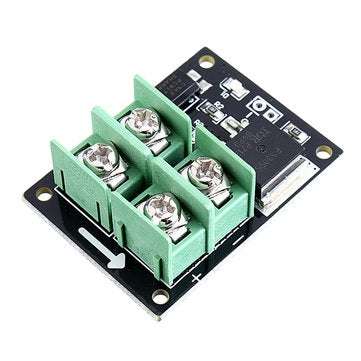

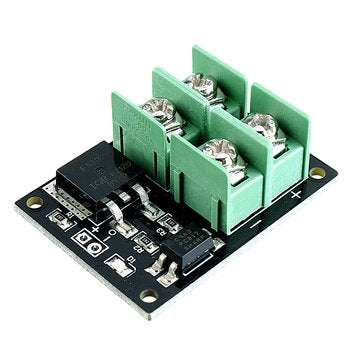

Low Voltage MOSFET Switch Module Electronic 3V 5V Low Control High Voltage 12V 24V 36V FET Module

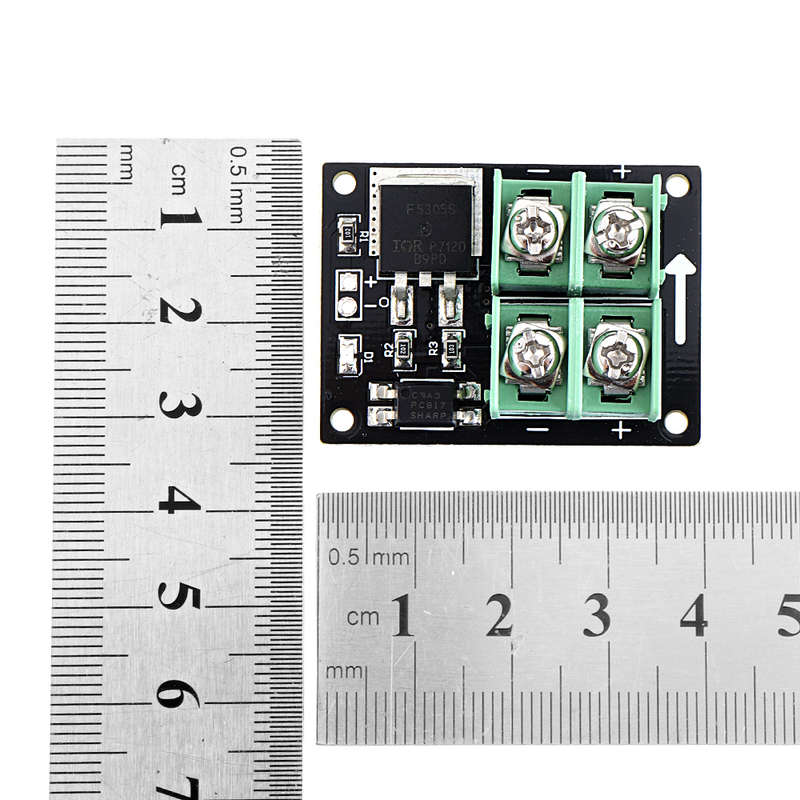

Description: Input control voltage: 3.3V-12V Output charging voltage: 5-36V The board is optically isolated and completely separate from the 2-terminal voltage. The input is controlled by a 2-pin control and the ground control can be connected directly to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED. Charging large current: 22A, more than 5A need to add a heat sink. Host input and output screw terminal block The control terminal uses a 2.54MM pin for easy wiring. Control can be directly connected to the microcontroller IO. The MCU can control the motor speed with the PWM. Light brightness, etc. Please note that high currents require the addition of an additional heat sink Board size: 4.2 2.6 cm

Package includes:

1 xMOSFET Switch Module
