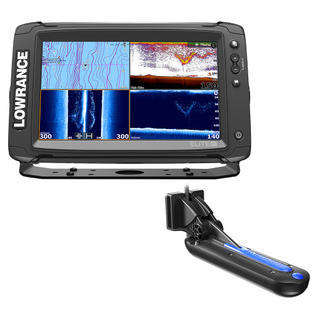

Lowrance Elite-9 Ti TOTALSCAN Bundle

83/200 & Med / High CHIRP Sonar

DownScan & SideScan Imaging

Full Colour Touch Screen

Fishfinder / Chartplotter Combo

With TotalScan Transom Mount Skimmer Transducer

STOCKED AND SUPPORTED IN SOUTH AFRICA!

3 YEAR LIMITED WARRANTY

1 to 3 Days Door to Door Delivery in South Africa

SPECIFICATIONS

Display: Touch Screen LED Back-Lit WideScreen (16:9) 9 -inch WVGA-TFT Colour Display; 800 x 480 P

Hi & Med CHIRP Sonar (RMS - PTP) Max 500W,

HD StructureScan: SideScan, DownScan Imaging, DownScan Overlay™ & StructureMap

"TOTALSCAN" Transducer INCLUDED: 83/200 KHz / MED / HI CHIRP 2D Sonar+ 455 / 800 kHz HD StructureScan Transom Mount Skimmer Transducer with Temp Sensor for Shallow Water <300 m / 1000 Ft

Internal GPS Antenna. External Point-1 Antenna Option

3000 Waypoints

100 Routes / Trails

World Background Map included: Free Insight Genesis & Optional Premium Chart Upgrades

TrackBack™ & Sonar Recording

Media Port: 1 microSD slot

Voltage: 12v DC (10-17v min-max)

Networking:

NMEA 0183

1 x NMEA 2000 Port

Mounting: Gimbal Bracket included or Flush Mount

White Protective Cover included

Integrates with Motorguide Xi5 GPS Pinpoint Trolling Motor

OPTIONS

SEE PROMPTS AFTER "BUY NOW"

1: Premium Charts: (Navionics Charts include 1 Year Online Update Service.)

a) Lowrance RSA Inland Waters @ R 640

b) Navionics Gold RSA East Coast @ R 2 410

c) Navionics Gold Africa & Middle East @ R 4 045

d) Navionics PLATINUM+ SE AFRICA @ R 4 400

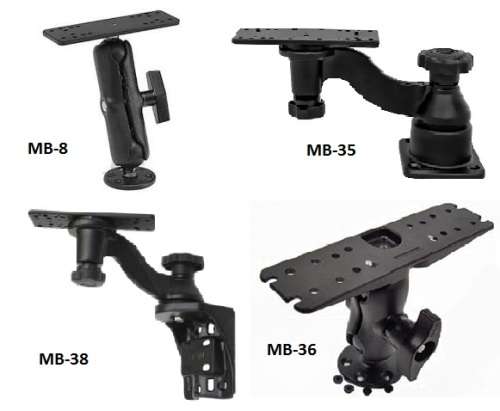

2: RAM Mount Options:

a) MB-8 1,5" Double Ball: R 1 180

b) MB-35 Horizontal Deck Mount Swing Arm R 1 370

c) MB-38 Vertical Bulkhead Mount Swing Arm R 2 000

d) MB-36 2,5" Double Ball: R 2 000

3 NMEA 2000 Network Starter Kit @ R 1 580

Includes: Power - In T Piece, Cable & Fuse, 1 x Device T Piece, 1 x 2' Cable, 1 x 15' Cable, & Network Terminators

4 Point - 1 Hi Speed External GPS Antenna with Mag Compass (Requires Existing N2K Network or Network Starter Kit) @ R 4 970
