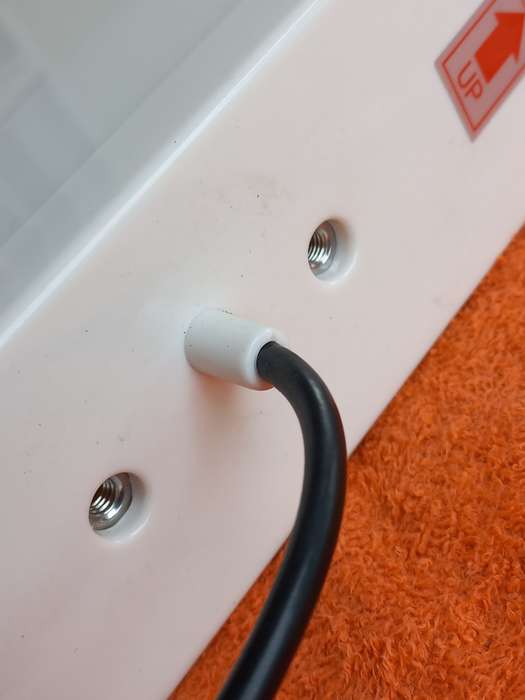

Antenna is new, but the mounting bracket is missing - see photos for holes to mount.
High-gain external LTE 11dB YAGI antenna with 10 meter cable.
700 to 2500Mhz 11dB LTE/4G YAGI antenna with 10 meter cable with SMA male plug.
Suitable for LTE, 3G, 4G, GSM etc.
Performs at 15dB min for LTE frequencies.
Vertical polarization. DC ground lighting protection.
Use 2 units for the best LTE reception.
Supplied with factory fitted 10 meter cable. Extender cables can be made if a longer length is required.
Frequency Range : 700~960MHz ; 1710~2500MHz Gain : 11dBi VSWR : 1.4 Polarization : Vertical F/B Radio : 15dB Horizontal Bandwidth : 90° Vertical Bandwidth : 60° Input Impedance : 50 Maximum Power : 50W Lightning Protection : DC Ground
Connector : SMA Male Dimensions : 405 x 210 x 65mm Shipping Dimensions : 510 x 460 x 460mm Weight : 1.1kg Reflector Material : Aluminium Radome Material : ABS Rated Wind Velocity : 180km/hr Operating Temperature : -40°C to 60°C
