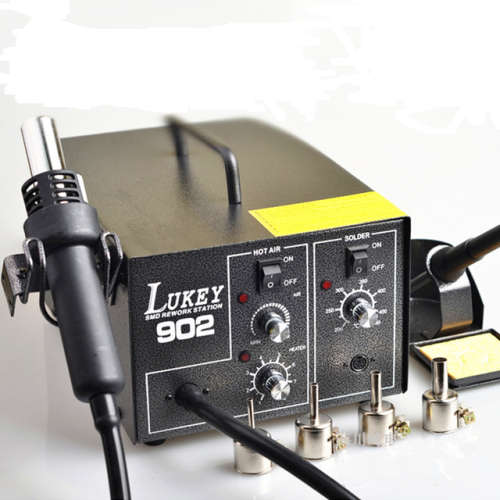

LUKEY 902 SMD REWORK STATION (Hot Air & Solder Station)

LUKEY 902 SMD REWORK STATION

This rework station power is automatically shut off should the unit exceed certain the temperature, once the temperature has dropped to a safety level power is automatically turn on. After adjusting the air flow and temperature control knob, wait for the temperature to stabilize foe a short period of time. Refer to the temperature distribution chart. For your references, we recommend you to adjust the temperature around 300 to 300ᵿC.

SPECIFICATION

Model: 902

STATION

Power consumption: 20W (when the power is switch is ¿off¿ 2W)

Pump: diaphragm pump

Capacity: 24L/min (max)

Outer dimensions: 187(W) x135135(H) x245(D) mm (7.36x5.31x9.64 in)

Weight: 4Kg (approx.) 8.81 lb

IRON

Power consumption: 100, 110, 220-240V/250W 120V/260W

Hot Air Temperature: 100 ̴420ᵿC (212-788ᵿF) (Use A1126)

Length: 196mm (7.71 in)

Weight: 120g (0.26 Ib)

CAUTION

When the power is on, the tip temperature is between 200ᵿC/392ᵿF and 480ᵿC/896ᵿF.

Since mishandling may lead to burns or fire, be sure to comply with following precautions.

• Do not touch the metallic parts near the tip.
• Do not use the product near flammable items.
• Advise other people in the work area that the unit can reach a very high temperature and should be considered potentially dangerous.
• Turn the power off while taking breaks and when finishing using the unit.
• Before replacing parts or storing the unit, turn the power off, and allow the unit to cool to room to temperature.

To prevent damage to the unit and ensure a safe working environment, be sure to comply with the following precautions.

• Do not use the unit for applications other soldering.
• Do not rap the soldering iron against the work bench to shake off residual solder, or otherwise subject the iron to severe shocks.
• Do not modify the unit.
• Use only the genuine replacement parts.
• Do not wet the unit or use the unit when your hands are wet.
• The soldering process will produce smoke, so make the area is well ventilated.
• While using the unit, don¿t do anything which may cause bodily harm or physical damage.
