Lukey 902 Smd Rework Station Hot Air & Solder Station

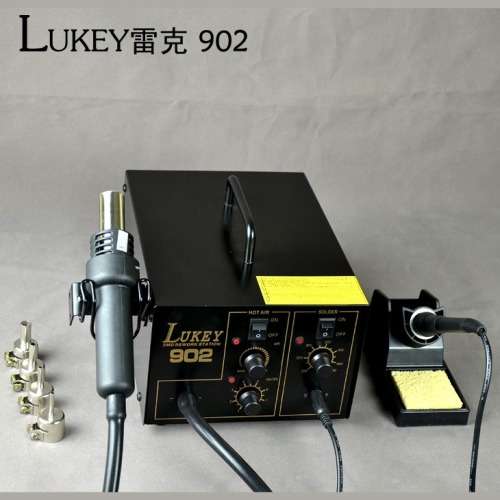

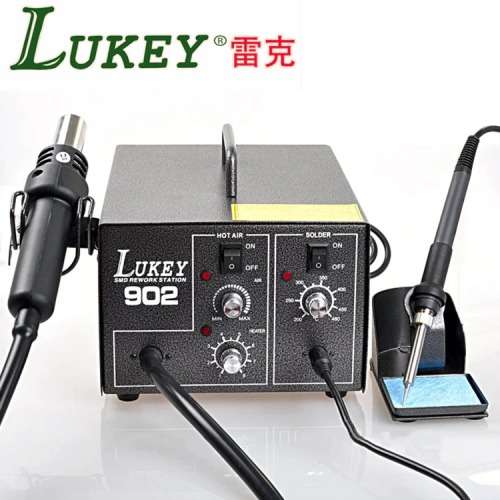

LUKEY 902 SMD REWORK STATION



This rework station power is automatically shut off should the unit exceed certain the temperature, once the temperature has dropped to a safety level power is automatically turn on. After adjusting the air flow and temperature control knob, wait for the temperature to stabilize foe a short period of time.



Refer to the temperature distribution chart. For your references, we recommend you to adjust the temperature around 300 to 300C.



SPECIFICATION



Model: 902 STATION

Power consumption: 20W (when the power is switch is off 2W)

Pump: diaphragm pumpCapacity: 24L/min (max)Outer dimensions: 187(W) x135135(H) x245(D) mm (7.36x5.31x9.64 in)Weight: 4Kg (approx.) 8.81 lb

IRONPower consumption: 100, 110, 220-240V/250W 120V/260W

Hot Air Temperature: 100 420C (212-788F) (Use A1126)

Length: 196mm (7.71 in)Weight: 120g (0.26 Ib) CAUTION When the power is on, the tip temperature is between 200C/392F and 480C/896F.



Since mishandling may lead to burns or fire, be sure to comply with following precautions.Do not touch the metallic parts near the tip.Do not use the product near flammable items.Advise other people in the work area that the unit can reach a very high temperature and should be considered potentially dangerous.Turn the power off while taking breaks and when finishing using the unit.Before replacing parts or storing the unit, turn the power off, and allow the unit to cool to room to temperature.
