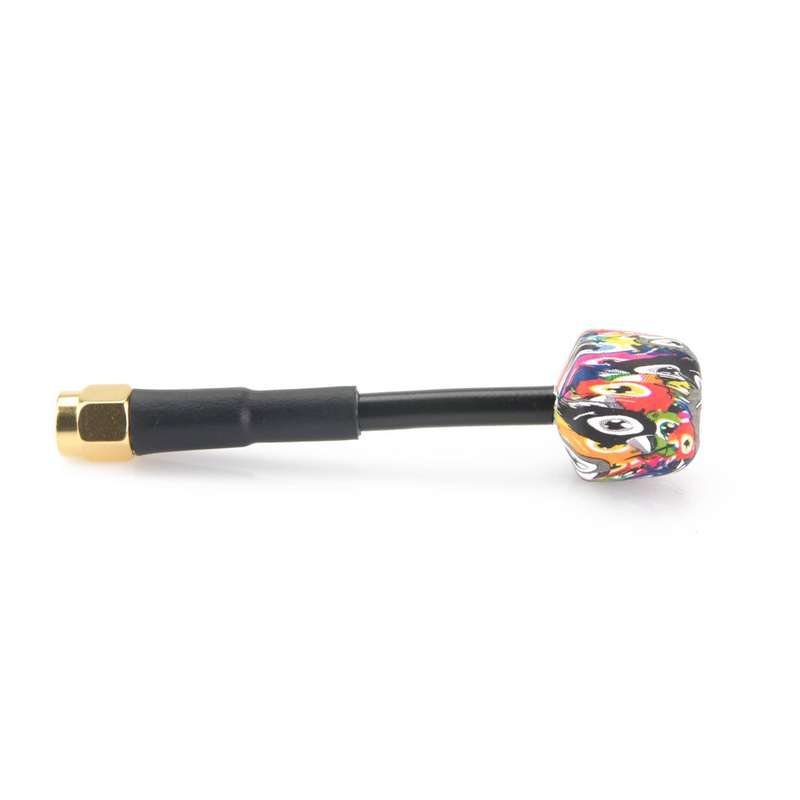

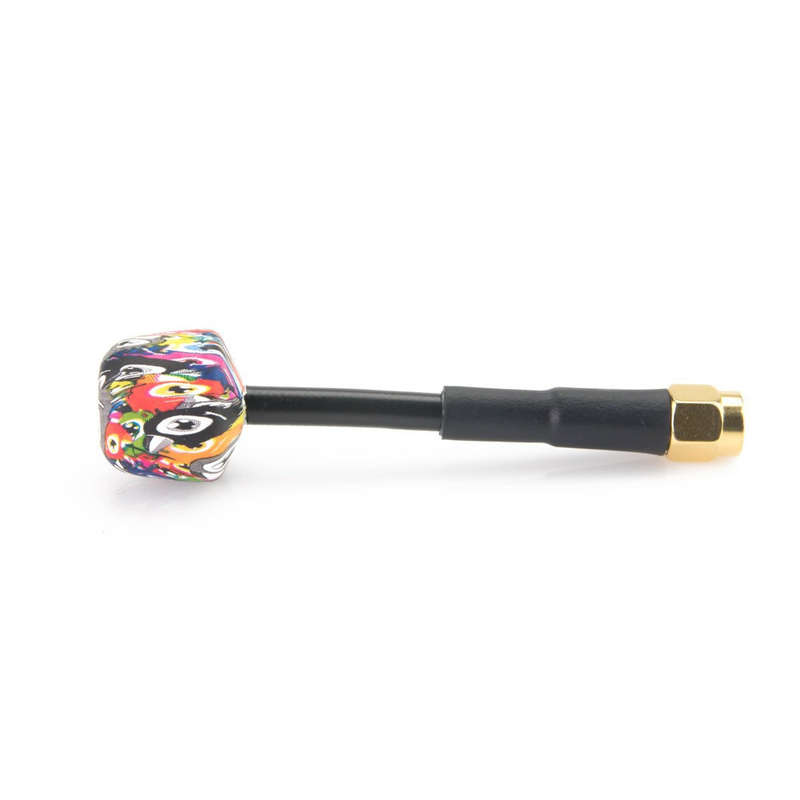

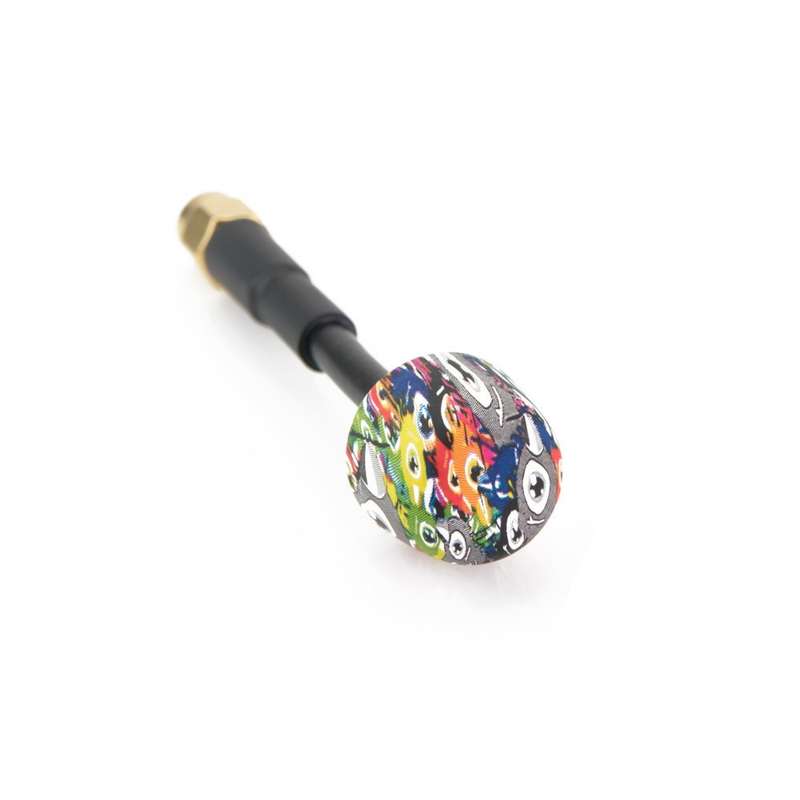

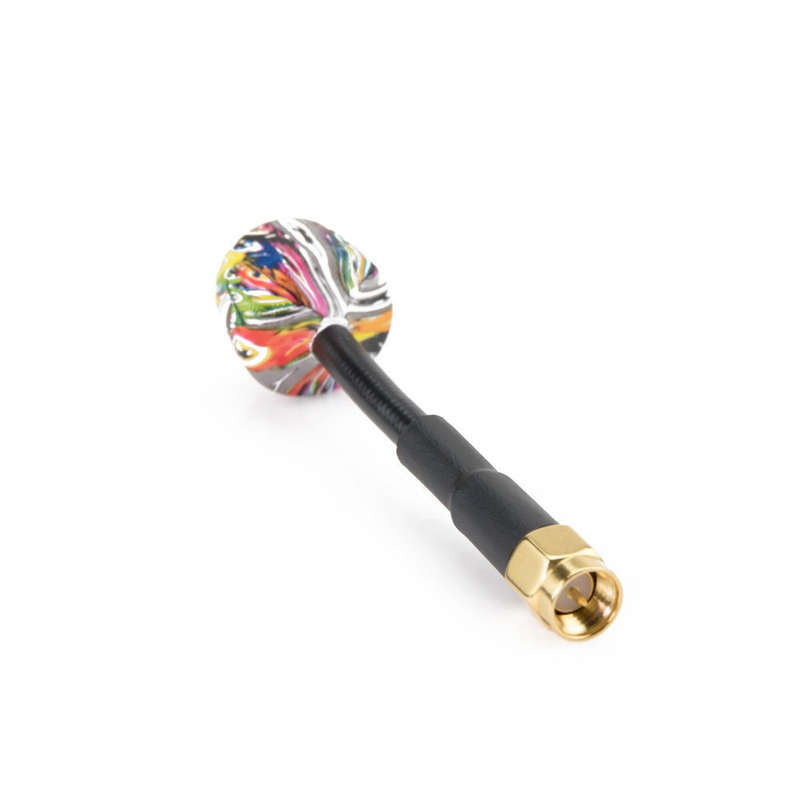

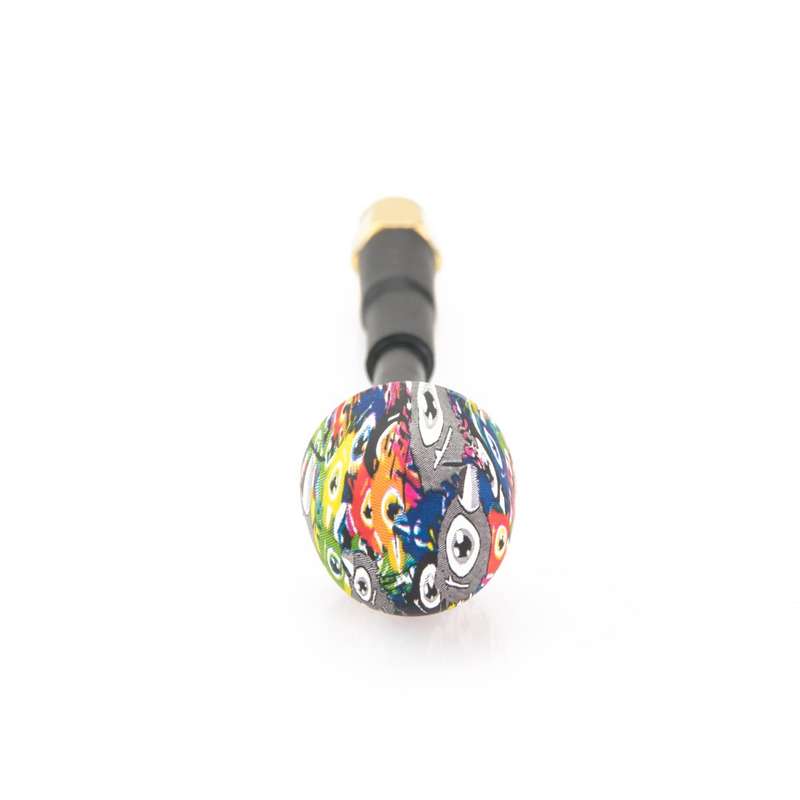

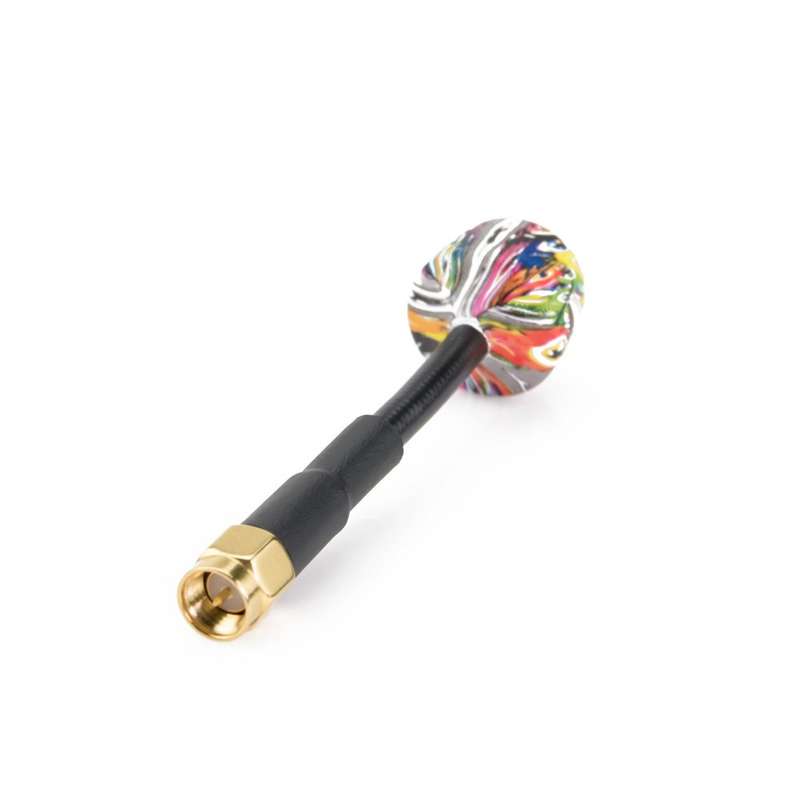

Lumenier AXII 2 SKITZO Hydro Dip SE 5.8GHz 2.2dBi Gain FPV Antenna LHCP With SMA Connector For RC Ra

Overview:

The AXII 2 performance you trust - but with a little personality! Lumenier has hydro-dipped the AXII 2 Antenna to take itself a little less seriously. Truly unique and one of a kind, you won`t find another antenna like it because there never has been another one like it!

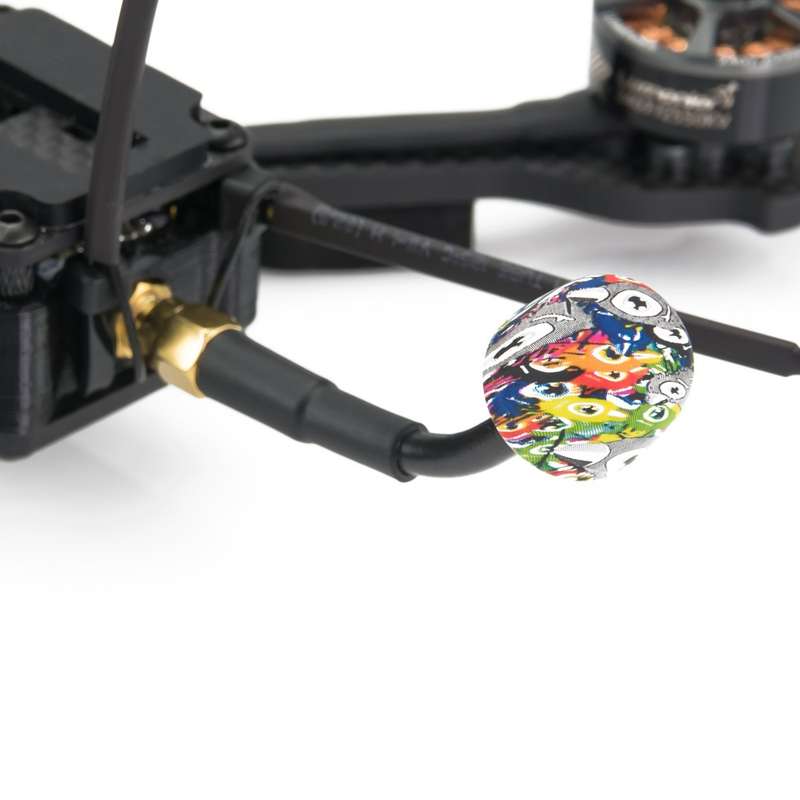

Use the SKITZO SE Antenna on to your QAV-R 2 SKITZO Edtion Frame for a perfectly wild combo!?

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2`s robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications:

Brand Name: Lumenier

Item Name: AXII 2 SKITZO Hydro Dip SE?

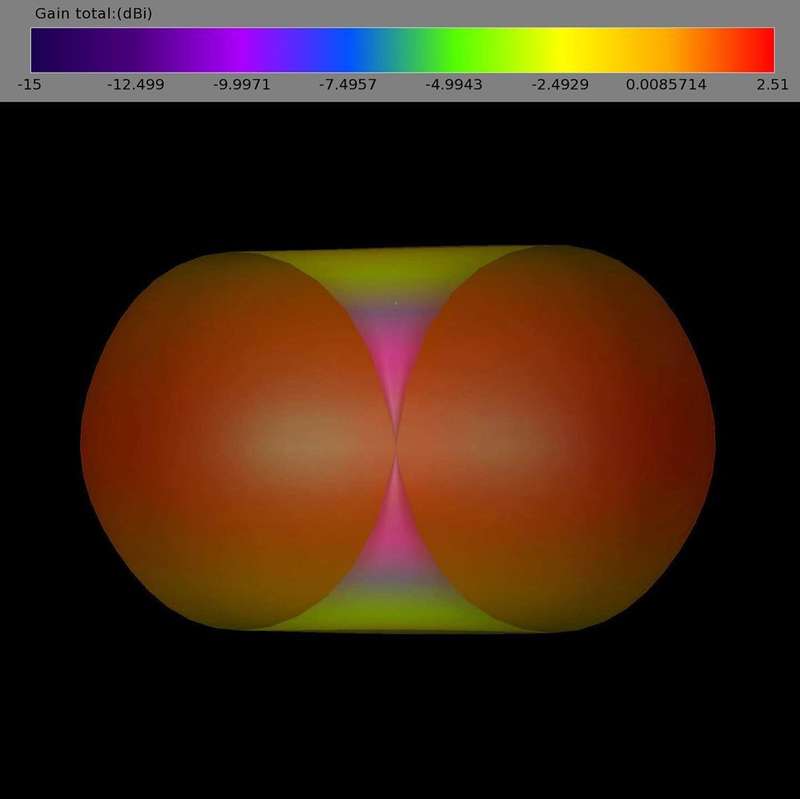

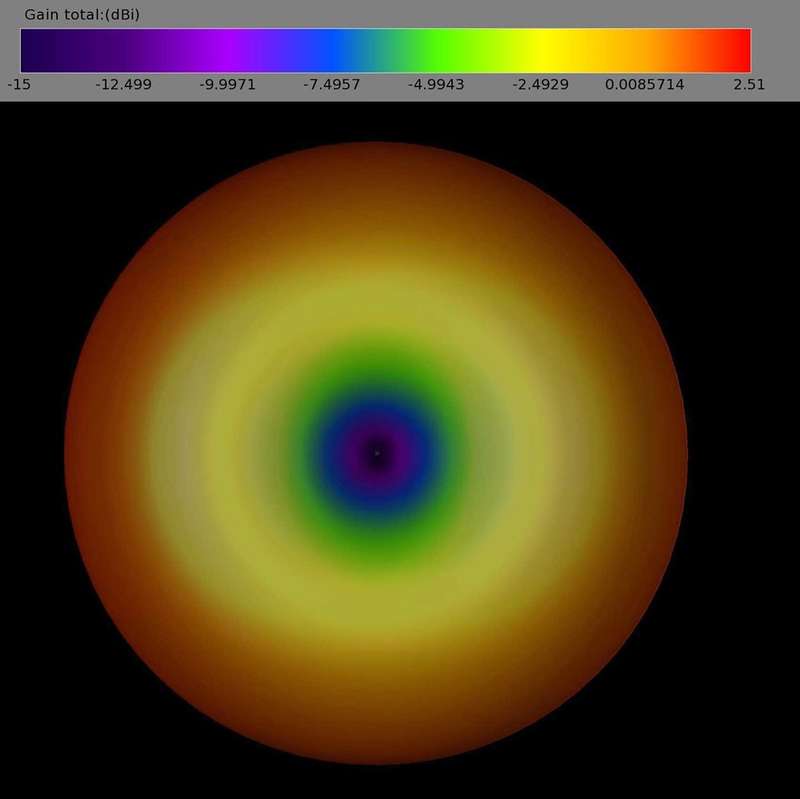

Gain: 2.2dbic

Axial Ratio: 1.0 (near perfect)

Bandwidth: 5.3GHz-6.2GHz

Radiation Efficiency: 98%

SWR: <=1.5:1

Weight: 6.7g

Size: 23.6mm x 17.5mm

Cable: None

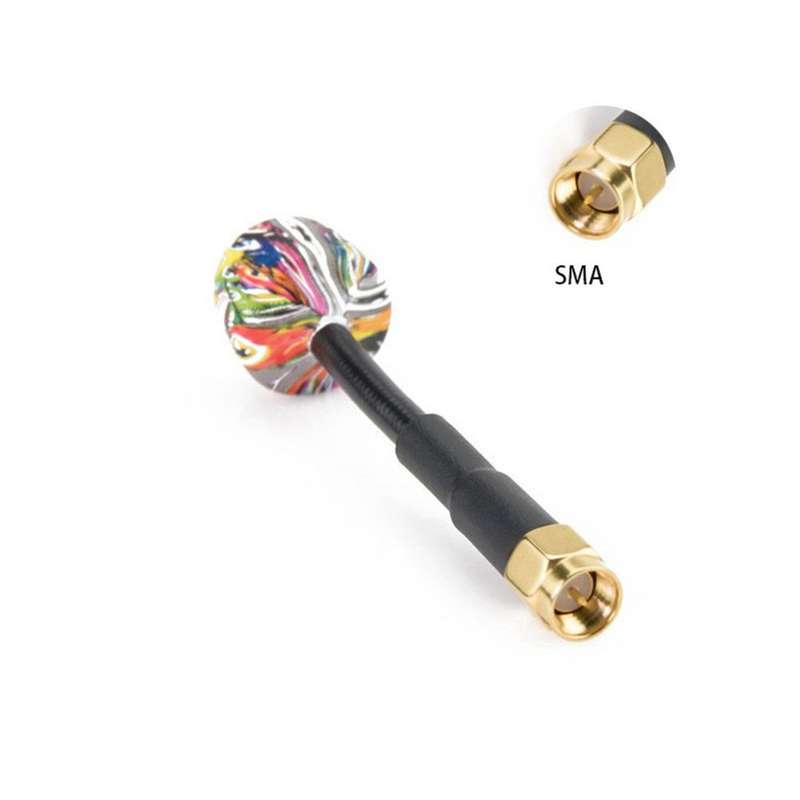

Connector: SMA

Polarization: Left Hand Circular (LHCP)

Features:

- Improved Range with a Higher Gain (2.2dBic Gain)

- Wide Bandwidth (5.3-6.2GHz)

- Clean Signal And Better Rejection to Interference

- Injection Molded Housing

- SKITZO Hydro Dip Design

- Virtually Perfect Axial Ratio

- Works great as both a transmitting or receiving antenna

- Compatible with other styles of 5.8GHz LHCP antennas

Package Included:

1x Antenna
