Lumenier AXII DUO Patch Antenna 5.8GHz

The Lumenier AXII DUO Patch Antenna (RHCP). A ultra-high gain, long range, circular polarized receiver antenna. Designed to provide long range 5.8Ghz video reception in a compact form factor.

The Lumenier AXII DUO 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for FPV. The Lumenier AXII DUO Patch has an industry leading 12.2 dBiC gain for long range flying and excellent penetration through objects compared to standard omni-directional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII DUO 5.8GHz Patch Antenna.

The AXII DUO builds on the same principles as the high performing AXII Patch Antenna, but the DUO doubles the receiver elements resulting in increased gain and performance. Each DUO contains 2x active elements installed with extreme precision ensuring optimal performance across the entire 5.8GHz band. With an incredible 280MHz wide bandwidth you'll get great signal no matter which channel you're on.

SPECIFICATIONS

• Frequency: 5.8GHz
• Bandwidth: 280 Mhz
• Gain: 12.2 dBiC
• Beam Width: 80° H. 40° V.
• Right Hand Circularly Polarized

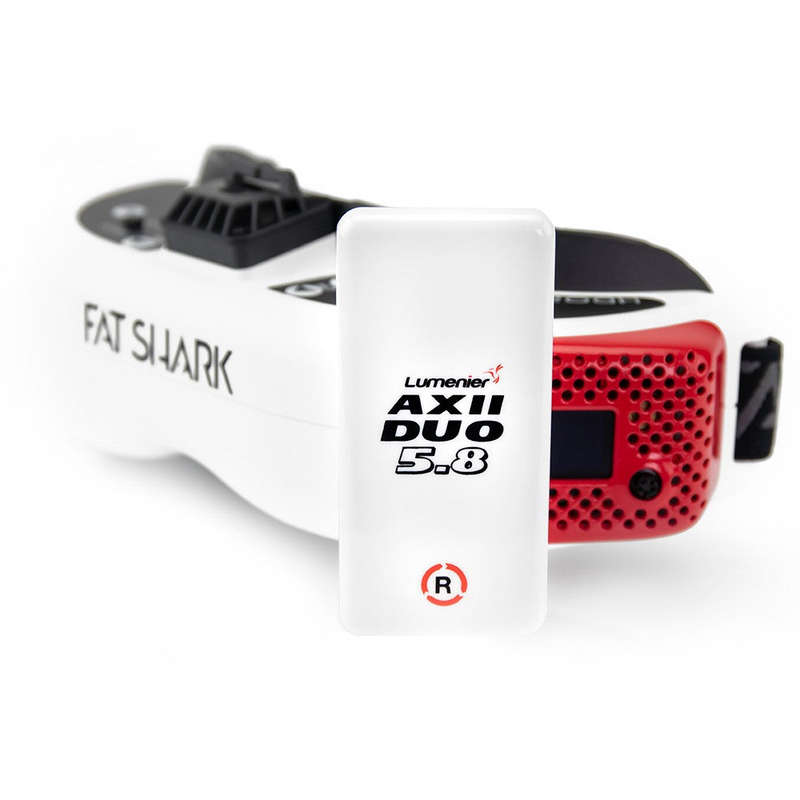

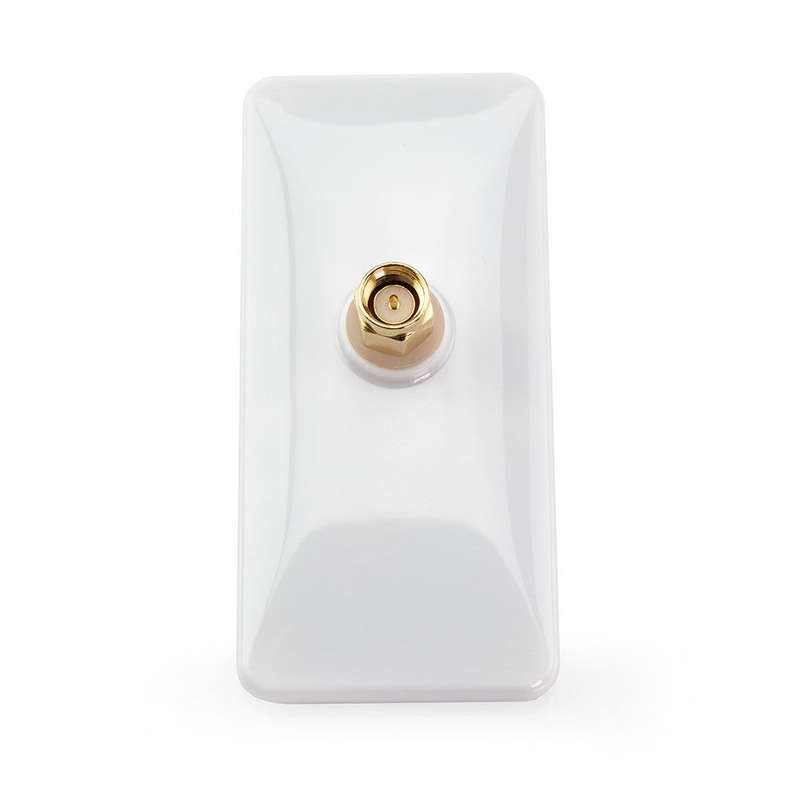

• SMA Connector (Fits Fat shark Goggles and others using SMA)
• Dimensions: 73mm x 35mm x 9mm (21mm with SMA)
• Weight: 18grams
