Features:

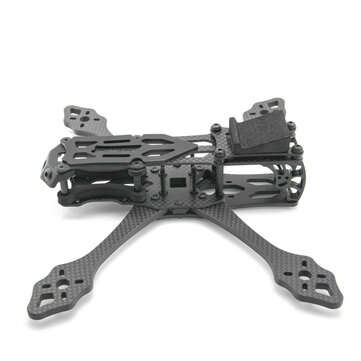

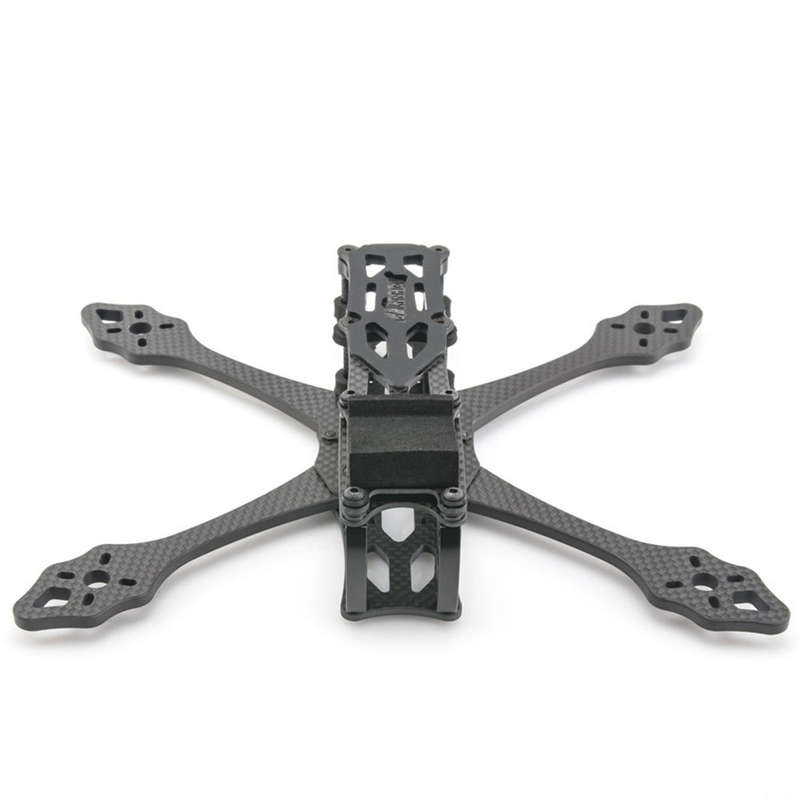

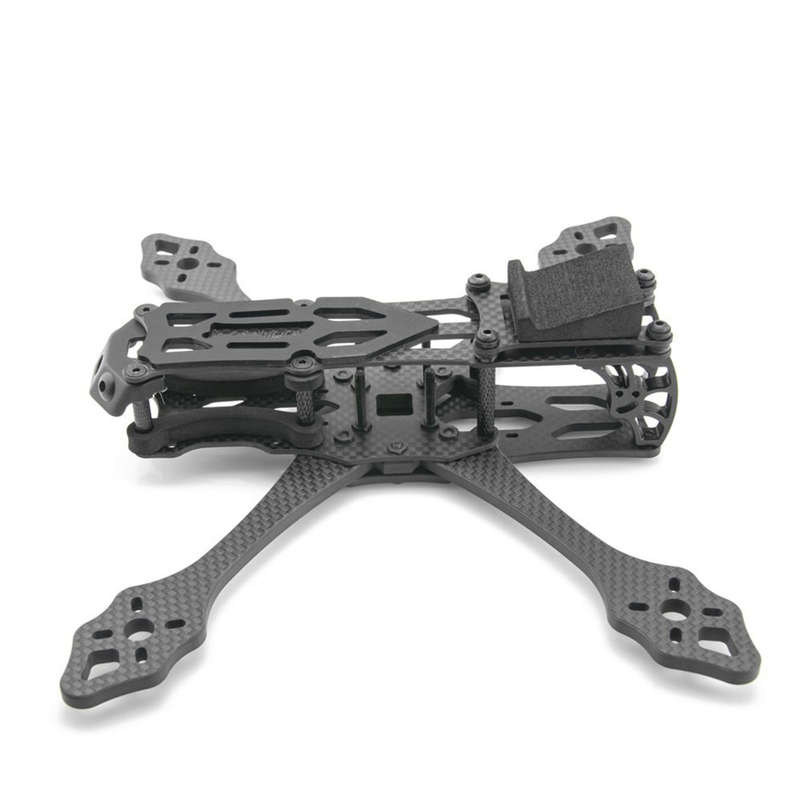

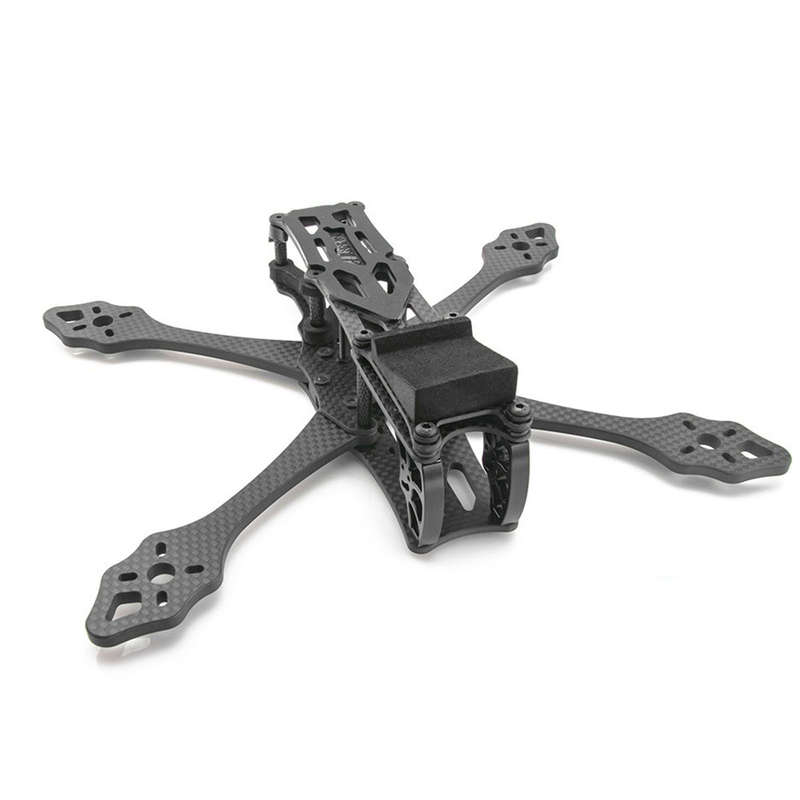

The Johnny FPV QAV-S is a 5-inch (6 and 7 arms available as well) freestyle and cinematic airframe that is ultra-durable, easy to work on, and locked-in to perform and provide the best flight possible. This Special Edition has many small details that were well-thought-out.

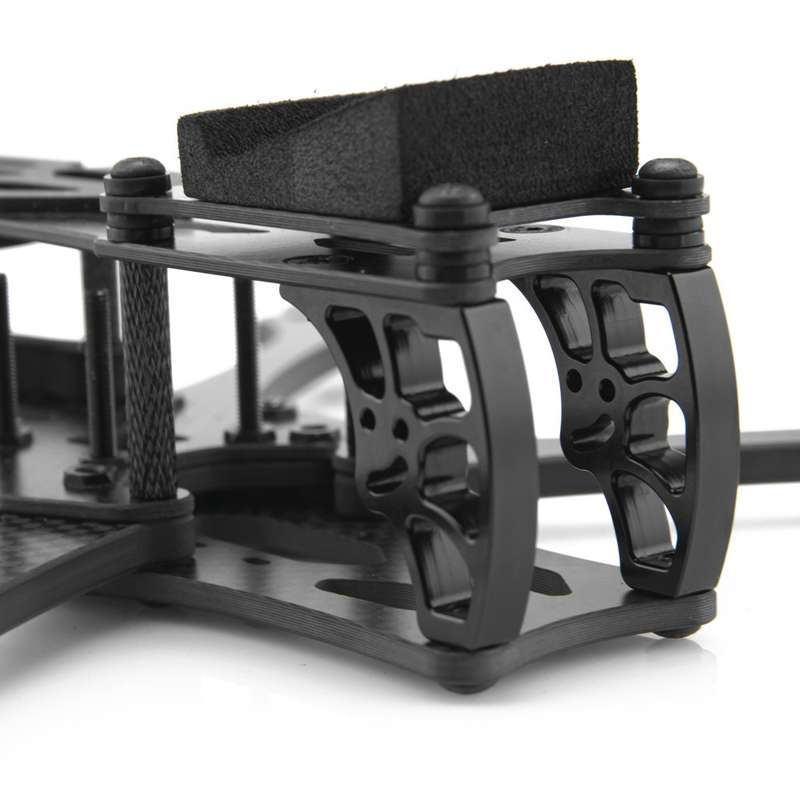

Premium Lumenier carbon fiber with finished and chamfered edges.FPV camera mounting solution from CNC anodized aluminum that can be reversed to give versatility for the different camera sizes (mini size / dji size / micro size)
HD camera vibration damping system with custom CNC aluminum spacers mounted on rubber grommets to achieve a vibration free platform for your HD recording camera.The QAV-S arm locking system includes a unique hinge + press nut that elegantly secures the arms while requiring only one screw to swap the arm (does not effect electronic`s stack, separate mounting system)
Split (2-piece) bottom plate that gives enough room for a small camera, while also reducing the rear deck space for components.An isolated 20x20 and 30x30 stack mounting that lets you take care of your electronics stack without the need to alter the frame structure and overall build

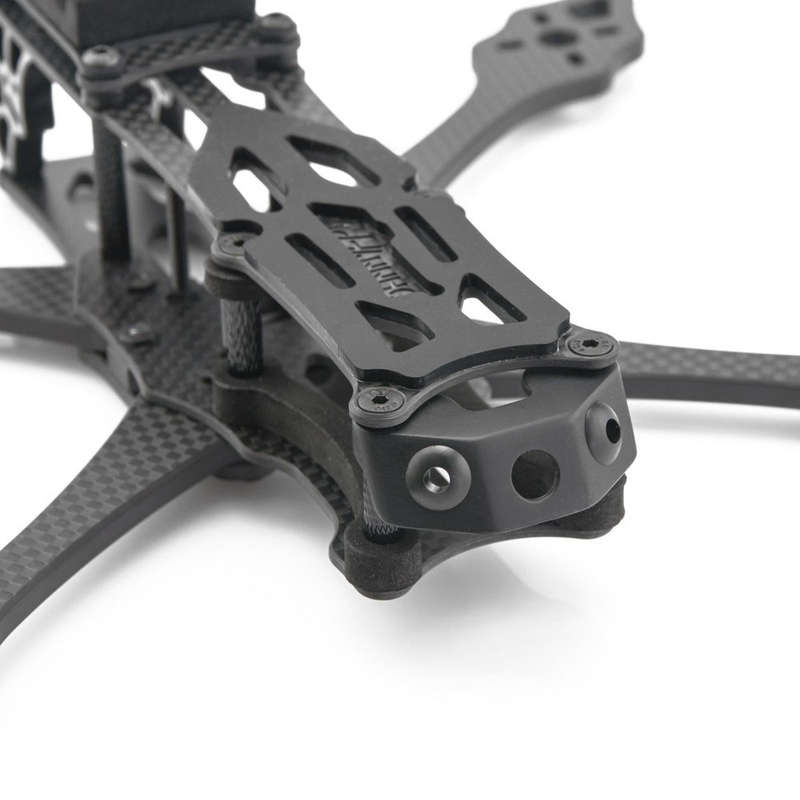

Dji compatibility, including a custom mounting solution that secures the Air Unit in place without any additional hardware. Antenna mounting versatility, allowing for both HD and Analog antenna mounting, as well as SMA extension mounting all on the same semi-flexible molded rubber mount. Dedicated space and tie down slots for capacitor and / or radio receiver behind FPV camera.
Description:
Item Name: ?QAV-S JohnnyFPV 5 Inch FPV Freestyle Frame Kit
Color: Black
Quantity: 1PC
Size: 5 Inch
Material
Premium Lumenier 3K Carbon Fiber (fully chamfered)
High Grade CNC Aluminum
12.9 Black Oxide Steel Hardware
Injection Molded Rubber
Molded Foam
Weight
129g Airframe + Hardware
139g Airframe + Hardware + HD Camera Plate / Foam

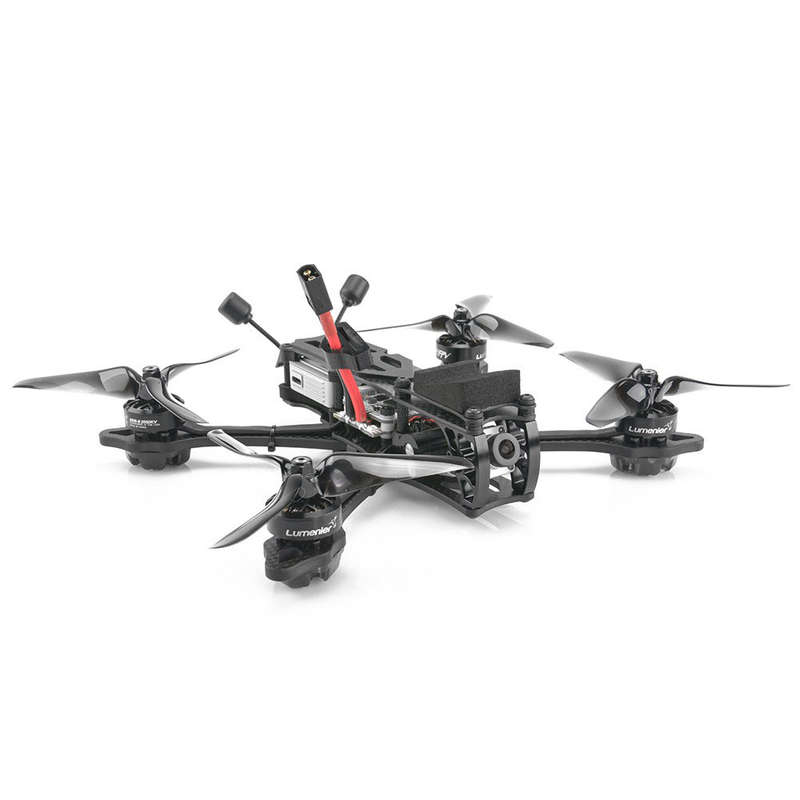

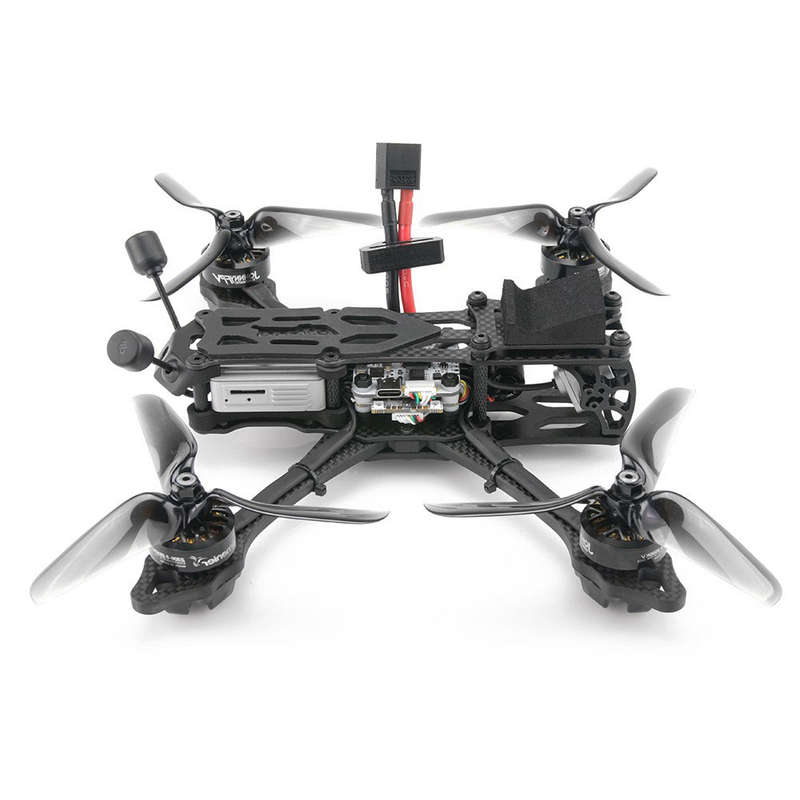

398g Typical RTF with DJI Air Unit (excluding battery)
Width
223mm Motor to Motor Diagonal?

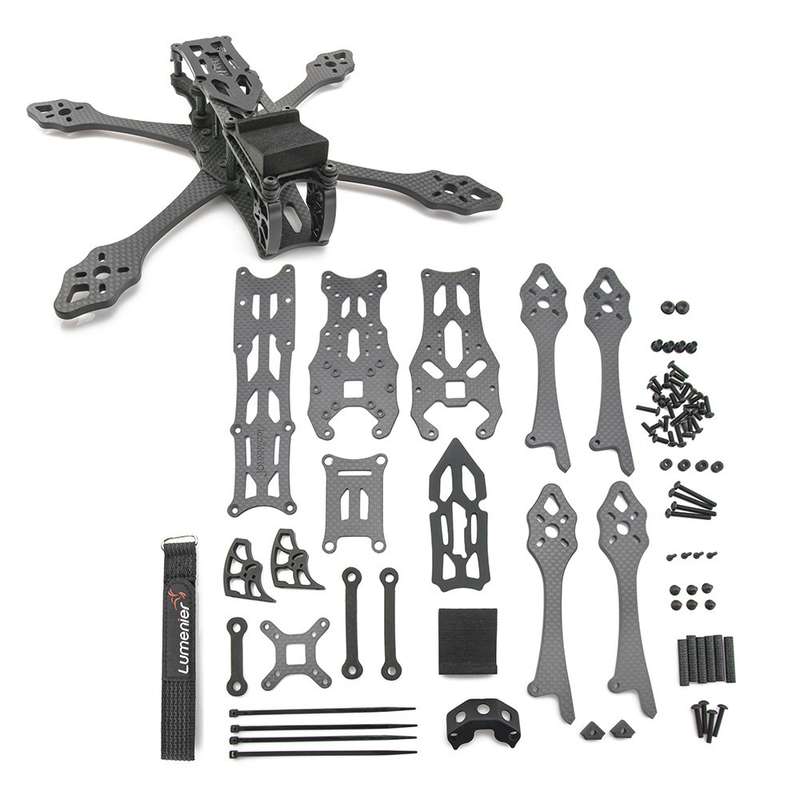

Package Included:
1x Lumenier QAV-S JohnnyFPV Special Edition 5 FPV Freestyle Drone Airframe Kit
4x 5mm carbon fiber arms
? ? ?2mm carbon fiber top plate
? ? ?2mm carbon fiber split-bottom plate top (with steel press fit nuts)
? ? ?3mm carbon fiber split-bottom plate bottom
2x black annodized aluminum camera side walls
1x Set of black steel screws and aluminum hardware including 25mm knurled spacers, cable ties, o-rings
1x Set of foam mounts for DJI Air Unit
1x Molded rubber antenna mount
1x No-slip silicone battery pad
1x Indestructibe Battery Strap (20x250mm)
4x FPVCrate Lume Skids (Smoke Grey)
