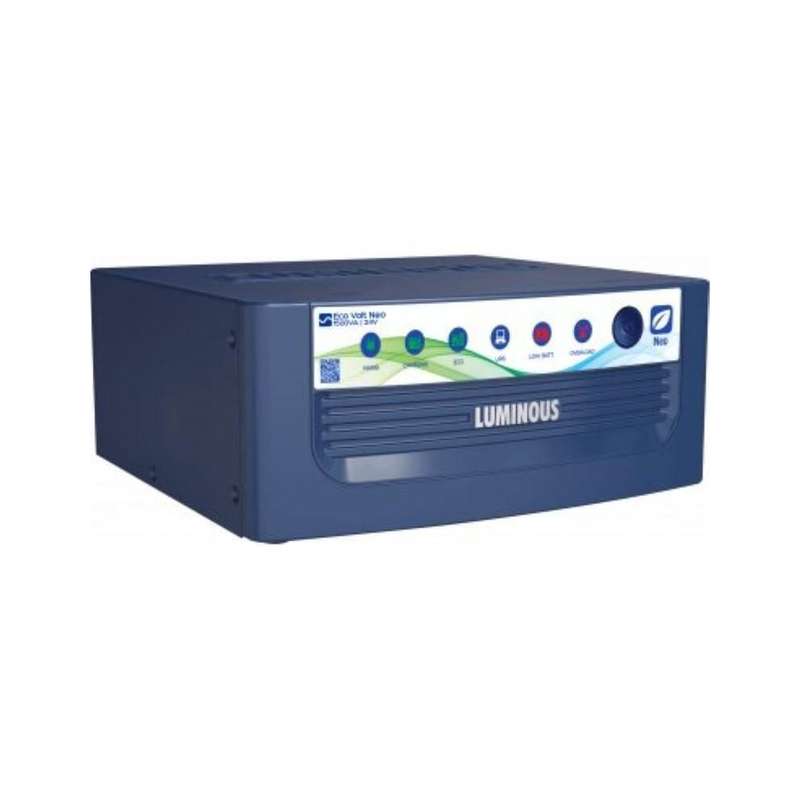

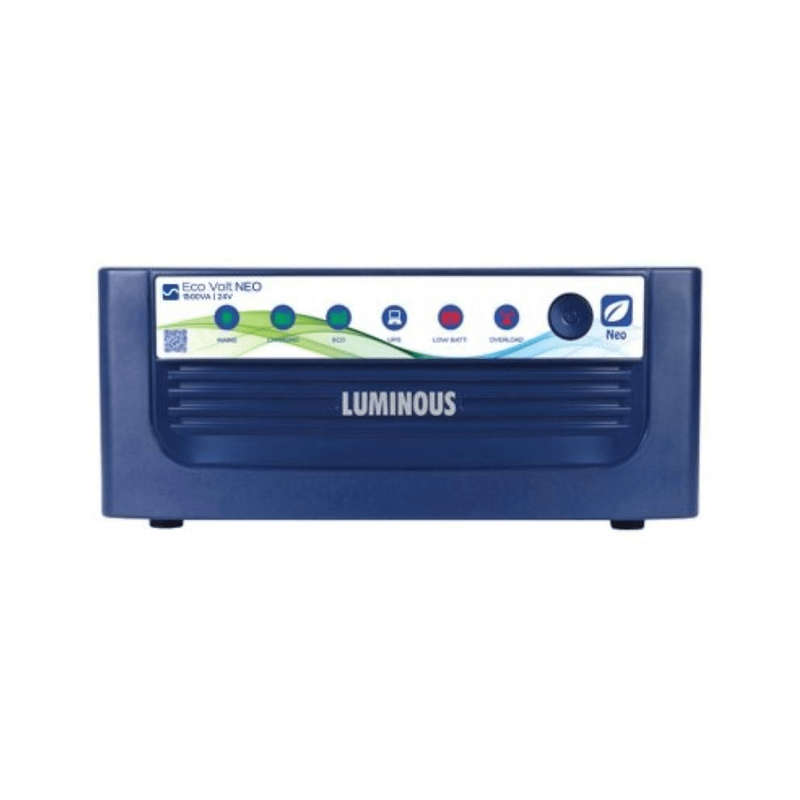

Luminous EcoVolt NEO 1600W 2000VA 24V Pure Sinewave Inverter

The Luminous EcoVolt Neo 2000VA, 24V inverter offers a max load of 1600W and a charging current of 21A. When purchasing this unit, 2 x 12V Inverlast Tall Tubular batteries, either 150Ah, 200Ah or 220Ah are required for operation. Both batteries must have the same Ah rating and be connected in series. This is a DIY unit as it has a standard connection for AC in and AC out.

Specifications:

Capacity: 1600W , 2000VA, 24

UPS Mode

• Rated voltage: 230V
• Undervoltage Cut Off: 180 ± 5V
• Undervoltage Restoration: 285 ± 10V
• Overvoltage Cut Off: 265 ± 5V
• Overvoltage Restoration: 255 ± 5V

ECO mode

• Undervoltage Cut Off: 85±10V
• Undervoltage Restoration: 105±10V
• Overvoltage Cut Off: 285±10V

Output

• Rated voltage (Normal Mode): (200 - 220)V AC ± 5%
• Rated voltage (Turbo Mode): (200 - 240)V AC ± 5%
• Voltage (Mains Mode): Same as input
• Frequency (UPS / ECO Mode): 50 ± 0.5Hz
• Load Performance Factor: 0.6 to 0.8#
• Frequency (Mains Mode): Same as input (45-55 Hz)
• Overload: > 105%
• Transfer Time(UPS Mode): < 20 ms

Battery

Battery Not Included

• Type/Voltage: 80Ah-200Ah - Tubular, Flat, SMF or Local Battery / 24V
• Number: 2
• Typical Recharge Time: 10-12 Hrs.
• Protection: Low Battery, Reverse Polarity
