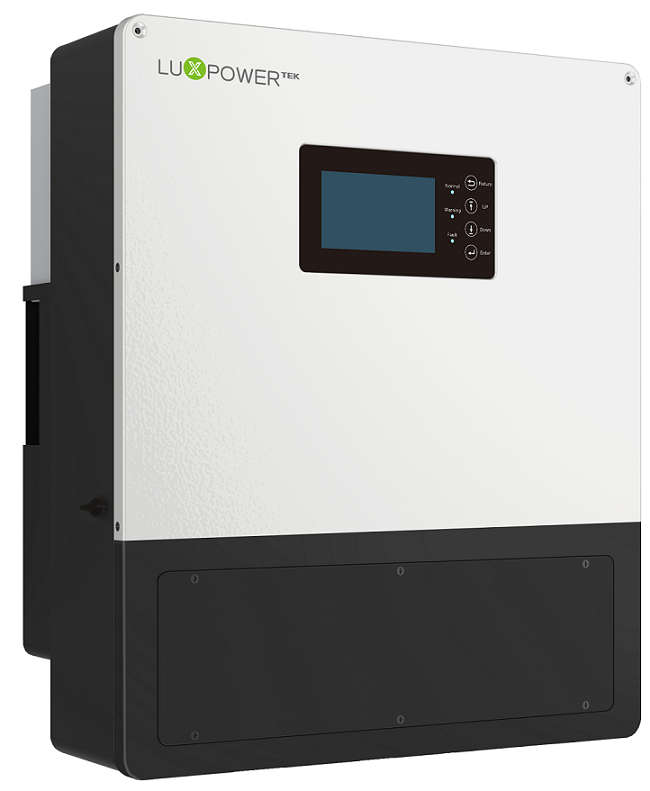

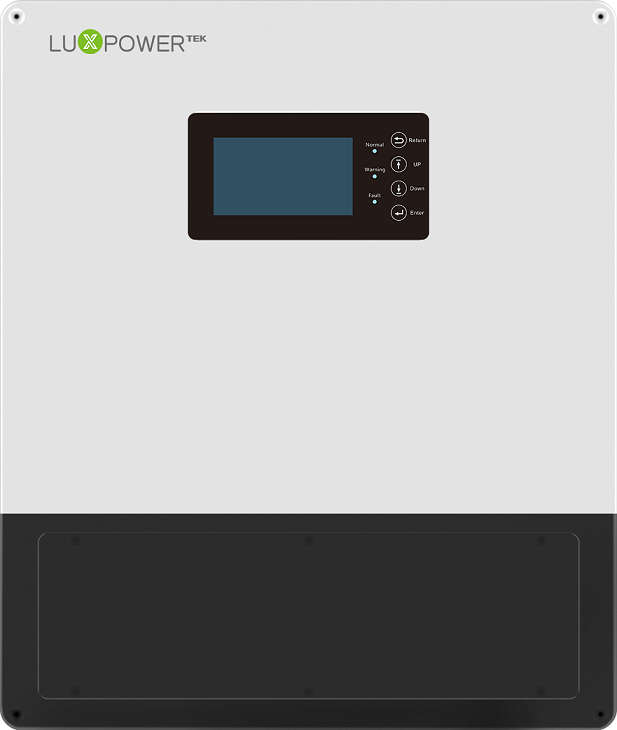

Lux Power 10KW Inverter Hybrid Single Phase (LUX-LXP-LB10K)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
DUE TO THE WEIGHT AND SIZE OF THE PRODUCTS WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA AND SIZE OF THE ORDER
Battery Parameters
• Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 210A
• Maximum Charge / Discharge Power: 10 000W
DC PV Input
• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 16 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 210VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)
AC Output (Grid)
• Nominal Power: 10 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 41.6A @ 240VAC
• Nominal AC Frequency: 50Hz / 60Hz
UPS Output (With Battery)
• UPS Max Output Power: 10 000W
• UPS Nominal Output Voltage: 240VAC
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 41.6A @ 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms
Environment Limit
• Ingress Protection: IP65
• Operating Temperature Range: -25C to +60C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN
DOWNLOAD BROCHURE HERE
| Weight | 40 kg |
|---|---|
| Dimensions | 65 44 22 cm |
