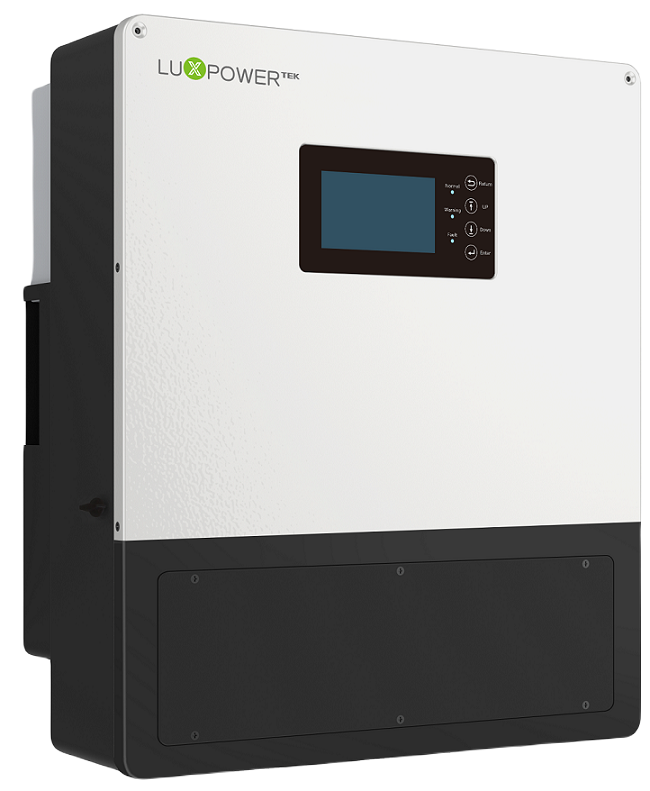

Lux Power: Inverter 5KW Off Grid (LUX-SNA5000WPV)

Lux Power: Inverter 5KW Off Grid (LUX-SNA5000WPV)

General Data
Intelligent Off Grid & Hybrid Modes
Supports Paralleling up to 50KW
Single Phase / Unbalanced Three Phase

Description

Output
Rated Power: 5000W
Parallel Supported: Yes
Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
Normal Output Frequency: 50Hz / 60Hz
Surge Power: 10000VA
Switch Time: 10ms
Wave Form: Pure Sine Wave

Battery
Battery Type Supported: Lithium / Lead-Acid
Normal Voltage: 51.2VDC / 48VDC
Maximum Charging Voltage: 59VDC

Solar
Maximum PV Power: 3200W / 3200W
Number of MPP Trackers: 2
Maximum PV Open Circuit Voltage: 480VDC
MPPT Voltage Range: 100VDC 385VDC
Maximum Solar Charge Current: 100A
Maximum Solar Input Current: 13A / 13A

Grid
Normal Voltage: 230VAC
AC Voltage Range: 110VAC-280VAC
Maximum Charge Current: 60A
Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit
Ingress Protection: IP20
Relative Humidity: 5% to 95% (Non Condensing)
Operating Temperature Range: 0C to +50C
Storage Temperature: -15C to +60C
Communication: CAN / RS485/ WIFI / GPRS

Get Datasheet here
