LUXPOWER SNA5000 WPV 5KW 48V+WIFI DONGLE

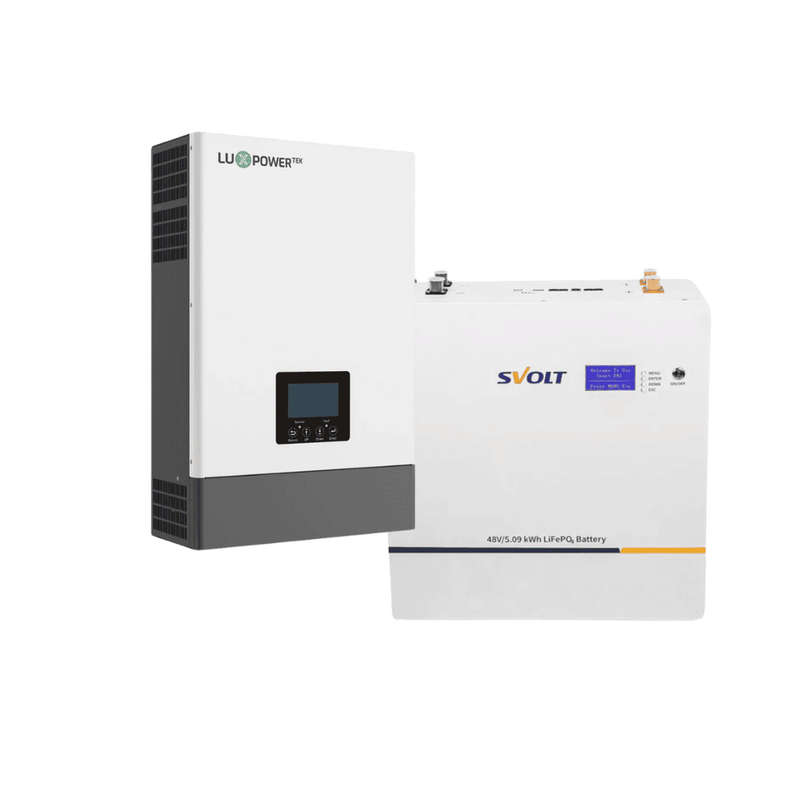

LuxPower 5KVA / 5000W Hybrid Inverter + 5.43kWh SVOLT Lithium Battery | Advanced Solar Power Solution Combo

Product Overview:

The LuxPower SNA5000 WPV 5KW Hybrid Inverter, paired with the 5.43kWh SVOLT Lithium Battery, provides a high-performance off-grid and hybrid power solution for homes and businesses. Featuring dual MPPT solar charge controllers, WiFi connectivity, and intelligent battery management, this system delivers optimized solar energy conversion, seamless power backup, and long-term efficiency.

Ideal for residential, commercial, and industrial applications, this system ensures energy independence, reduced electricity costs, and uninterrupted power supply.

Key Features:

LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV)

• Pure Sine Wave Output: Stable power for sensitive electronics.
• Dual MPPT Controllers:
  • Wide PV Input Voltage Range: 100V - 385V DC
  • Max PV Input Power: 6,000W
  • Max PV Open Circuit Voltage: 480V DC
  • MPPT Efficiency: >98%
• Battery-Optional Operation:
  • Functions with or without a battery for maximum flexibility.
• Smart Power Management:
  • Supports solar, battery, and grid power modes.
  • Independent generator interface for additional backup power.
• Parallel Scalability:
  • Connect up to 10 inverters for expanded capacity.
• Remote Monitoring & Control:
  • WiFi & GPRS connectivity for system monitoring via mobile app.
• Broad Battery Compatibility:
  • Compatible with top lithium battery brands, including BYD, Dyness, Hubble, PylonTech, Shoto, and more.

Technical Specifications:

LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV)

• Inverter Type: Hybrid Off-Grid
• Rated Power Output: 5,000W / 5KVA
• Surge Power: 10,000VA
• Waveform: Pure Sine Wave
• Efficiency (Peak): >98%
• Battery Voltage: 48V DC
• Battery Compatibility: Lithium-Ion & Lead-Acid
• AC Voltage Regulation: 230V / 240V AC
• AC Input Voltage Range: 110V - 280V AC
• AC Charger Current: 60A
• Transfer Time: 10ms
• Solar Charge Controller:
  • Max PV Input Power: 6,000W
  • MPPT Voltage Range: 100V - 385V DC
  • Max PV Open Circuit Voltage: 480V DC
  • Max Solar Charge Current: 100A
• Parallel Capability: Supports up to 10 units
• Monitoring & Communication: Wi-Fi & GPRS included
• Protection Rating: IP20 (Indoor Use Only)
• Size: 438 x 295 x 105 mm
• Weight: 9 kg
• Warranty: 2 Years

SVOLT 5.43kWh Lithium Battery (51.2V 106Ah) Features:

• High-Capacity Storage: 5.43kWh energy with 90% depth of discharge (DOD).
• Extended Cycle Life: 6,000+ charge cycles for a 10+ year lifespan.
• Scalable Energy System: Parallel up to 16 battery units for increased capacity.
• Wall-Mount & Rack-Mount Compatibility: Space-efficient installation.
• Smart Battery Management System (BMS):
  • Prevents overcharging, over-discharging, and overheating.
  • Integrates with leading inverters for optimized performance.
• Broad Compatibility: Works with Growatt, Goodwe, Victron, Deye, LuxPower, and more.

Technical Specifications:

SVOLT 5.43kWh Lithium Battery (51.2V 106Ah)

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Total Energy Capacity: 5.43kWh
• Usable Capacity: 4.9kWh
• Depth of Discharge (DOD): 90%
• Cycle Life: 6,000 cycles @ 25°C
• Nominal Capacity: 106Ah
• Charge Voltage: 56.0V - 58.4V
• Discharge Voltage: 43.2V - 57.6V
• Max Continuous Charge/Discharge Current: 100A
• Operating Temperature: -20°C to 70°C
• Installation: Wall-Mount or Rack-Mount
• Communication Protocol: CAN / RS485
• Battery Warranty: 5 Years

What's Included in the Package:

1x LuxPower 5KVA / 5000W Hybrid Inverter (SNA5000 WPV) | Wi-Fi Enabled
1x SVOLT 5.43kWh Lithium Battery (51.2V 106Ah LiFePO4) | Wall-Mount
1x Set of Battery Cables & Mounts
1x User Manual
1x Ethernet Communication Cable

Installation & Warranty Guidelines:

• Installation Requirement: Must be installed by a certified electrician.
• Certificate of Compliance (COC): Required for warranty validation.
• Warranty Policy:
  • Inverter Warranty: 2 Years
  • Battery Warranty: 5 Years
  • Installation Warranty: COC and professional installation proof required.
• Warranty Claims:
  • Must include inst...
