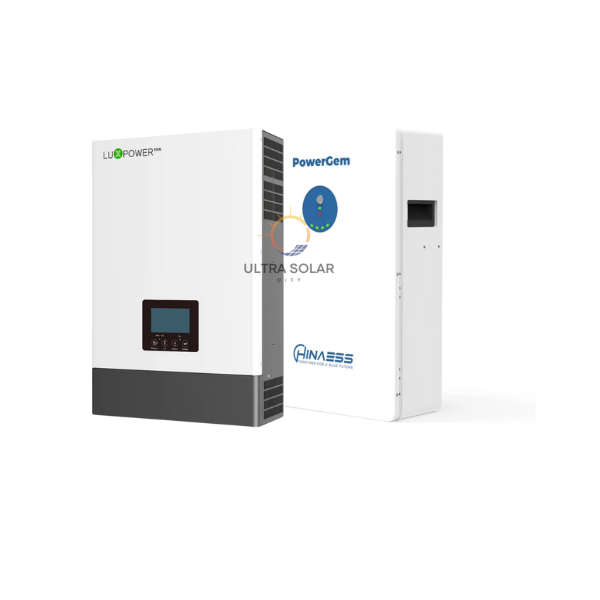

Luxpower and Hina ESS PowerGem Lithium Ion Battery 5.12KWH 51.2V 100Ah Combo
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).
General:
Dimensions(W/H/D): 330x504x135mm.
Weight14Kg.
Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
Hina ESS PowerGem 5.12kWh Lithium Ion Battery (HinaESS-PG) High-Performance Solar Energy Storage
Upgrade your solar energy system with the Hina ESS PowerGem 5.12kWh Lithium Ion Battery, designed for efficiency, reliability, and long-lasting power. With a 51.2V 100Ah configuration, this advanced energy storage unit delivers consistent performance for residential and commercial solar setups. Featuring LiFePO4 technology, it offers a long cycle life, robust safety features, and seamless compatibility with leading inverter brands.
Product Features:
- 10-year warranty
- Ultra-safe LFP material
- Elegant enclosure design
- Floor-standing / wall-mounting
- Short circuit protection
- Remote monitoring
- Flexible remote upgrade
- Auto-addressing for master / slaves set up
- Wide-range inverter compatibility
- Parallel up to 32 modules
- 1C rate continuous charge/discharge
- Multi-protection to avoid over discharge
- Smart BMS management for longer lifespan
- Active balancing charging, low self-consumption
Specifications:
- Cell Type: LFP
- Rated Power: 5.12kWh
- Rated Capacity: 100Ah
- Rated Voltage: 51.2V
- Charge Voltage: 56.5V
- Max Charge/Discharge Current: 100A
- Discharge Peak Current: 105A / 15s, 120A / 0.5s
- Parallel: This product can parallel up to 32 units without requiring an extra device. If one of the units becomes disconnected or reconnects, it will not disrupt the functioning of the system.
- IP Level: IP20
- Dimension: 640*428*166mm
- Weight: 58Kg
- Warranty *: 10 year, 6000 cycles (* @ 25, 90% Dod, 0.5C testing condition)
- Protection: Over charge/discharge/current/voltage/temperature protection Short circuit protection, Reverse connection protection Charge balance, Low SOC protection
