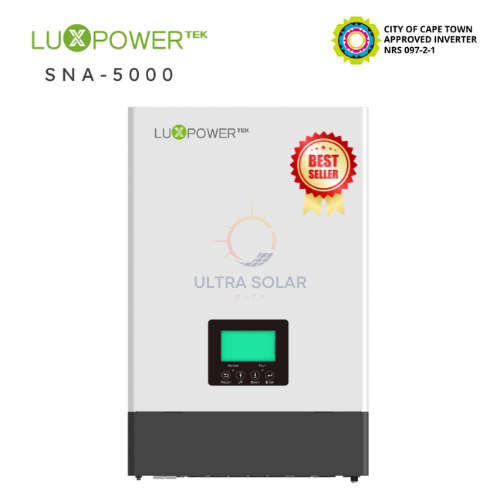

The Cape Town City Approved Luxpower 5kW Off-Grid Inverter SNA 5000 is a versatile, advanced solar inverter designed for off-grid and hybrid systems. It offers several key features that make it a powerful and efficient choice for residential and commercial applications.
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).
General:
Dimensions(W/H/D): 330x504x135mm.
Weight14Kg.
Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
