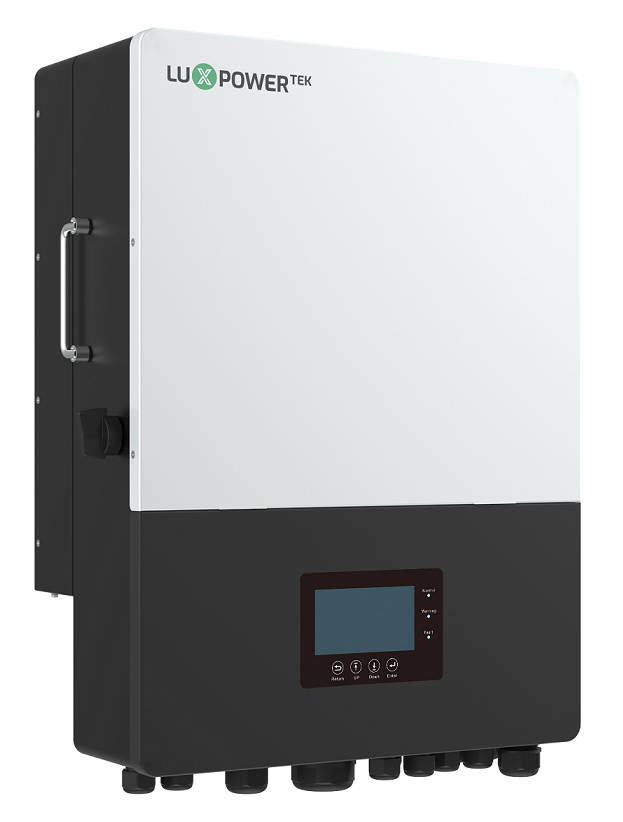

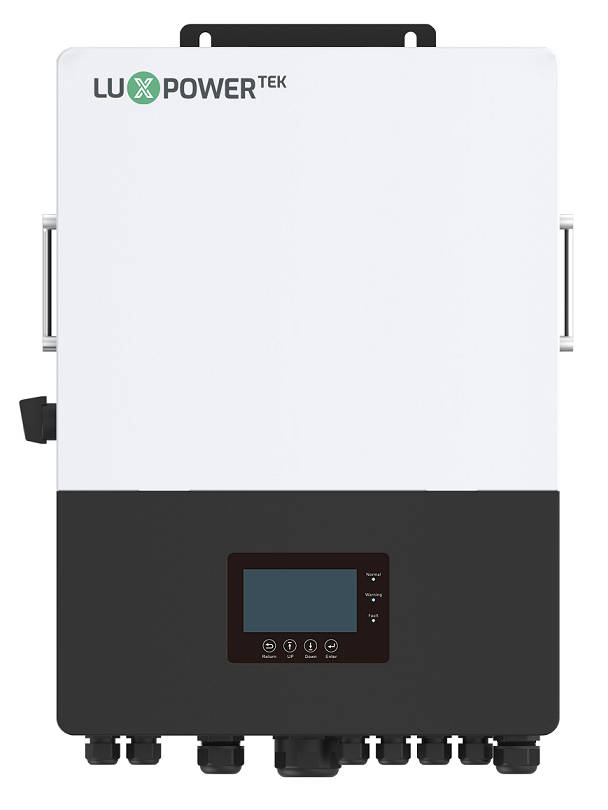

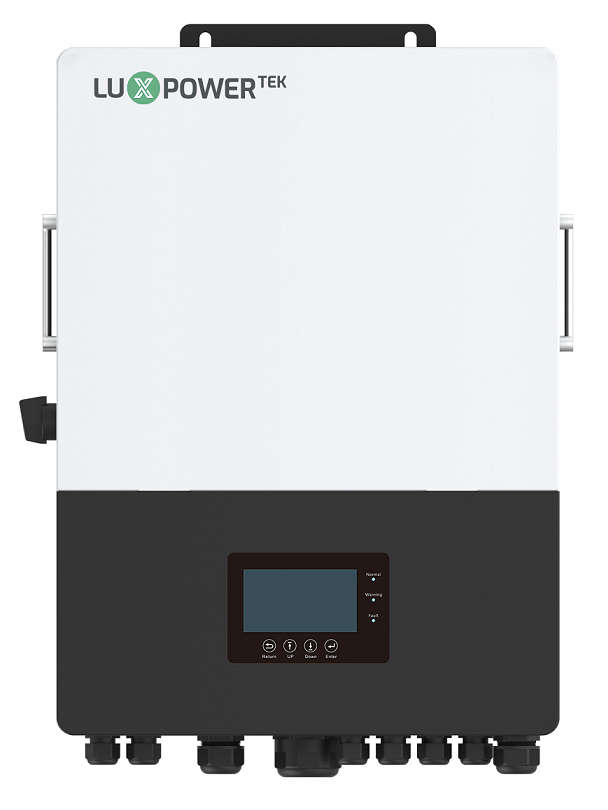

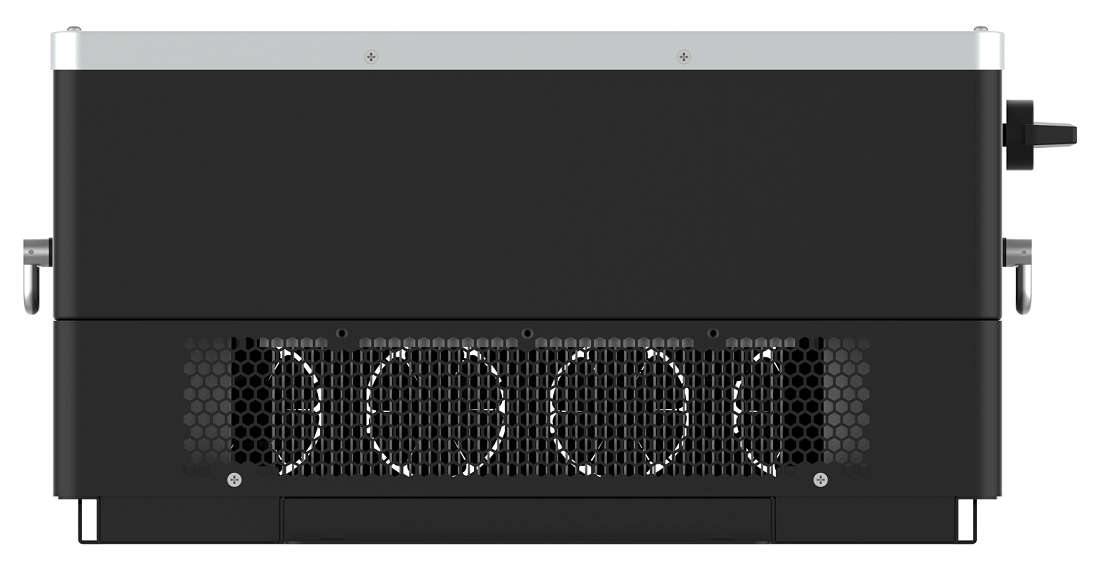

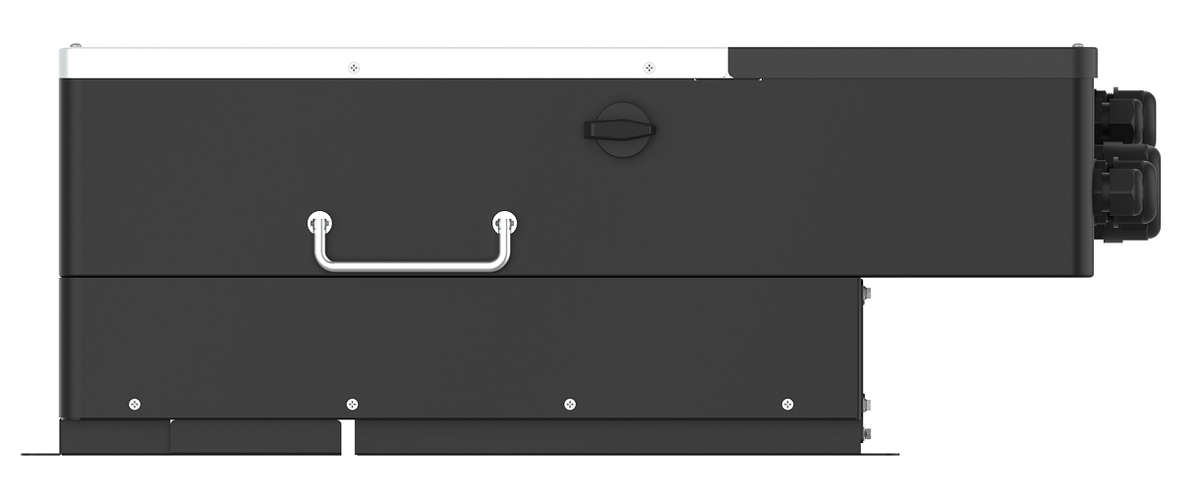

LuxPower Hybrid Inverter 12kW 48V LXP12K

22 available / new
Indicative market price: R54,000.00
R39,257.00
27% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection

Product details

Condition
New
Location
South Africa
Product code
791479
Bob Shop ID
619642269

DUE TO THE WEIGHT AND SIZE OF THE PRODUCTS WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA AND SIZE OF THE ORDER





DOWNLOAD THE BROCHURE HERE



Battery Parameters
• Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 250A
• Maximum Charge / Discharge Power: 12 000W

DC PV Input
• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 18 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 230VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)
• Nominal Power: 12 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 50A 240VAC
• Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)
• UPS Max Output Power: 12 000W
• UPS Nominal Output Voltage: 240VAC
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 50A 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms

Environment Limit
• Ingress Protection: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN

Weight42 kg
Dimensions67 × 49 × 26.5 cm
