LUXPOWER SNA5000 48v 5KW OFF-GRID INVERTER+WIFI DONGLE - DAMAGED

Faulty Unit. Throws lithium battery in protection mode. DO not know what is wrong. It can still run on solar mode with solar panels. comes with wifi dongle.

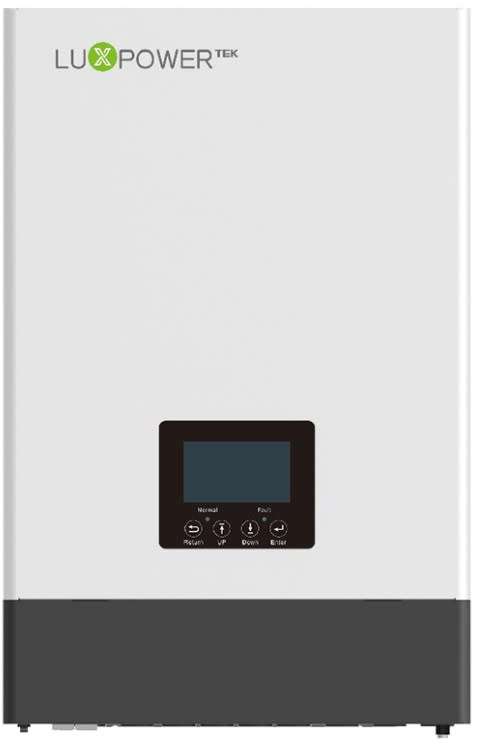

LUXPOWER SNA5000 WPV 5KW 48V

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT's and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.

Key Features

• Intelligent Off-Grid & Hybrid modes
• PV and AC Power can power loads simultaneously
• 2 x MPPT's with wide input voltage range.
• BMS communication to most leading brands of Batteries (See List)
• Free monitoring via app and remote upgrades.
• Single or unbalanced three phase
• Parallel up to 10 units.
• Independent generator interface.

• Model: SNA 5000
  Battery voltage: 48VDC.

  Output:
  Rated power: 5000W/5000VA.
  Parallel capacity: YES.
  Normal output voltage: 230/240, Split phase 220/110 Vac.
  Normal output frequency: 50/60Hz.
  Surge power: 10000VA.
  Switch time: 10ms.
  Waveform: Pure sine wave.

  Battery:
  Battery Type: Lithium/Lead-Acid.
  Normal Voltage: 51.2V/48V.
  Max. Charge Voltage: 59V.

  Solar:
  Max. Recommended PV Power: 3200W/3200W.
  MPPT Tracker: 2.
  Max. PV Open Circuit Voltage: 480Vdc.
  MPPT Voltage Range: 100-385Vdc.
  Max. Solar Charge Current: 100A.
  Max. Solar Input Current: 13A/13A.
  Max. MPPT Eiciency: >98%.
  Parallel MPPT Charger: YES.

  Grid:
  Normal Voltage: 230Vac.
  AC Voltage Range: 110-280Vac.
  Max. Charge Current: 60A.
  Frequency Range: 50/60Hz (Auto Sensing).
