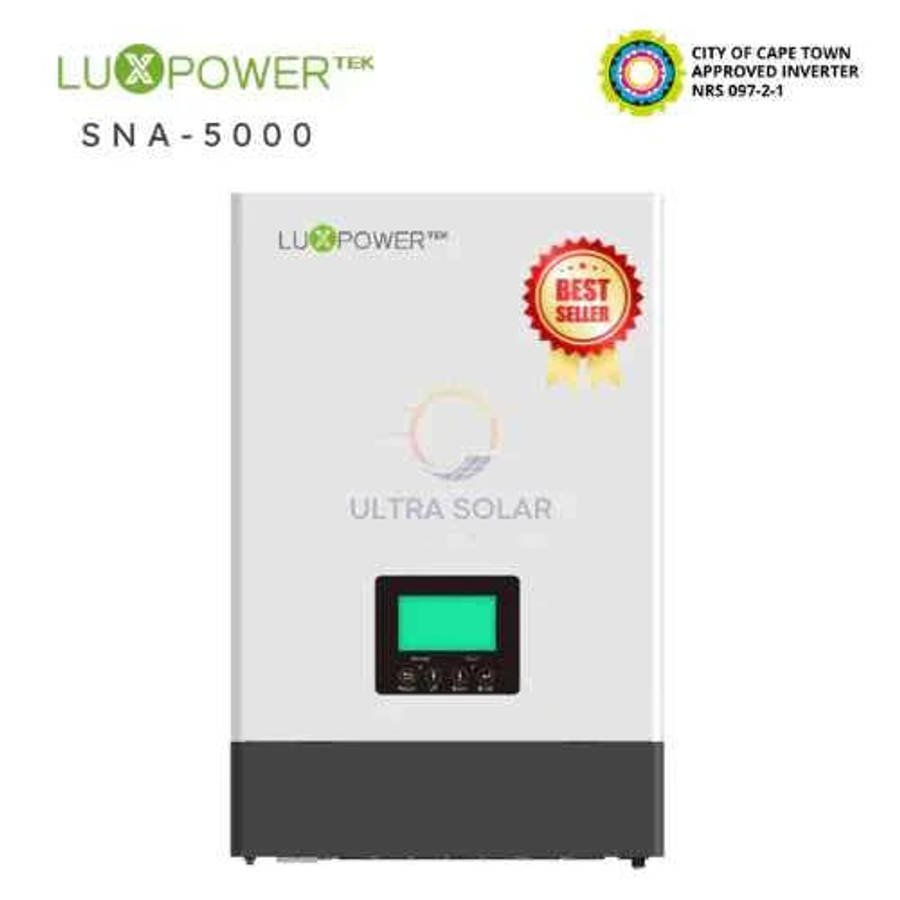

LUXPOWER SNA5000 WPV 5KW 48V
SNA 5kw new version has finally released, this new version will include external CT, NPE Bond, Ac coupling &smart load function, serial number starts
from 51231V0001.
Enjoy the new SNA 5kw!
CONTACT DIRECTLY FOR BETTER PRICES
The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT's and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.
tax will be calculated at checkout
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPT's with wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
Battery Compatability list
- BYD
- Dyness
- Hubble
- Lithium Batteries SA
- PylonTech
- Shoto
- Revo.
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).
General:
Dimensions(W/H/D): 330x504x135mm.
Weight14Kg.
Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.
Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
