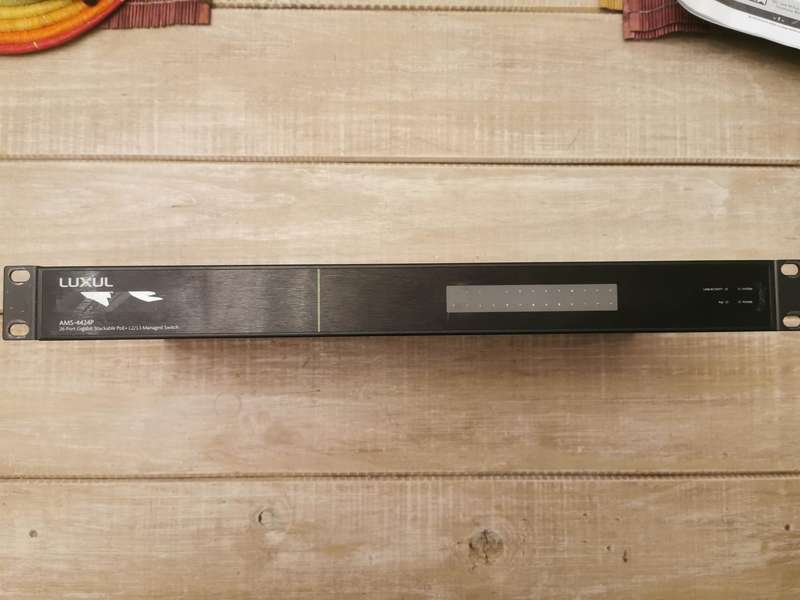

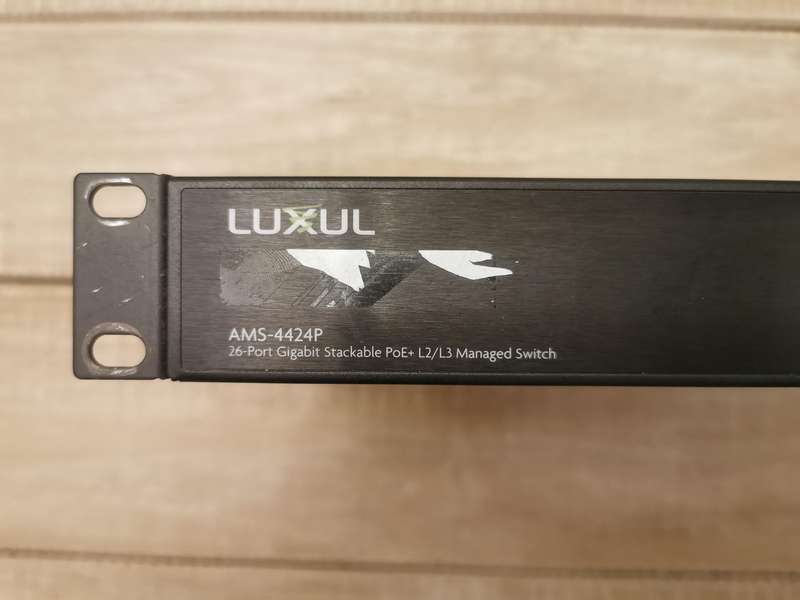

Luxul AV Series 26 Port/24 PoE+ Stackable L2/L3 Managed Switch

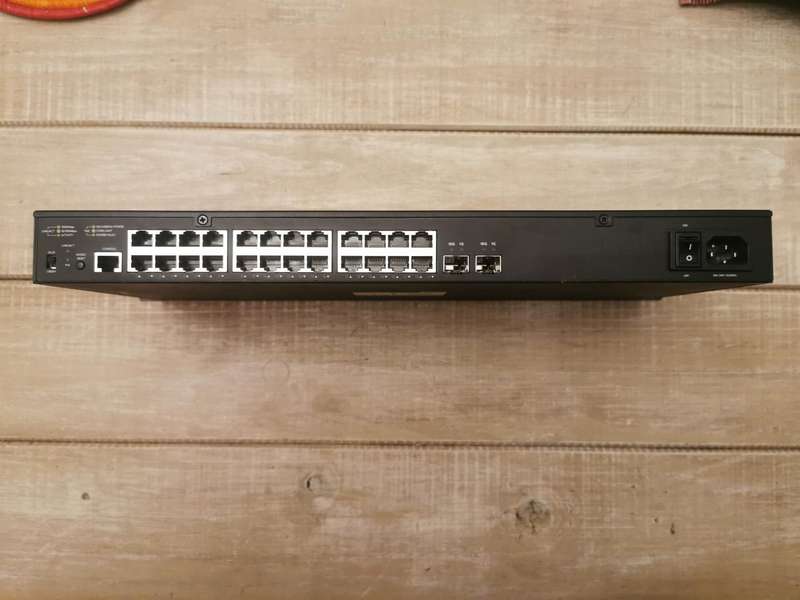

The Luxul AV Series 26 Port/24 PoE+ Stackable L2/L3 Managed Switch (AMS-4424P) features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. With 24 Gigabit RJ-45 PoE+ ports and two 10 Gigabit SFP+ stacking ports, it provides superior network performance and seamless scalability/management of up to 16 switches (384 ports). The AMS-4424P includes 24 PoE+ ports, allowing the use of standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices (i.e. VoIP, IP Cameras and Wireless APs), with a total power budget of 250 Watts. The advanced Layer 2/Layer 3 features and simple-to-use management interface helps to optimize network traffic.

PoE Self-Healing with auto-recovery and power scheduling

24 Gigabit 802.3af/at PoE+ Ports (250 Watt Power Budget)

Two 10 Gigabit SFP+ ports

88 Gbps Switching Capacity

Full Layer 2/3 Support

802.1Q VLAN (with Trunking) and QoS Support

Plug-and-Play Installation with Intuitive Management

Simple Power Management of PoE-Enabled Devices

User Selectable Green or Blue Front facing LEDs

Variable Speed Fans for Quiet Operation

Compact Design (8.25 Deep) in Standard 19 Rack-Mount Enclosure

Three Year Limited Warranty

The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
