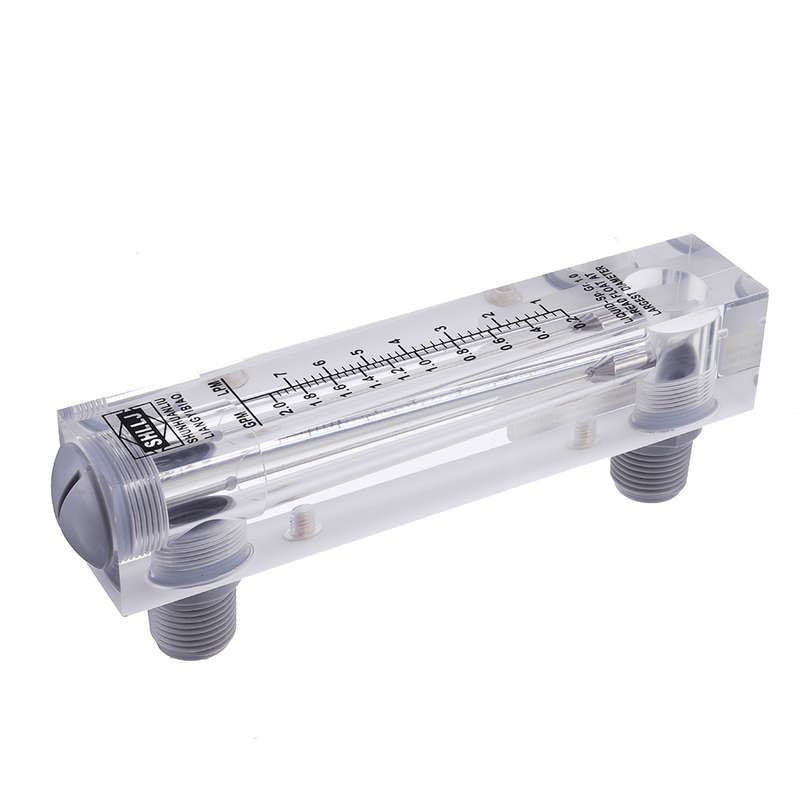

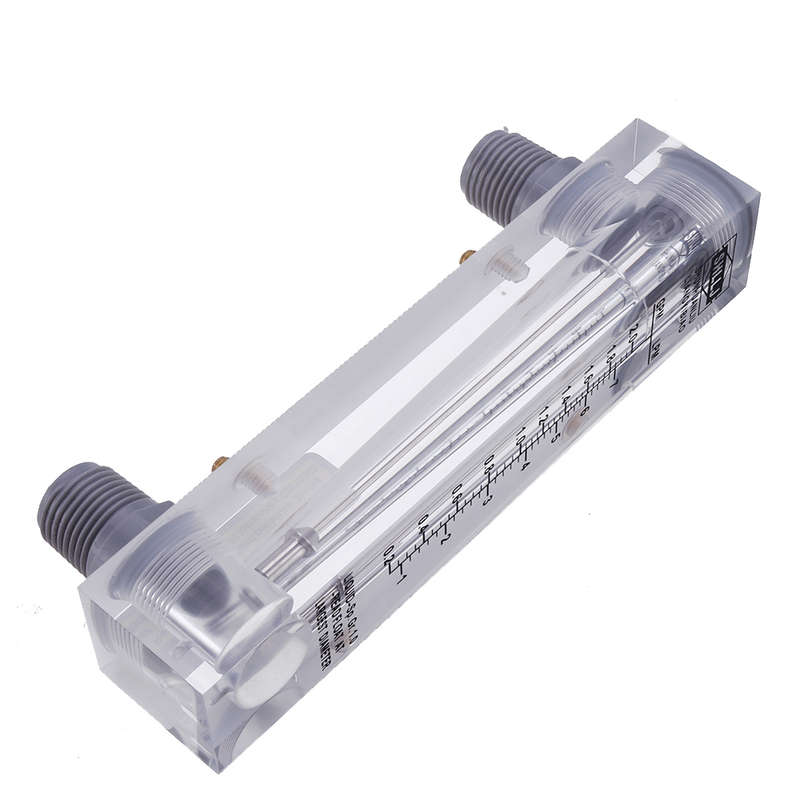

LZM-15 1/2 Inch 0.2-2.0 GPM 1-7 LPM Water Liquid Inline Flow Meter Rotameter

20 available / new

R533.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641128182

Features:

LZM-series panel type flow meter is usually installed on the control panel,its water inlet and outlet gaps are both on the back,so before installation,clients should set the connecting mouth for water inlet and outlet and fix the screw hole. Specification:

Model:LZM-15

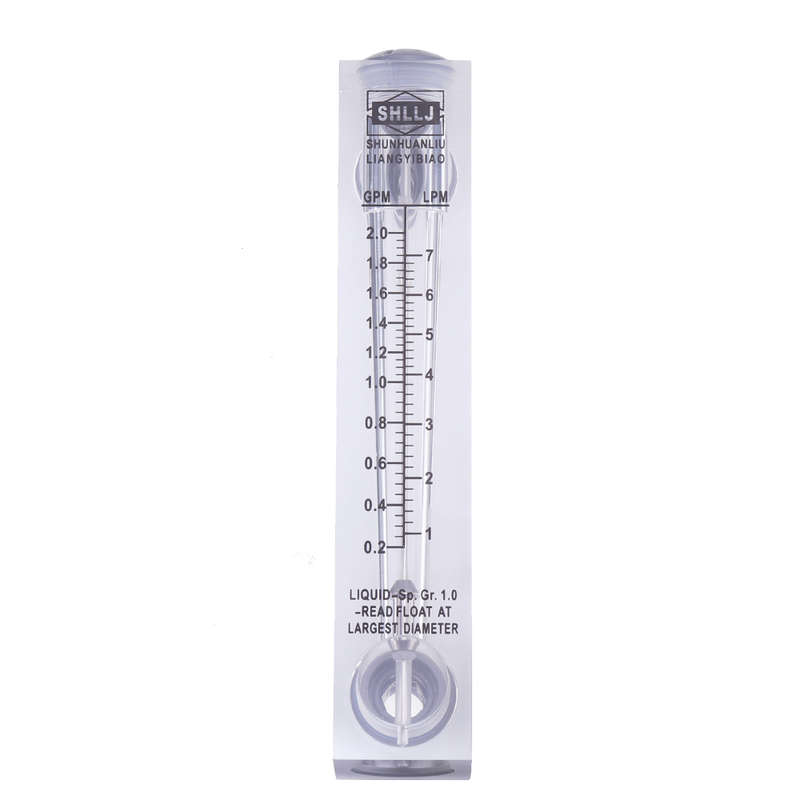

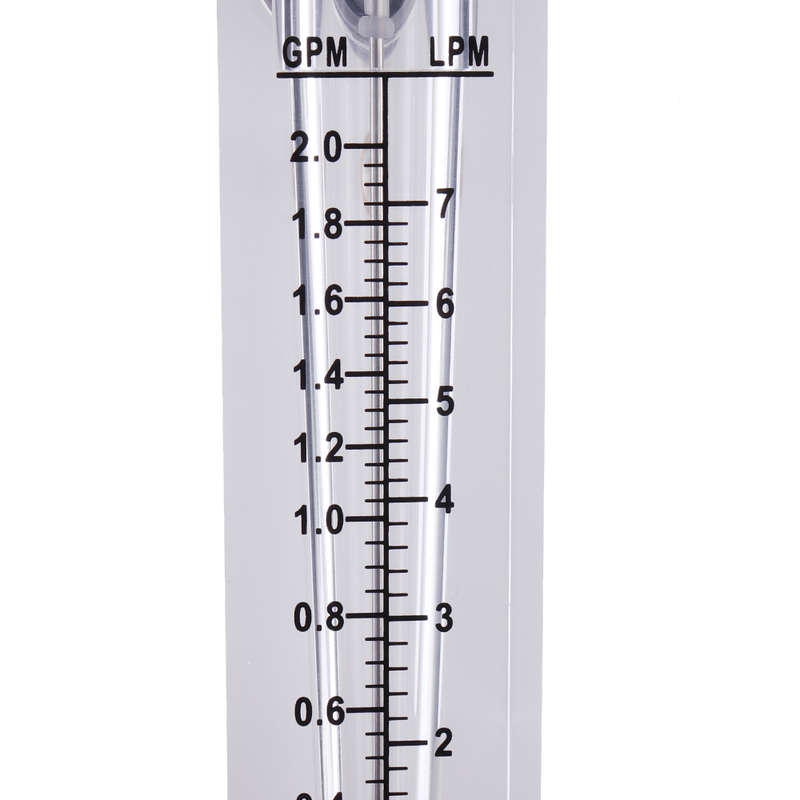

Thread Port Size : 1/2 Material : Acrylic, Stainless Steel, Plastic Scale Range : GPM: 0.2-2.0 LPM: 1-7 Net Weight : 144g

Technical parameters of LZM- series flow meter

Model	Measure Range			Screw Thread	Accuracy
panel type	Liquid		Gas
	GPM	LPM	N m3/h
LZM-15	0.1a0.5 0.2a1 0.2a2 0.3a3 0.5a5	0.1a2 1a4 1a7 1a11 2a18	0.1a1 0.25a2.5 0.3a3 0.6a6 1.2a12 1.6a16 2.5a25	ZG 1/2 (1/2BSPT) ZG 1/4 (1/4BSPT)	&pm;4%





LZM-25	1a10 2a15 2a20 5a30 5a40 15a35	5a35 10a60 10a70 20a110 50a130 10a150	2.5a25 6a60 10a100 16a160 25a250 30a300	ZG 1 (1BSPT)


LZM-50	10a50 10a60 20a80 25a100 30a150	50a190 20a220 90a300 100a350 100a550		ZG 2 (2BSPT)

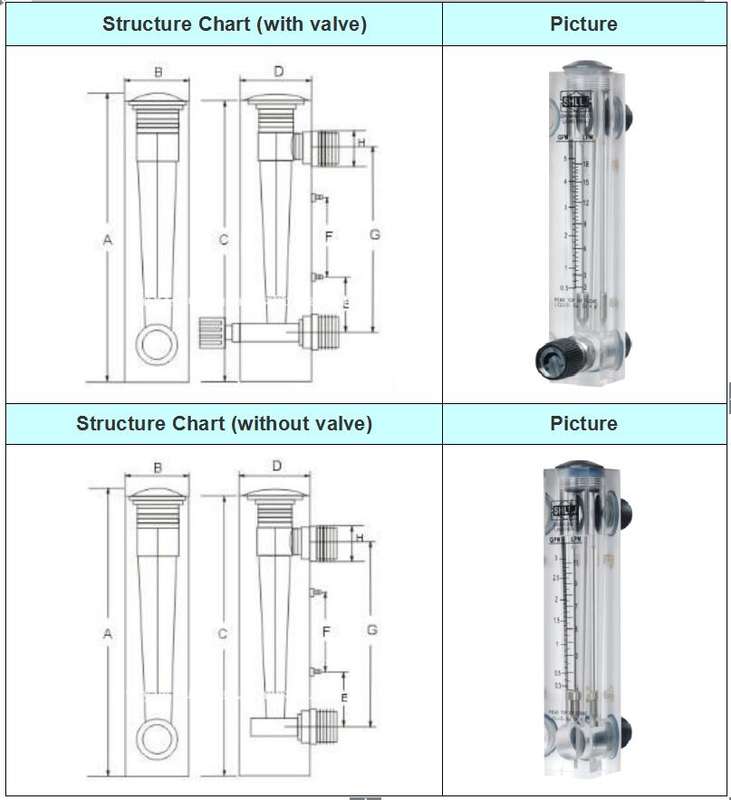

Structure Chartand Outline sizeof LZM Series PanelTypeFlow Meter

Model	Outline size(mm)
	A	B	C	D	E	F	G	H
LZM-15	176.5	31	171	34	26.5	76	127	26

LZM-25	232	44	225	45	33	100	160.5	35.5

LZM-50	296	70	281	82.5	50	100	189.5	62.5

Remark:The fixed screw of center distance F is M611
1).Working Pressure:a1.5MPa
2).Operating Temperature:0~90 C
3).Customized specifications are available

Package included:

1 x Flow Meter Details pictures:
