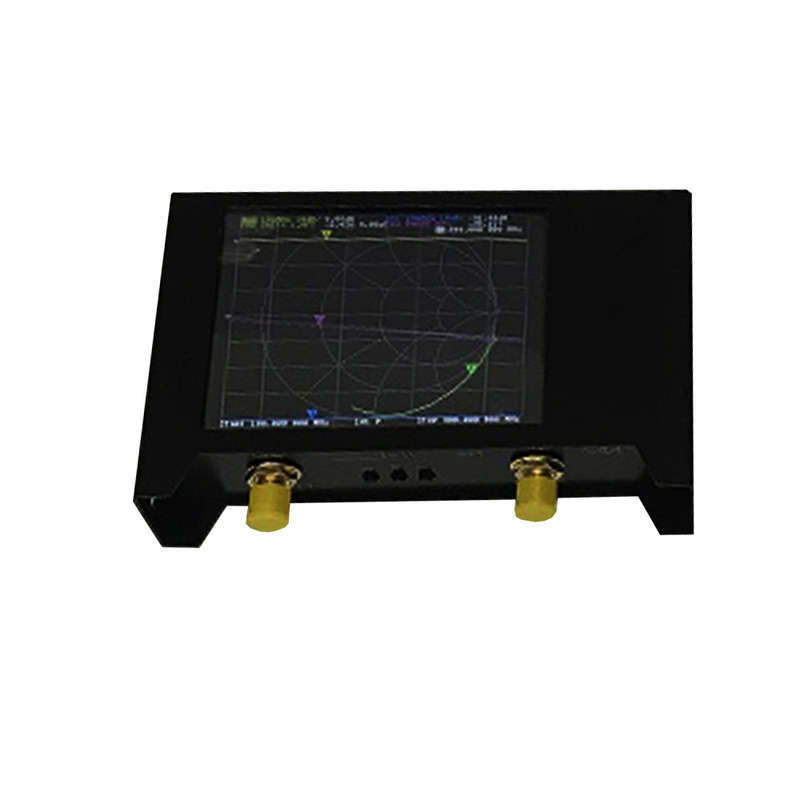

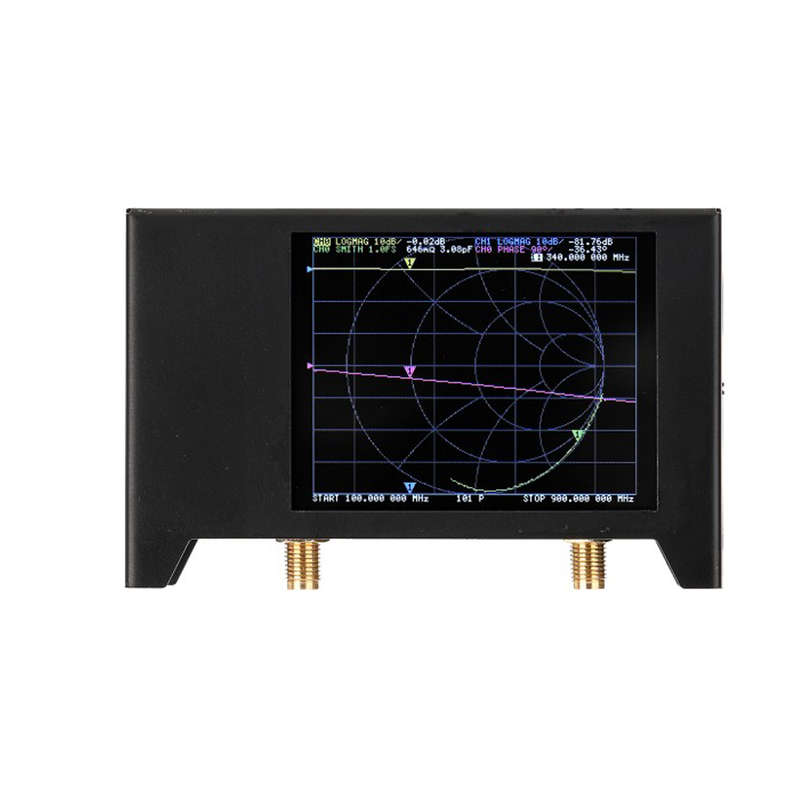

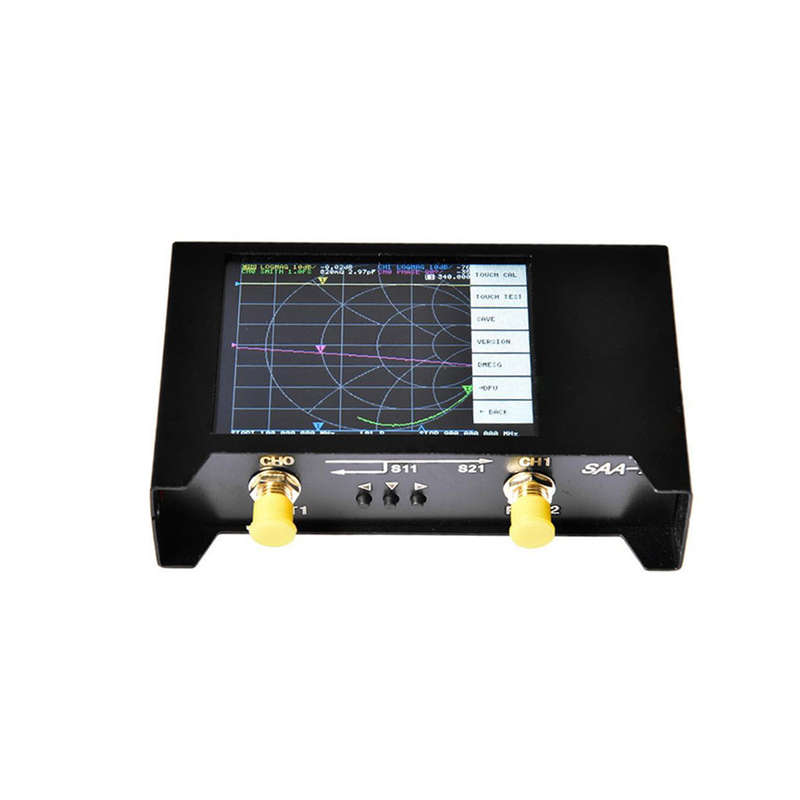

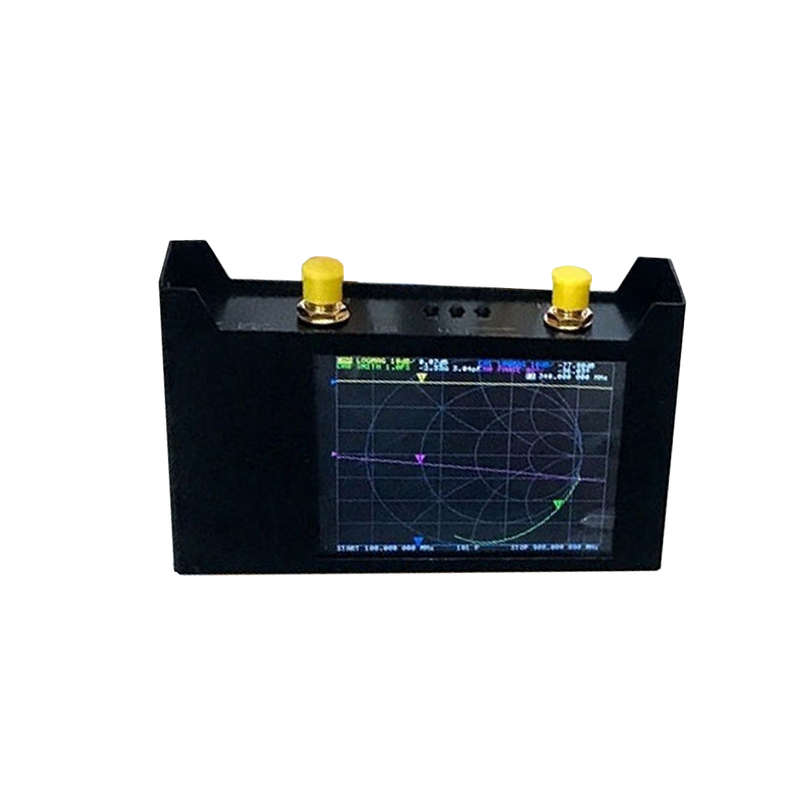

Description:
S-a-a-2, portable vector network analyzer up to 3GHz designed by owocomm. We manufacture in strict accordance with the document of owocomm, using 0.5ppm TCXO to ensure the frequency accuracy of high-frequency measurement. The complete metal shell can fully protect the internal precision circuit and fully consider the protection of external interface. The customized high-performance ss405 cable provides good amplitude and phase stability, and the high-performance calibration kit ensures that the calibration SWR is less than 1.03 at 3GHz.
Product performance: Frequency range: 50KHz-3GHz Frequency error: < 2ppm Frequency temperature: < 0.5ppm System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz) S11 noise floor (calibration): - 50dB (up to 1.5GHz), - 40dB (up to 3GHz) Scanning speed: 100 points / S Display: saa2 2.8 , 320 x 240 RF port: saa2 SMA; saa2n n (if you need to measure anti pin SMA equipment such as wifi antenna, please use SMA to rpsma connector) USB interface: microusb Power supply: USB, maximum charging current 1a Battery: saa2 2000mAh lithium ion; saa2n 3000mAh lithium ion Battery connector: jst-xh 2.54mm Max scan point (on device screen): 201 Maximum scan point (USB): 1024 Return loss of port 2 (1.5GHz): 20dB typ Port 2 return loss (3GHz): 13dB min Vna-qt software compatible system: Linux, windows (7 +), OS planned Outer package size: 140 * 100 * 40MM Small package weight: 480 G
Package includes:

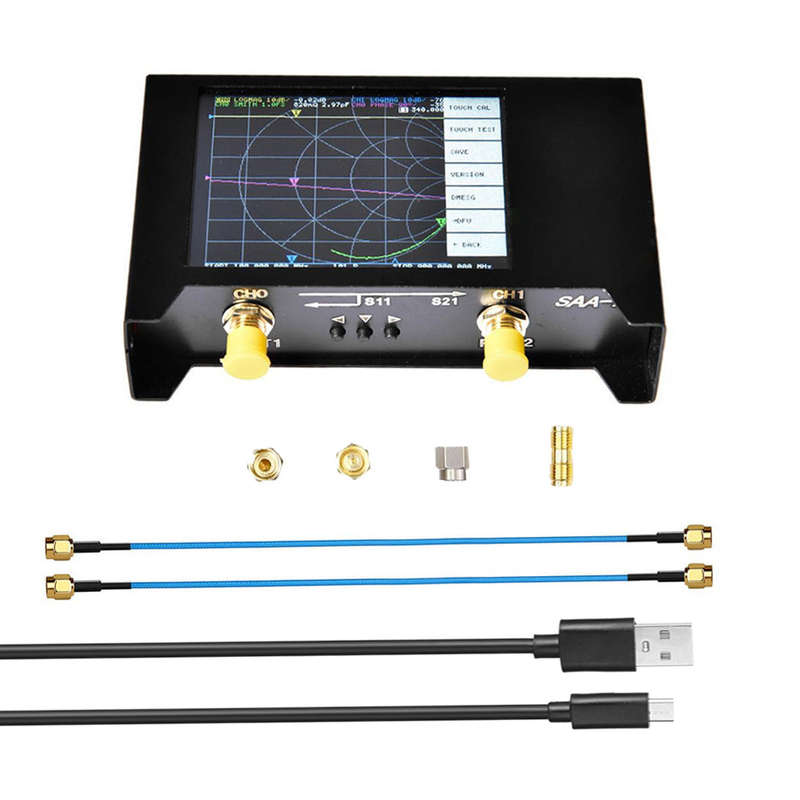

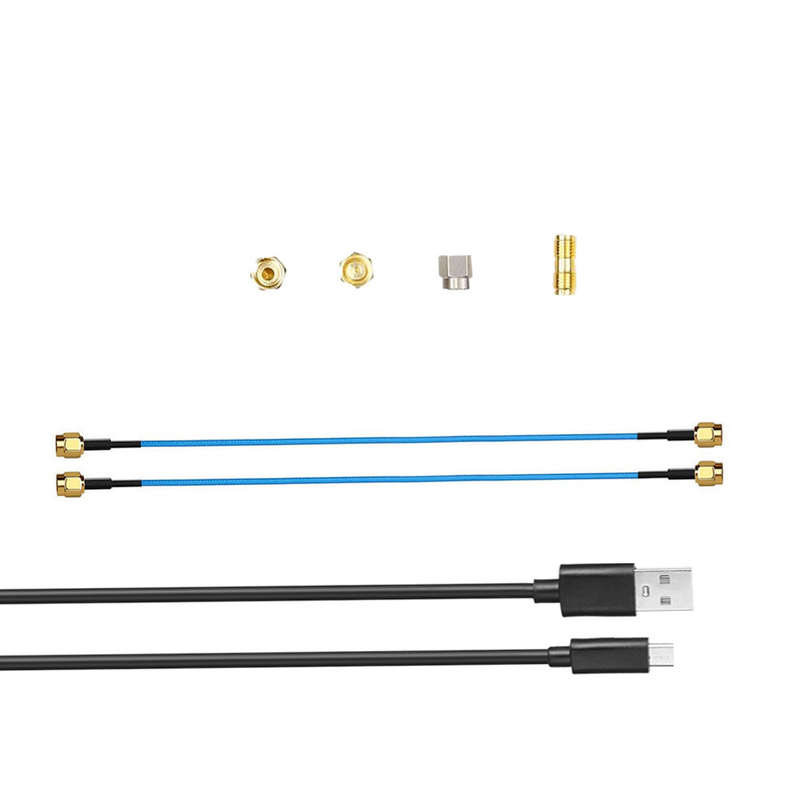

1 x S-a-a-2 host (with 2000mAh battery) 1 xUSB cable 2 x30cm SMA male to male ss405 RF cable 1 xSMA simple calibration kit open 1 xSMA simple calibration kit short 1 xSMA simple calibration kit load 1 xSMA female to female connector 1 xEVA carrying case 1 xRope touch paddle
Note: S-a-a-2 / nanovna V2 uses a user interface similar to that of nanovna, but adopts a different technical architecture. S-a-a-2 / nanovna V2 does not load initial calibration data at startup, and does not automatically insert calibration data after user changes frequency. Calibration data must be recalibrated or called back after each startup and frequency change. Please read the operation manual carefully before use to avoid damaging the equipment.
