M&K Sound VA500 Amplifier - Black

M&K Sound VA500 Amplifier - Black

This dedicated Class D amplifer with high efficiency, cool running and low standby voltage consumption is a further development of the amplifiers built into the popular M&K Sound V Series subwoofers. The Class D switch mode power module is designed with effective power reserves to effortlessly deliver copious amounts of clean power to the IW28S In-Wall sub for extraordinary, uncompromising handling of demanding deep bass transients.

A precisely calibrated dynamic headroom control circuit constantly monitors the signal to prevent audible clipping, while maintaining the full dynamic range of modern digital audio formats.

Stereo inputs and line-level passthrough connections provide valuable flexibility for system building and future expansion. For perfect sonic integration with any satellite system, VA500 incorporates adjustable gain control including a fixed level position for reference set-up, continuously variable phase (0-180 degrees), variable crossover frequency (60Hz 200Hz) and three-position room adaptation. The amp is one standard rack unit high and is supplied with removable handles for mounting in a 19" pro rack and feet for stand-alone placement.

Sound
Continuous Output Power 500W/4 Ohm, Class D
Peak Output Power 800W/4 Ohm
System Preamp Analog

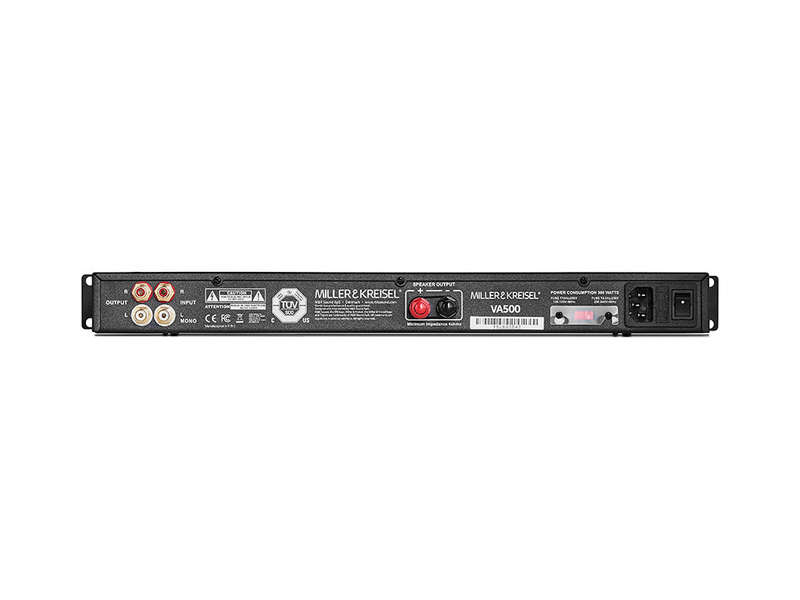

Line-Level Connections Phono In, Phono Passthrough Out
Speaker Connections 5-way binding posts

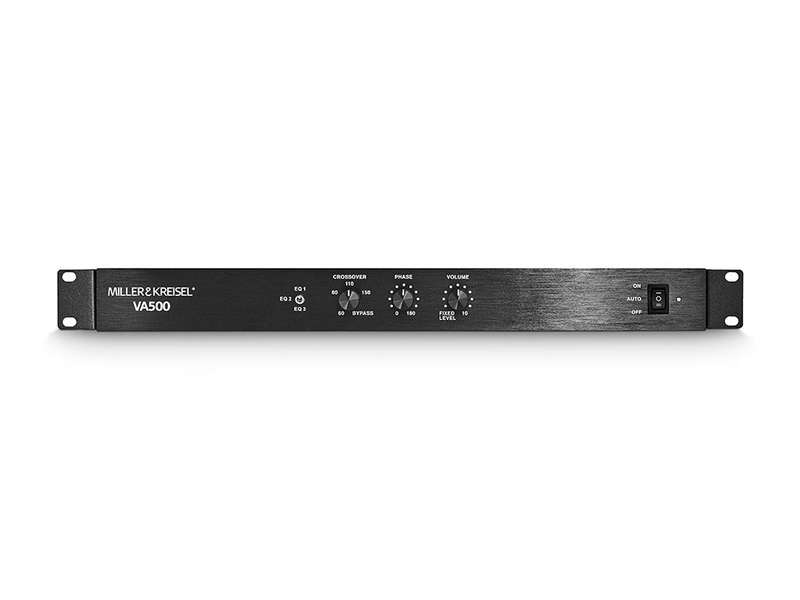

Controls Volume, Phase, Crossover
EQ Switch 3-Position Room Adaptation:
For one sub placed away from corners
For one sub placed near a corner
For one or two subs placed in corner(s)

Dimensions
Input Voltage 100-240 VAC (switchable), Auto On/Off

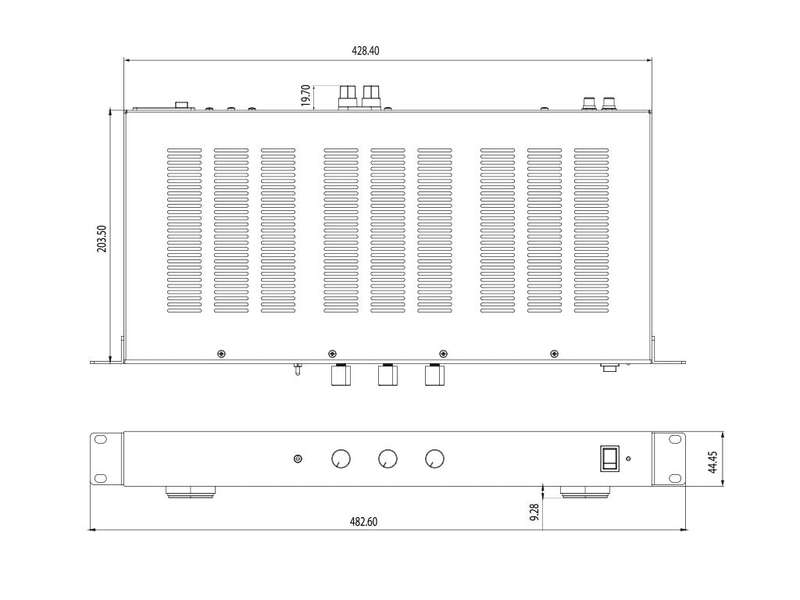

Dimensions (WxHxD) 16.88 x 1.74 x 8.81"
Dimensions (WxHxD) 429 x 44,4 x 224 mm
Dimensions (WxHxD) Rack size 19 x 1.74 x 8.81"
Dimensions (WxHxD) Rack size 483 x 44,4 x 224 mm
Weight 8.8 lbs / 4 kg
