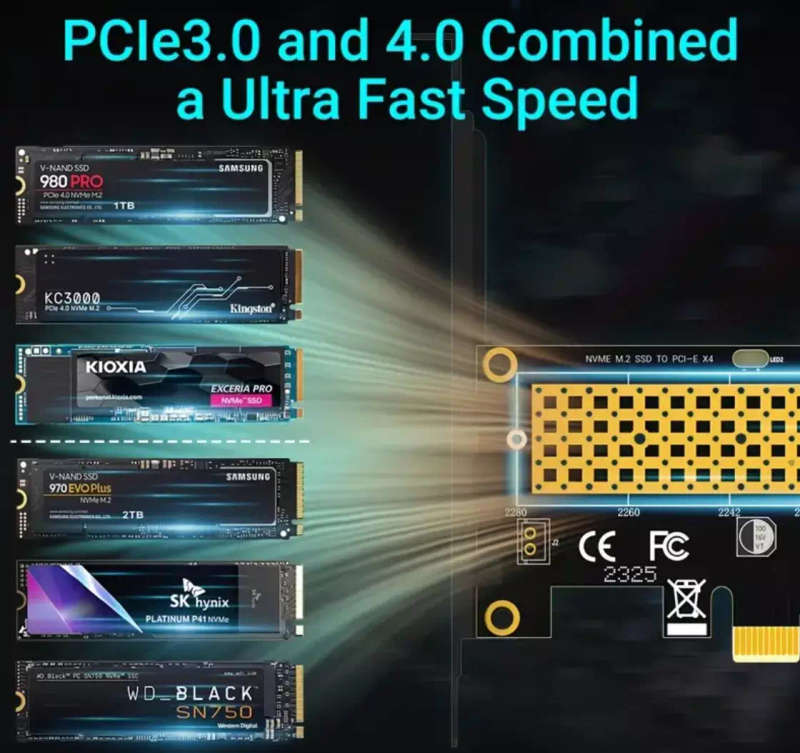

M-Key M.2 NVME to PCIE 4x Adapter Card for M.2 Solid State Drive | M.2 SSD GEN 1 - GEN5 Supported

M-Key M.2 NVME to PCIE 4x Adapter Card for M.2 Solid State Drive | M.2 SSD GEN 1 - GEN5 Supported

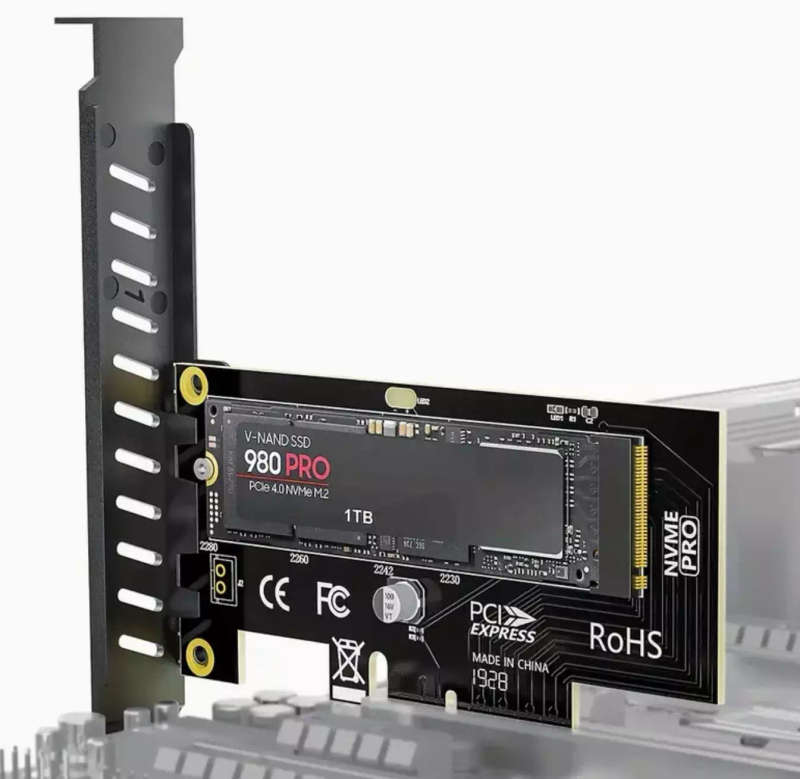

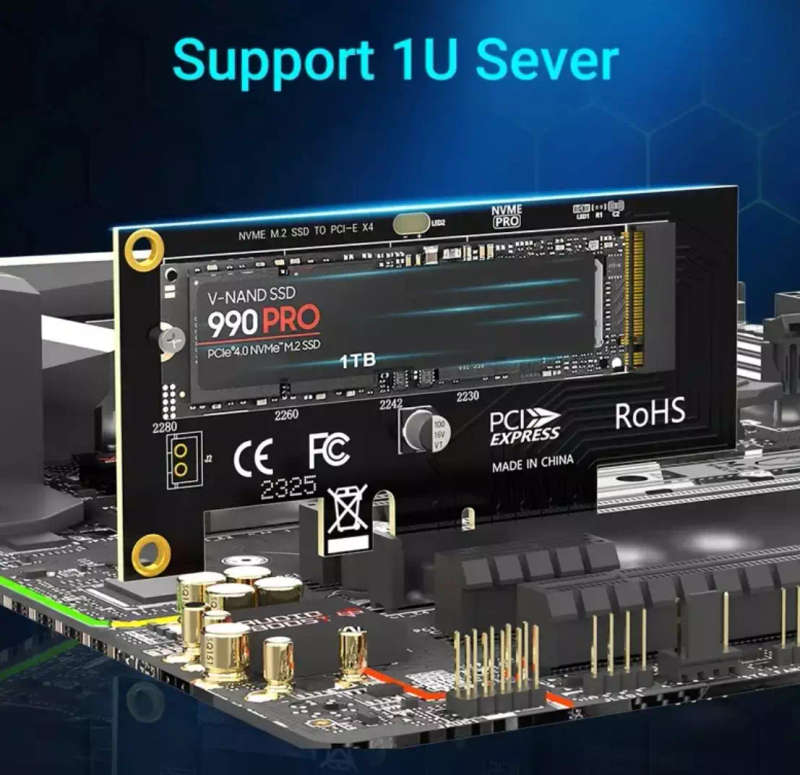

• PC/Server Motherboard Adapter card from M.2 NVME M-Key Solid State Drive to PCI Express 4.0 4x 8Gb/s.

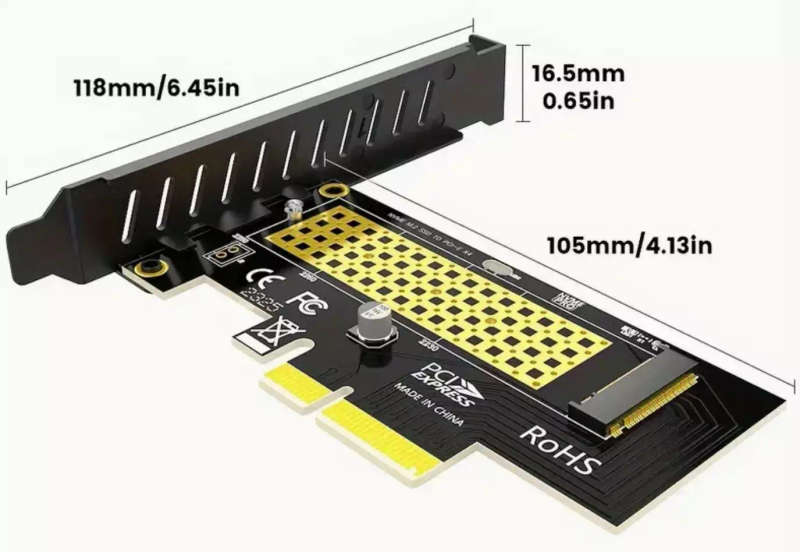

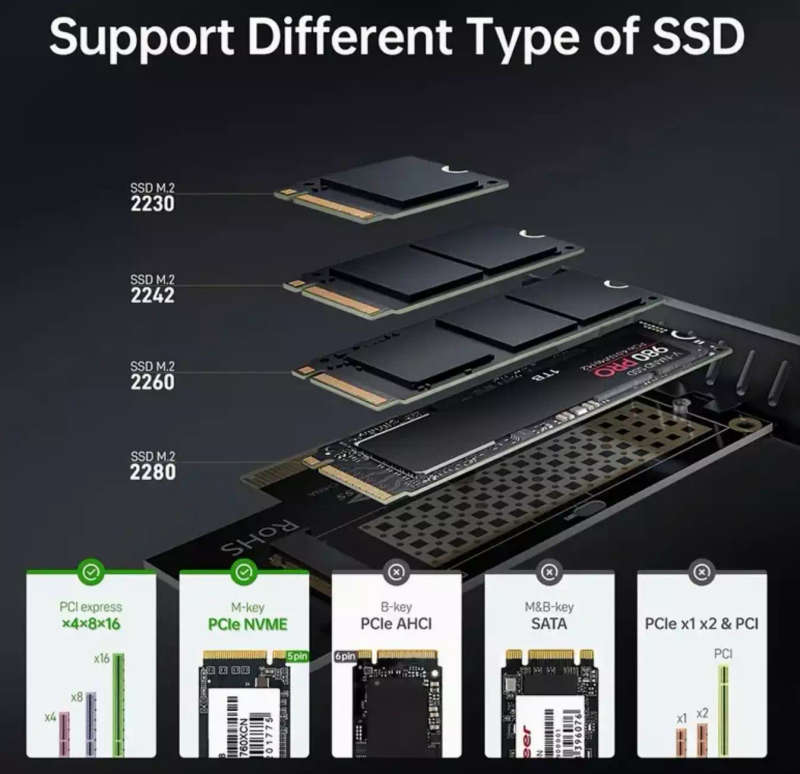

• The Card supports 64Gbps Max transfer for M.2 sizes 2280, 2260, 2242 & 2230.

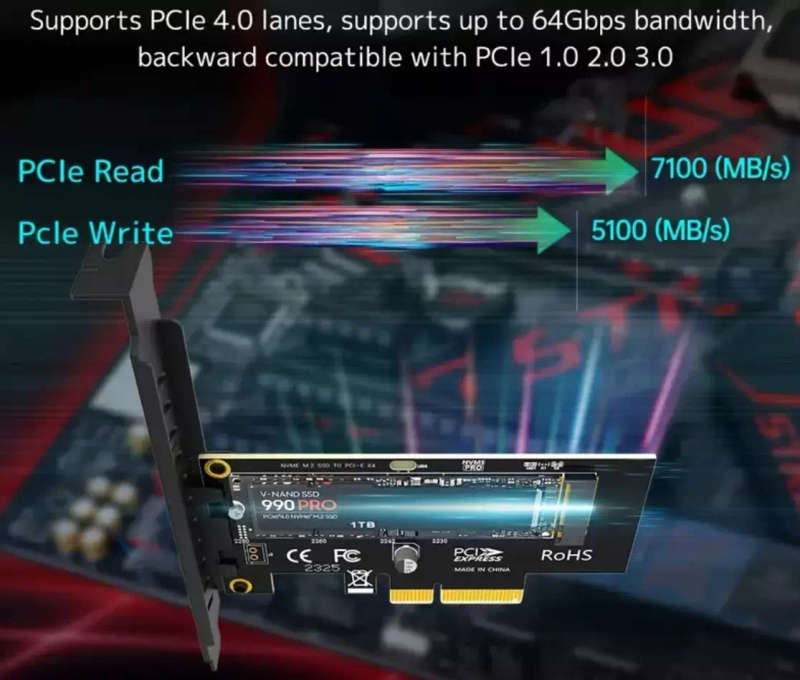

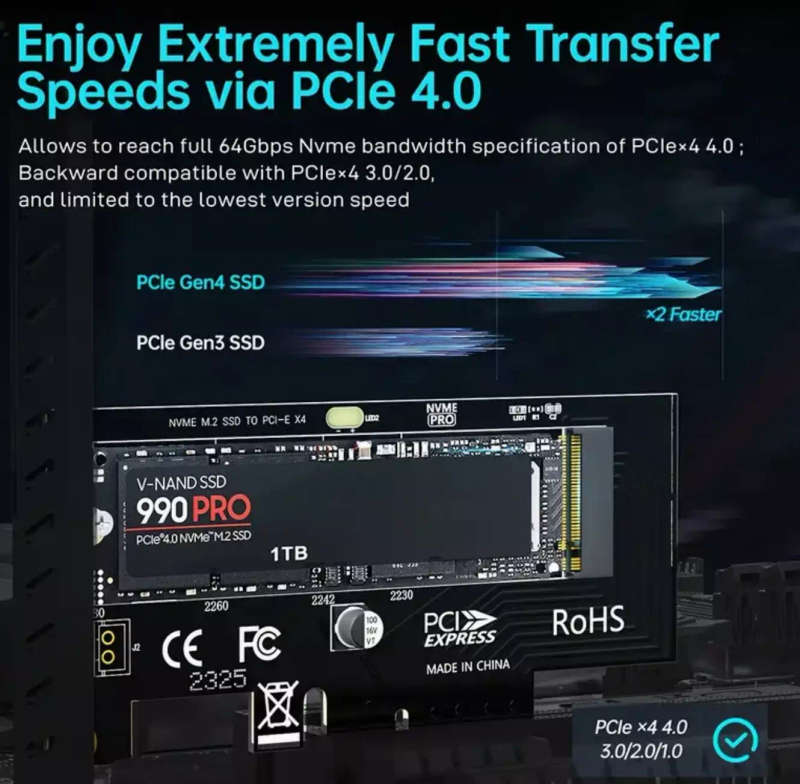

• By using this M.2 NVMe SSD PCI-E 4.0 X4 adapter, you can add a M.2 NVME SSD to your motherboard without an M.2 slot. With the pci-e 4.0 X4 channel, the maximum transfer speed will up to 64 Gbps (64/8 GB/s) depending on your m.2 SSD speed, random read for Gen4 Tested ±5000 MB/s and Maximum write 4500+ MB/s

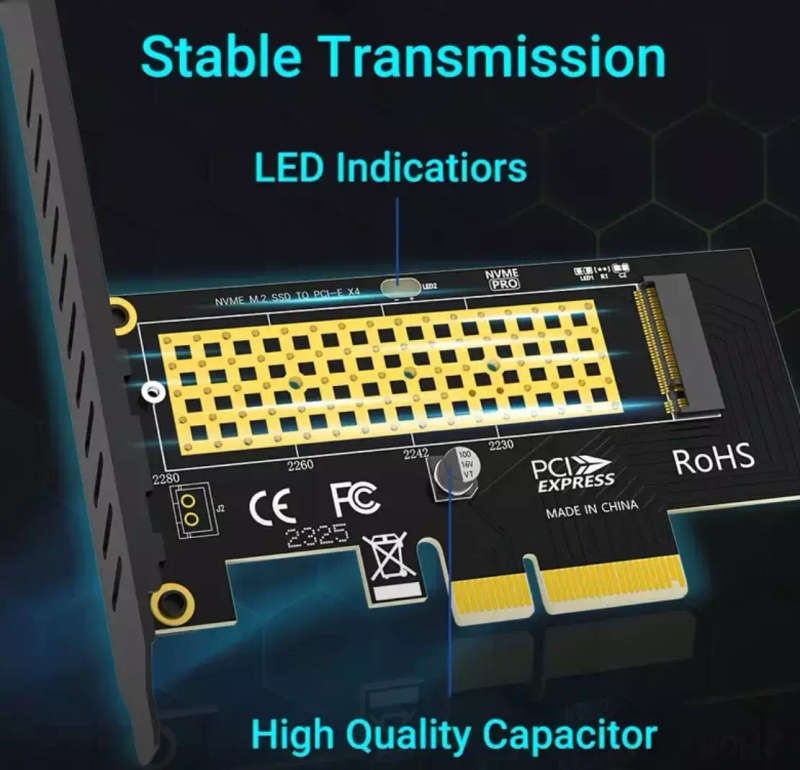

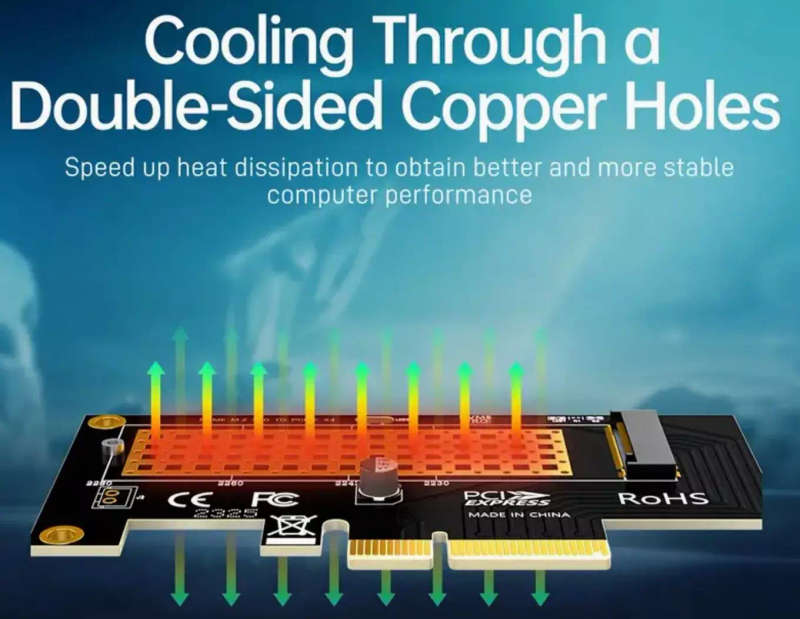

• Multi-layer PCB, multi-layer protection: overcurrent protection, overvoltage protection, short circuit protection, heat sink layer for overheating protection.
• Maximum protection of M.2 NVMe SSD from electrical signal interference. No driver required for Windows 10/11, plug and play
• Compatible with multiple operating systems : Windows 8/10/11, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat (no driver required).
• Additional NVMe driver required for Windows 7 and Windows 2008 R2 Server but Windows 7 support is end of life.

NOTE!! A PCI-E 4x or 16x Slot is Required for this Card (4x PCI-e Cards are compatible with 16x slots) on your motherboard. If inserting into a PCI Slot you may damage your motherboard!!

 Included in Package

• 1 * M.2 PCI-e 4x adapter card - M-Key M.2 NVME Solid State Drive Compatible (ALL NVME M.2 Drives are M-key, SATA/NGFF B-Key will not work)

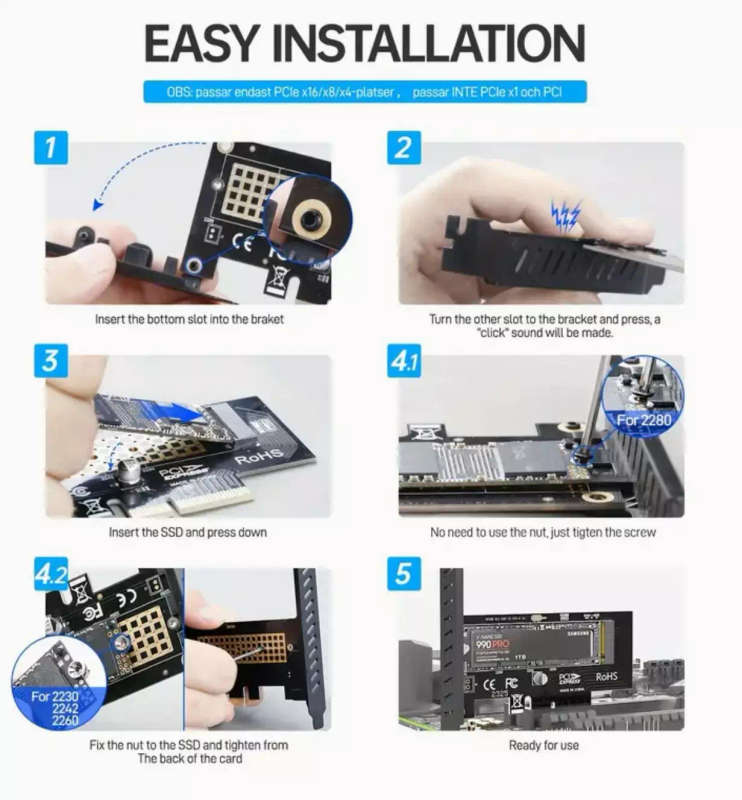

• 1 * Full Height Profile Case Bracket
• 1 * Cabinet Screw
• 1 * SSD Screw
• 1 * Small Philips Screwdriver
