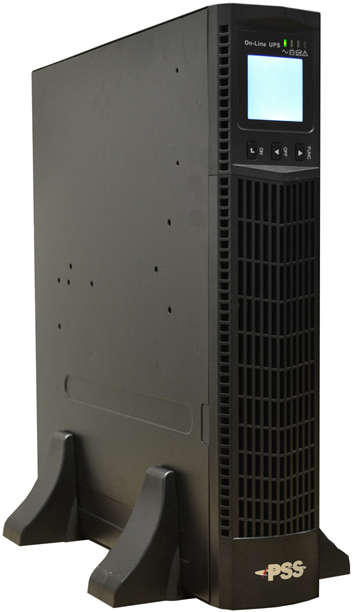

M-Series 2KVA-48V Online Rack Mount UPS - Sleek in design, these true on-lon UPS's provide the best protection for your expensive server room equipment. The double conversion technology makes this unit and excellent stabilizer for power. Pure sine wave is always provided, whether on the mains or battery. The standard unit comes with 10 minute internal batteries, alternatively, battery banks can be Provided to supply up to 4 hours runtime. Designed for the server room environment, you will have to look far to find a better unit.
Product Overview
The M-Series On-Line UPS 2KVA-48V features sleek design and reliable double conversion technology, delivering pure sine wave output for stable power to critical equipment. It offers flexible runtime options with internal batteries and up to four extended battery modules, suitable for servers, medical devices, network centers, and more. Equipped with intelligent management, wide input voltage range, ECO mode for efficiency, and comprehensive safety features, it ensures robust protection and optimal battery life in demanding environments.
APPLICATION
PC's, Workstations, Network Centres, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems
Features
- Optimized battery configuration: 2KVA-48V
- Emergency shutdown through remote emergency power-off (EPO) port Three segment charging mode to increase battery service life and optimize recharge time Diverse options of accessories, intelligent management
- Intelligent slot - optional SNMP/dry contact board Input neutral and live wires reverse detection
- Economic operation mode (ECO
-Wide input voltage range
- Self-testing on UPS start-up
- Cold Start (DC) Output voltage can be set
- Full digital control (DSP) M-Series On-Line UPS (1KVA - 3KVA RT)
- Design: Sleek, true on-line UPS with double conversion technology for power stabilization.
- Output: Pure sine wave on mains or battery.
- Runtime: Internal batteries or extended battery banks for up to 4 hours. Applications: PCs, workstations, network centres, SOHO, servers, industry equipment, medical equipment, and other critical systems.
Specifications
-Product Code: M2RT
-Description: M Series 2KVA Online Rack/Tower UPS
- Capacity: 1KVA (900W), 2KVA (1800W), 3KVA (2700W)
- Voltage Range: 200-290VAC at full load
- Frequency Range: 40-70Hz
- Efficiency: Up to 94% in ECO mode
- Battery Type: 12V/9Ah
- Recharge Time: 5 hours
- Noise Level: <55dB at 1 meter
- Operating Environment: 0-40 deg C, 0-90% relative humidity (non-condensing) Additional Information:
- Audible alarms for battery mode, low battery, overload, and faults.
- Dimensions vary by model (e.g., 440 x 435 x 86.5mm for 1KVA).
- Package dimensions and weights provided for each model.
- Safety certifications and modular connectors included.
