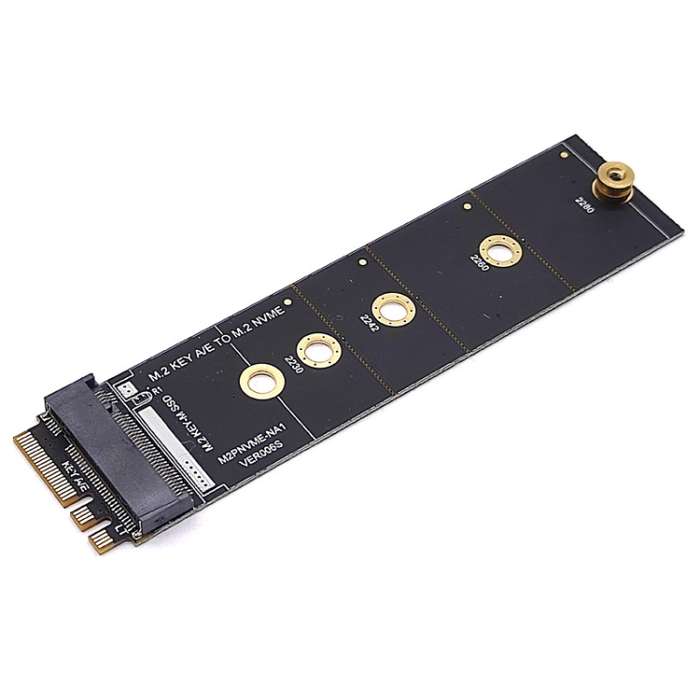

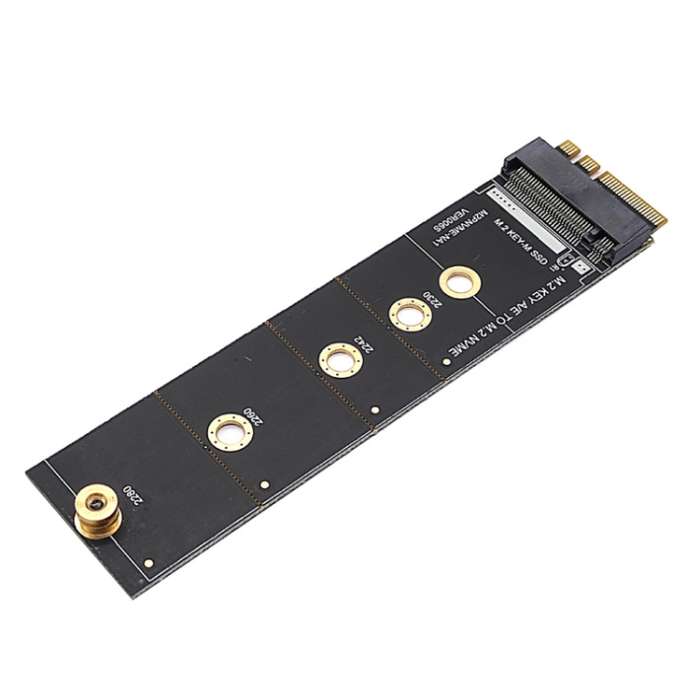

M2 KEY A/E to NVME KEY-M Adapter Expansion Card WIFI Interface

1. This adapter can convert the normal M2 KEY A-E interface to M.2 nvme ssd interface.
2. Support 2230, 2242, 2260 and 2280 size NGFF SSD.
3. There are four mounting holes on the board, which are 22x30mm, 22x42mm, 22x60mm, and 22x80mm. According to the length of the slot in your machine, you can interrupt the positioning
3. Connect NVME M KEY SSD to M2 KEY A-E motherboard, support PCIE based NVME SSD
4. Easy to install, no driver required, no additional power supply required.

parameter:
1. Interface: M.2 KEY A/? TO M.2 KEY-M
2. Product color: black PCB
3. Interface rate: PCI-E 3.0 1X only supports NVME and PCIE protocol SSD
4. Product size: 91.8mm x 22.4mm
5. Working environment: -5-70 degrees Celsius
6. Support system: WIN10 WIN11

Precautions:
1. Does not support SATA NGFF M.2 disk, does not support CNIV network card interface

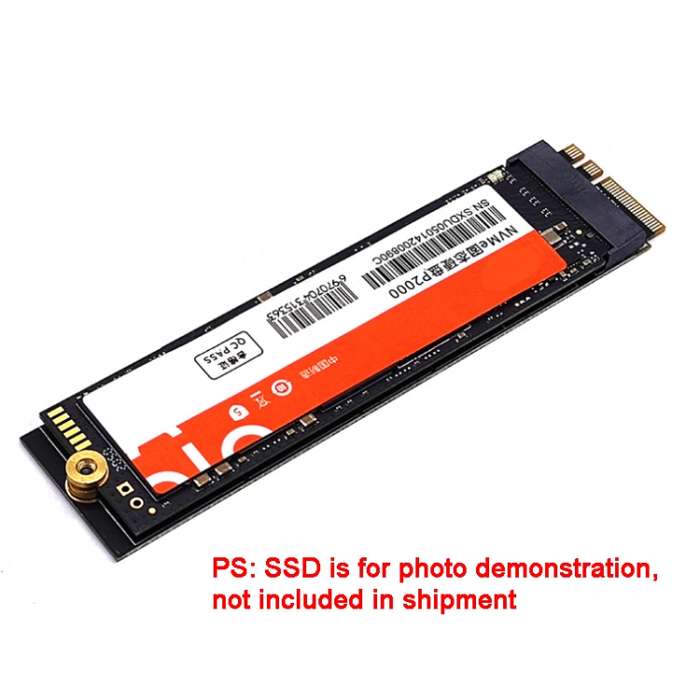

2. It is recommended to install 2230 or 2242 NVMe M.2 NGFF SSD for this M.2 interface, and M.2 SATA NGFF SSD of other protocols cannot be inserted.
