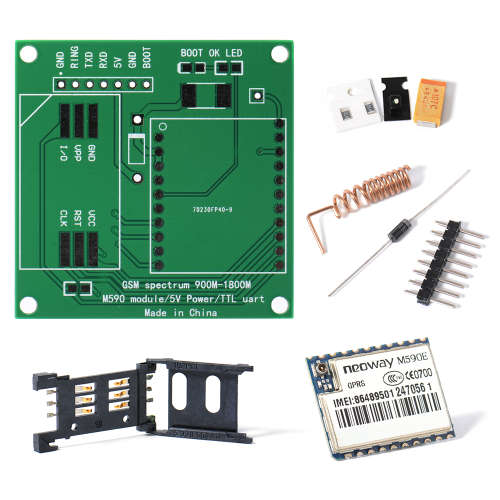

M590E DIY GSM GPRS Module 900 ~ 1800 SMS ***LOCAL STOCK***

M590E DIY GSM GPRS Module 900 ~ 1800 SMS

This Module works with standard AT instruction set

Supports 900M-1800M, GSM frequency band

Can be connected: MCU for TTL

GPRS class 10; Max 85.6 Kbit/s (DL)

Coding scheme : CS1~CS4

Mobile station Class B

CSD/USSD

SMS : TEXT/PDU

Voltage: 5V

Current: 1A

Frequency: 900/1800

Size: 50mm x 50mm

1. Dual-band: 900/1800 MHZ
2. GPRS multi-slot Class 10
3. Compliant to GSM phase 2/2+
4. Class 4(2 W)@900 MHz
5. Class 1(1 W)@1800 MHz
6. RX sensitivity: -107 dBm
7. 3GPP Release99 compliant
8. Control via AT commands: GSM 07.07, 07.05 and Neoway enhanced AT commands
9. 27.007, 27.005 and ITU-T V.25 ter
10. Integrated TCP client & server, UDP, FTP, DNS
11. CMUX 3GPP TS 27.010
12. Supply voltage: DC 5V
13. Current: 1A

Some soldering is required.

Note these modules have been reclaimed and not all components are new.

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
