M5Stack ATOM Ech Voice Control Programmable Smart Speaker Built-in ESP32 bluetooth Wi-Fi Internet o

Description:

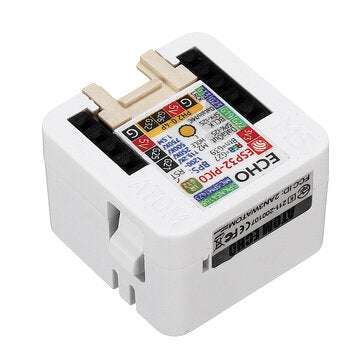

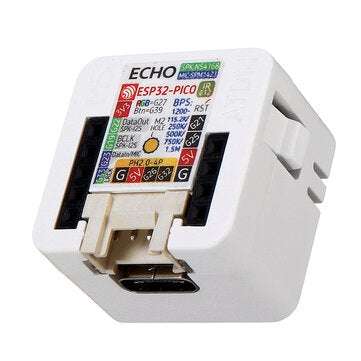

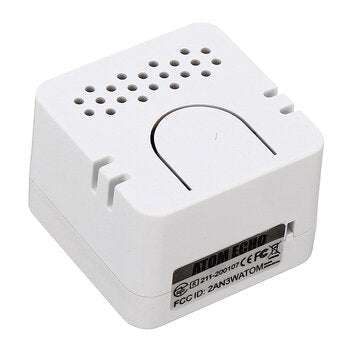

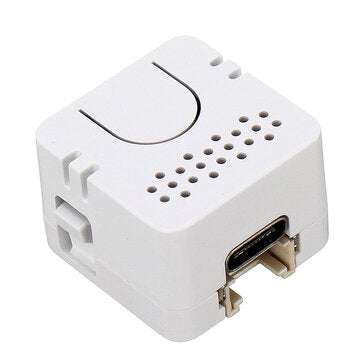

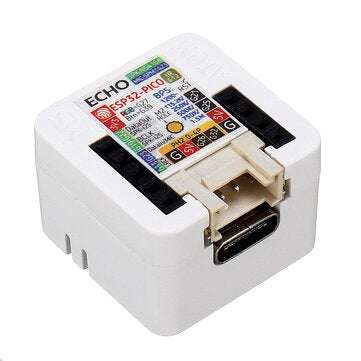

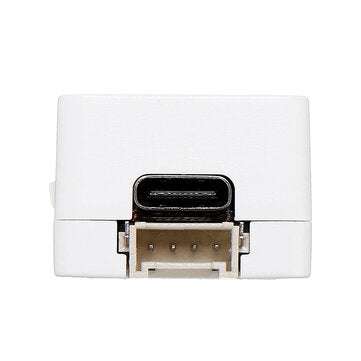

ATOM ECHis a Programmable Smart Speaker based on the M5ATOM design. Its form factor is very small, its dimensions are only 24 * 24 * 17 mm. Music can be played using the bluetooth capabilities of the ESP32 from a mobile phone or tablet. The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that ATOM ECH has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions. The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a Bluetooth speaker, it still has the control ability of Atom series. You can connect devices through the grove interface, G21 / G25 can only be used for general I/O, they do not support I2C and UART.Screw hole on the back is convenient for users to fix.

Note: This product is not recommended to play low-frequency or heavy music for a long time.

Product Features:

• Light and small
• Support STT services
• Based on ESP32, Support A2DP, BLE 4.0
• 2.4G WiFi IEEE 802.11b/g/n
• Built-in microphone and speaker
• RGB LED status display indication
• GROVE extension interface
• Record and playback
• Programmable key
• Programming platform:ArdESP-IDF/ADF

Include:

• 1x ATOM ECH

Applications:

• Bluetooth Speaker
• Voice control
• IoT

Specification¯:
