M5Stack ATOM HUB ESP32 Development DIY Prto Board Module Industrial Creative DIY Application

¯Description:

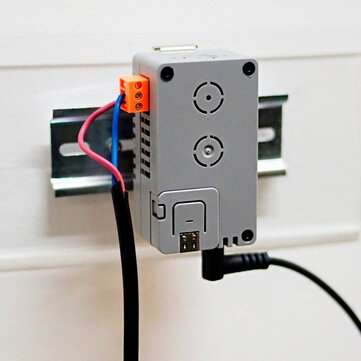

ATOM HUB is a DIY prot board module designed for use with the ATOM series. Users can build circuits or connect peripherals according to their own needs to satisfy the functions and requirements of specific scenarios. Considering the various possibilities of user connection, ATOM HUB PROT provides a wealth of interfaces, including VH3.96 interface, DC-5V power interface, grove interface, and all kinds of openings are reserved on the shell to facilitate user wiringA variety of mounting holes are designed on the back of the fuselage, which not only support the traditional hanging holes and screw fixing holes, but also support the fixation of slide rail clamps.Built in prot circuit board, main circuit space layout 45x35x20mm.With atomhub, you can make your own hardware devices at will, such as connecting batteries by yourself, or integrating micro air pump + air pressure sensor to make a blood pressure meter, or even building a positioning and tracking system with GPS + NB-IoT module.

Features:

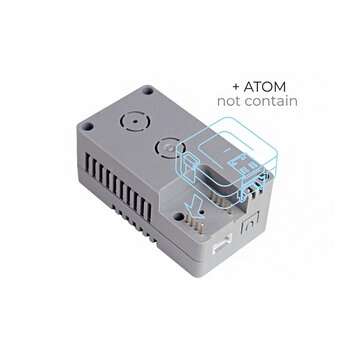

• Compatible with ATOM Matrix/ATOM Lite
• Compact design
• Industrial applications
• Multiple interface output
• Multiple mounting holes
• Creative DIY

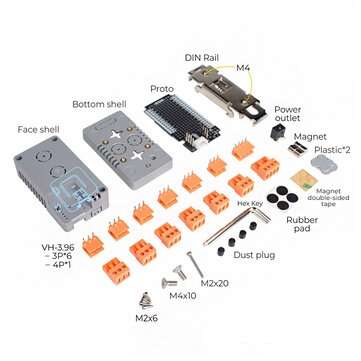

Package Included:

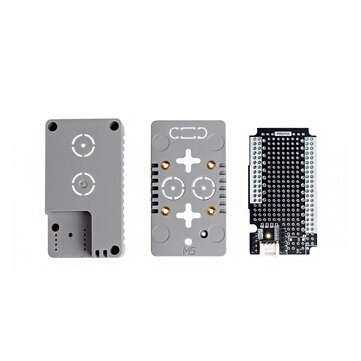

• 1x Prot board(include GROVE port)
• 1x 3.96*4P Plug & Plug Base
• 6x 3.96*3P Plug & Plug Base
• 1x ATOM HUB PROT Face shell
• 1x DC 5V Power outlet
• 4x Dust Plug

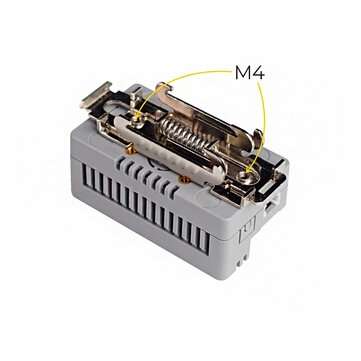

• 1x DIN Rail
• 2x Plastic
• 4x Magnet double-side tape
• 4x Rubberpad
• 4x Magnet
• 4x M2*6mm Hexagon self tapping screw
• 1x M2*20mm Hexagon socket cup head machine screw
• 2x M4*10mm Hexagon countersunk screw
• 1x M2 Hex Key
• 1x M4 Hex Key

Applications:

• Atom expansion board
• Industrial controller node
• Peripheral connection
• DIY hardware
