M5Stack ATOMIC DIY Kit Atom Expansion Board DIY Node Controller Peripheral Connection Module

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} aATOM Lite ID:
a
Description:

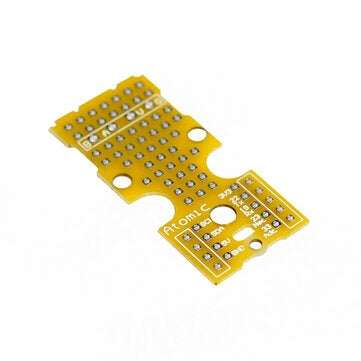

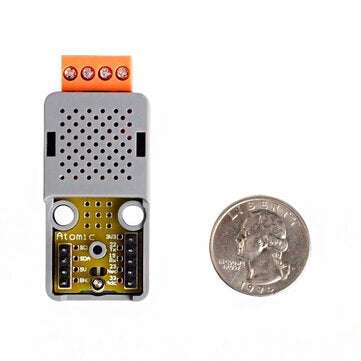

ATOMIC is a DIY Kit specially adapted to Atom series, which is convenient for users to design small circuits or external hardware by themselves. It can be stacked with Atom directly through 9 pin arrangement. Two blank boards are provided in the kit, each of which provides more than 60 hole positions to meet the spatial layout requirements of users. A pair of 3.96 * 4P seats are contained to make the external electrical connection more reliable. The shell adopts the perforated design, which can meet the needs of heat dissipation and provide the use of non-closed space such as temperature and humidity measurement. The product provides a variety of fixation methods, such as suspension, Leigo connection, screw fixation, etc. If you want to make a mini node controller with characteristics, ATOMIC should be the best choice.
Features:
* Compatible with Atom * Mini Fuselage * DIY Personality * Built-in Infra-red * Unclosed design
Applications:
- Atom expansion board - DIY node controller - Peripheral connection
Specification:
External port: VH-3.96 4P Size: 47 x 34 x 18 mm Weight: 42g Case material: Plastic ( PC )

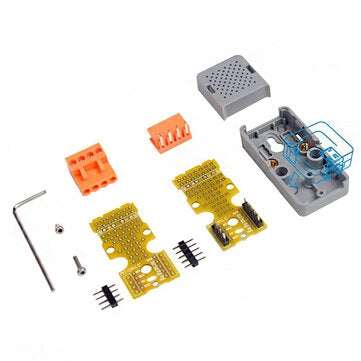

Package Included:
1x Board 1x Board(soldered pin/finished product) 1x 4P VH-3.96 Plug&Plug Base 1x 4P 2.0 Pins 1x 5P 2.0 Pins 1x ATOMIC Case 1x M2*3mm Self tapping screw 1x M2*8mm Screw
