M5Stack BaseX Battery Base Compatible with EV3 Motor 4-way RJ11 Motor & 2-way Servi Interface 900m

Description:

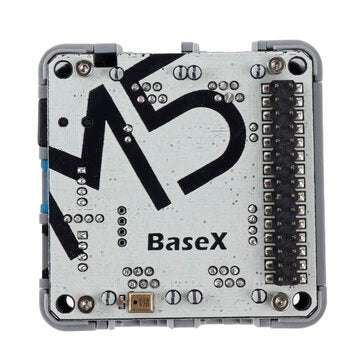

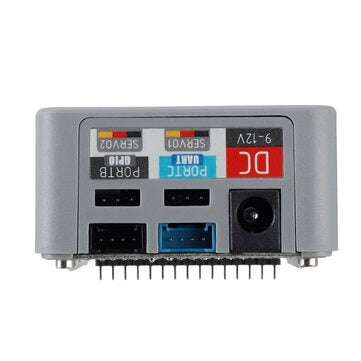

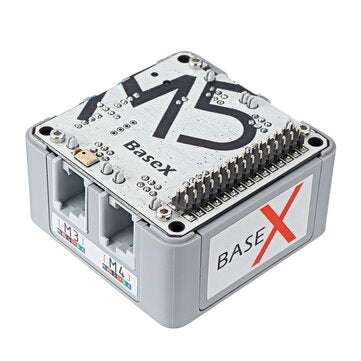

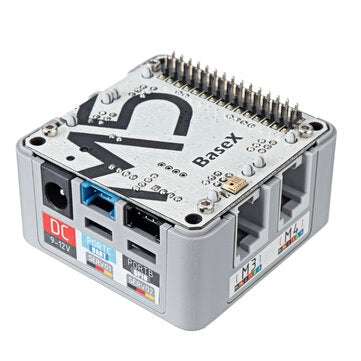

BaseXis a special base compatible with LEGO EV3 motor. The structure design is similar to base26, supporting multiple ways of fixation, and an additional LEGO connection base is provided. When building the LEGO structure, Basex can be easily embedded in the work. Basex can be connected to 4-way (RJ11) LEGO motor at the same time, supporting angle / speed reading and control, and perfectly compatible with the original motor functions. In addition, the base provides two servo interfaces, which can directly control the rotation angle of the servo.There is a motherboard PDM microphone for sound collection. In order to adapt to different use scenarios, a UART interface (16 / 17) and a GPIO interface (26 / 36) are provided to make access to various sensors more flexible. A 900mah battery is built in the base, which can be charged through the usb-c interface of m5core to extend the endurance. In order to improve the driving ability of the interface, the base is equipped with a DC power socket, which can be powered by an external 9-12v power supply to provide a stable power supply for the motor.

Features:

• 4-way RJ11 LEGO motor interface (total maximum output current 2A)
• 2-way servo interface (total maximum output current 2A)
• 1-way UART
• 1-way GPIO
• On board PDM microphone (GOIO 34)
• On board DC-DC conversion (9 ~ 12V,independent power supply for the motor only)
• Built in 900mAh battery
• Multiple fixing methods / LEGO hole connection support

Size and Weight:

• Product Size: 54mm * 54mm * 32mm
• Product Weight: 64g

Application:

• Encoder motor / servo controller
• LEGO DIY intelligent control

I2C Control instructions:

I2C Slave address: 0x22

I2C Motor address:

Mode config method: Motor address + nByte
