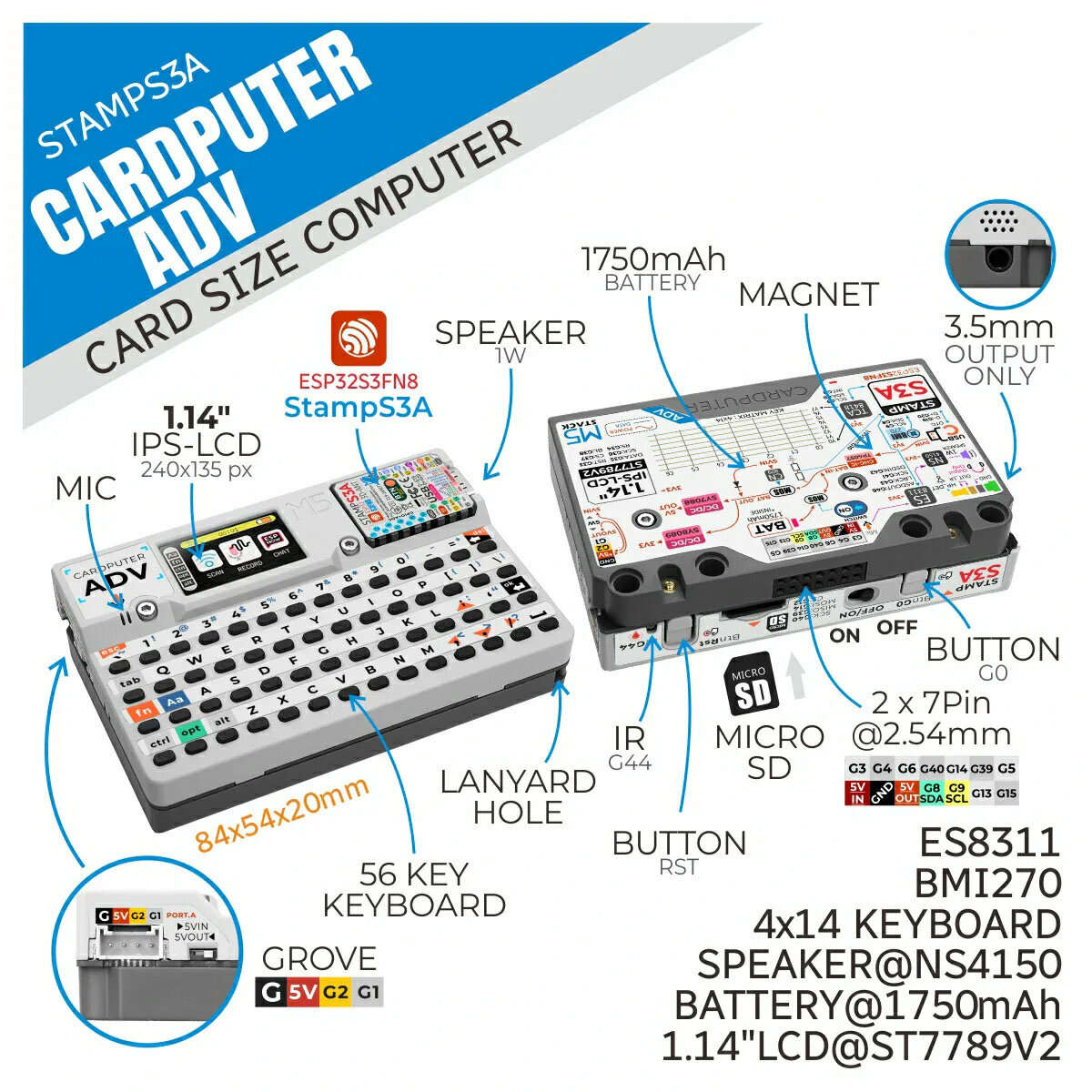

Description:Cardputer-Adv is a programmable card-sized computer powered by the Stamp-S3A core module (based on ESP32-S3FN8). It integrates a 1.14' LCD display and a 56-key minimalist keyboard for convenient interaction and input operations.In terms of audio, it features an ES8311 audio codec, a high SNR MEMS microphone, an NS4150B amplifier, and a 1W speaker, providing high-quality audio input and output capabilities. Additionally, it has a 3.5mm audio output jack for connecting external headphones or speakers.Internally, it is equipped with a 1750mAh high-capacity lithium battery, combined with a low-power design and an independent power switch to ensure good battery life. It integrates a 6-axis motion sensor BMI270, an infrared emitter, a microSD card slot, and also provides an HY2.0-4P Grove port and an EXT 2.54-14P expansion bus for connecting sensors and other peripherals.The base contains magnets for metal attachment and is compatible with LEG0 hole extensions. This product is suitable for quick function prototyping, industrial control, home automation, and other scenarios.Features:Stamp-S3A core controller56-key keyboard1.14' LCD display160gf comfortable keypress feelES8311 audio codecHigh SNR MEMS microphoneNS4150B amplifier + 1W speaker3.5mm audio output interfaceInfrared emitter6-axis motion sensor BMI270HY2.0-4P Grove portEXT 2.54-14P expansion busmicroSD card slotBuilt-in 1750mAh Li-ion batteryMagnetic back designLEG0 hole compatibleDevelopment PlatformArduinoIDE
UiFlow2ESP-IDFPlatformIO

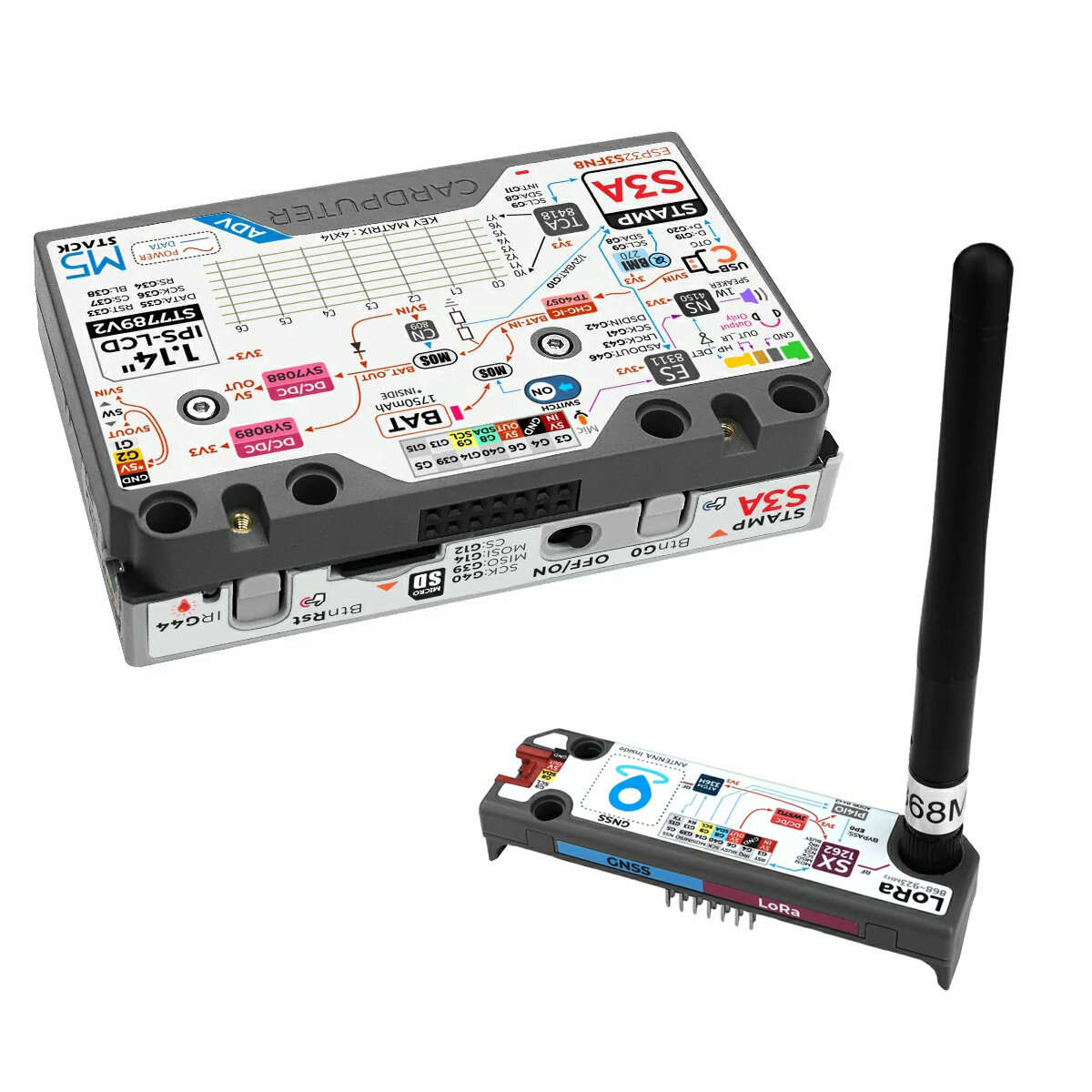

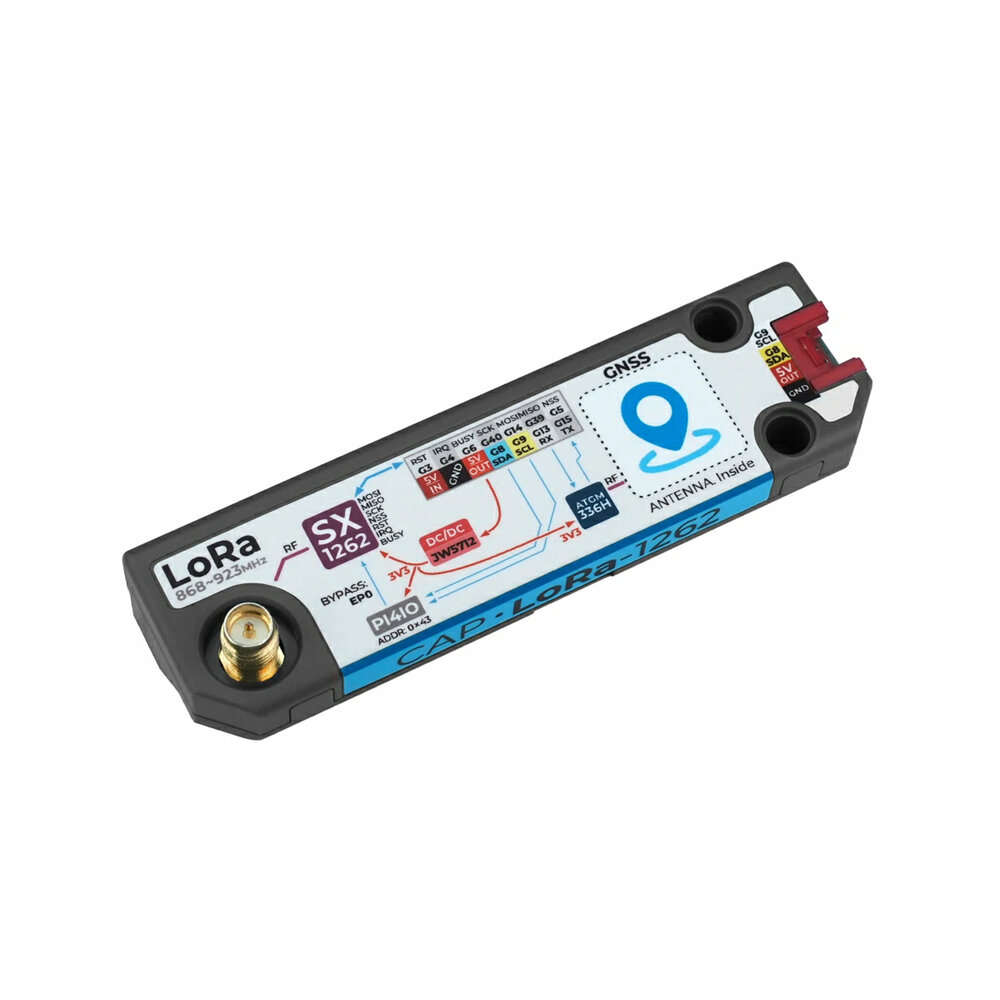

Cap LoRa 1262 Specifications:
LoRa Module: SX1262
Frequency Range: 868—923 MHz
Maximum Data Rate: 300 kbps
LoRa Interface: SPI
LoRa Antenna Dimensions: 108 × 9.3 mm, SMA connector (internal hole), 3 dBi gain
Output Power: +22 dBm
Receiving Sensitivity: -147 dBm (low-rate LoRa mode)
Operating Voltage: DC 5V @ 163.4 mA
Communication Modes: FSK/GFSK/MSK/LoRa/OOK
GPS Module: ATGM336H-6N & AT6668
GPS Interface: UART, default 115200bps@8N1
Satellites Systems Supported: GPS/QZSS/BD2/BD3/GAL/GLO
BDS: B1I + B1C
Frequency Bands: GPS/QZSS/SBAS: L1, GALILEO: E1, GLONASS: R1
Channels: 50 channels
Positioning Accuracy: <1.5 m (CEP50)
Position Update Frequency: Max 10 Hz
Protocol: NMEA 0183 4.1
GPS Sensitivity:
Tracking: -162 dBm
Acquisition: -160 dBm
Cold Start: -148 dBm
Startup Times:
Cold Start: 23 s
Hot Start: 1 s
Power Consumption: 33.1 mA
Product Dimensions: 84.0 × 24.0 × 15.2 mm
Product Weight: 48.6 g
Package Includes:1 x Cardputer-Adv
1 x LoRa 1262Applications:Rapid prototyping and functional verificationIndustrial control and automationEmbedded systems development and learningWireless communication and IoT projects
Specifications:
| Specification | Parameter |
| SoC | ESP32-S3FN8 @ Dual-core Xtensa LX7, up to 240MHz |
| Flash | 8MB |
| External Storage | microSD |
| Display | [email protected]', 240 x 135px |
| Keyboard | 56 keys (4 x 14) |
| Key Actuation | 160gf |
|
