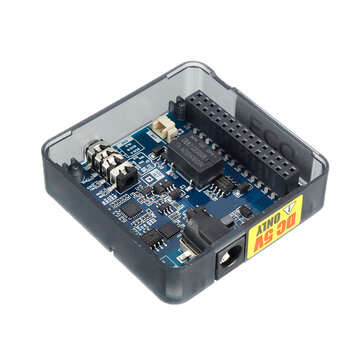

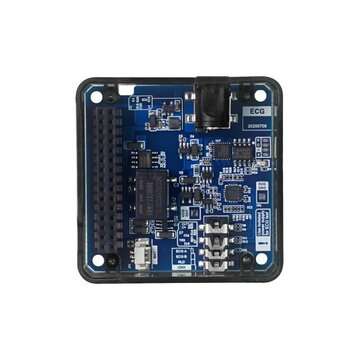

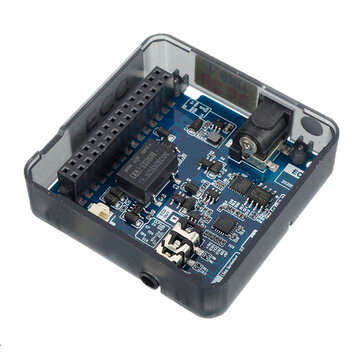

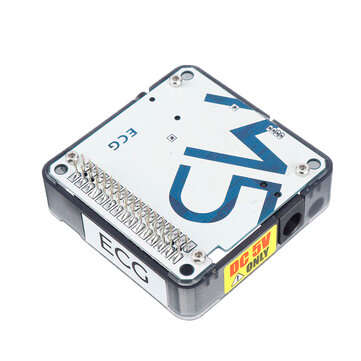

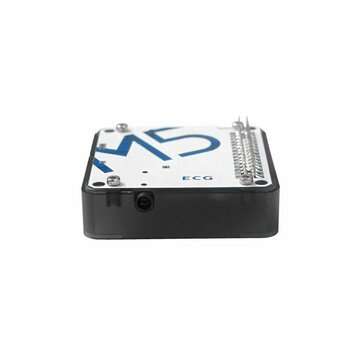

M5Stack ECG Heart Rate Monitor Electrocardiogramunit Detect Heart Rate and Output Cardiogram Signa

Description:

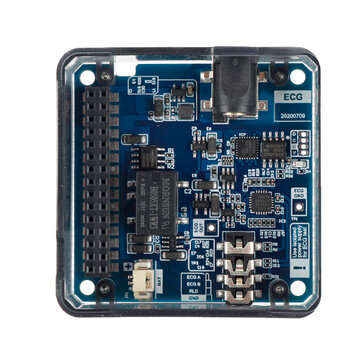

ECG is a heart rate monitor (electrocardiogram) unit???it can detect the heart rate and output a cardiogram signal. Electrocardiogram (ECG) is a technology that uses an electrocardiograph to record the changes in the electrical activity of the heart during each cardiac cycle. At the signal acquisition end, this ECG module integrates the AD8232 single-lead heart rate monitoring at the front end, the collected ECG signal is processed by the AD8603 low-pass filter, and the 10bit-ADC (AD7476) performs analog/digital signal input to STM32 (built-in heart rate statistics) Algorithm) for signal analysis. Finally, the processing results are output in the form of serial communication to facilitate the acquisition and display of the main control device. In terms of signal output, it adopts front-end/digital full isolation design to enhance equipment stability and safety.
Caution:?

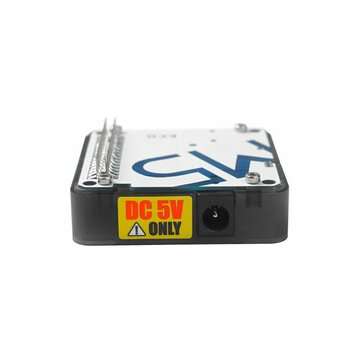

This product only allows the use of 5V power input. Please strictly abide by the power input standard when using this product to avoid damage to the equipment or injury.
Features:
ADI front end integration (high signal gain G=100, with DC blocking capability) Serial Data input Heart Rate Statistics monitoring Front end/digital fully isolated design Ultra Precision Op Amp
Package Included:

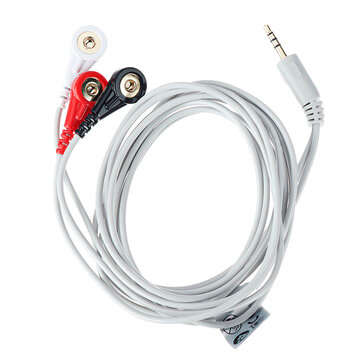

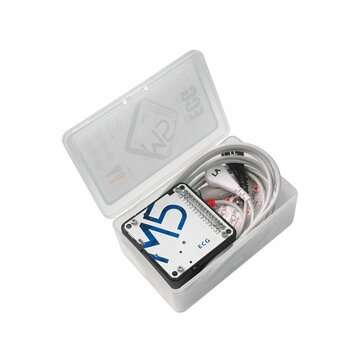

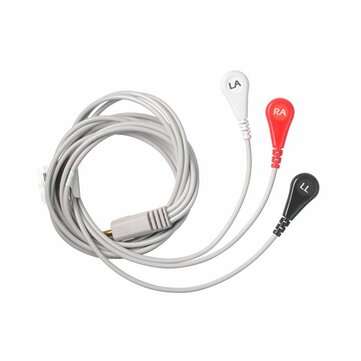

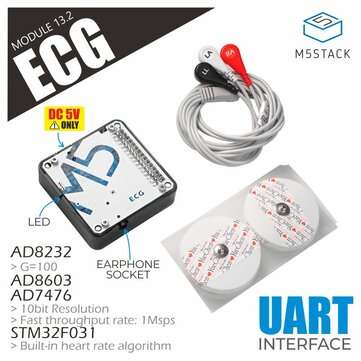

1x ECG Module 3x ECG electrodes 6x Adhesive Pads
Applications:
Bioelectric signal acquisition Portable ECG Exercise Tracker
Specification:

Resources	Parameter
Commuincation?Method	UART?115200bps
AD8232	High?signal?gain?G=100?|?With?DC?blocking?capability?|?Common?mode?rejection?ratio:?80?dB?(DC?to?60?Hz)
AD7476	10bit-ADC?|?SPI?Interface?|?Fast?throughput?rate:?1?MSPS?|?vref?2.8v
Net?weight	18g
Gross?weight	101g

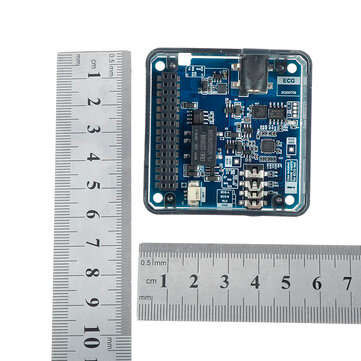

Product?Dimension	54*54*13.2mm
Package?Dimension	105*65*40mm

Related Link Datasheet

Tool

When using the PC-side heart rate reading tool, the device needs to burn the serial port transparent transmission firmware(Before uploading, please change the serial port initialization pin to the actually connected pin) and forward the data to the PC.
Schematic:
Example:
Arduin IDE
Pin Map:

M5Stack	TX/G13	RX/G5	5V	GND
ECG	RX	TX	VIN	GND
