M5Stack Goplus2 DC Motor and Servo Driver Module STM32F0 IR Transmitter and Receiver Suit for ESP3

20 available / new
R784.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641128299
Description:

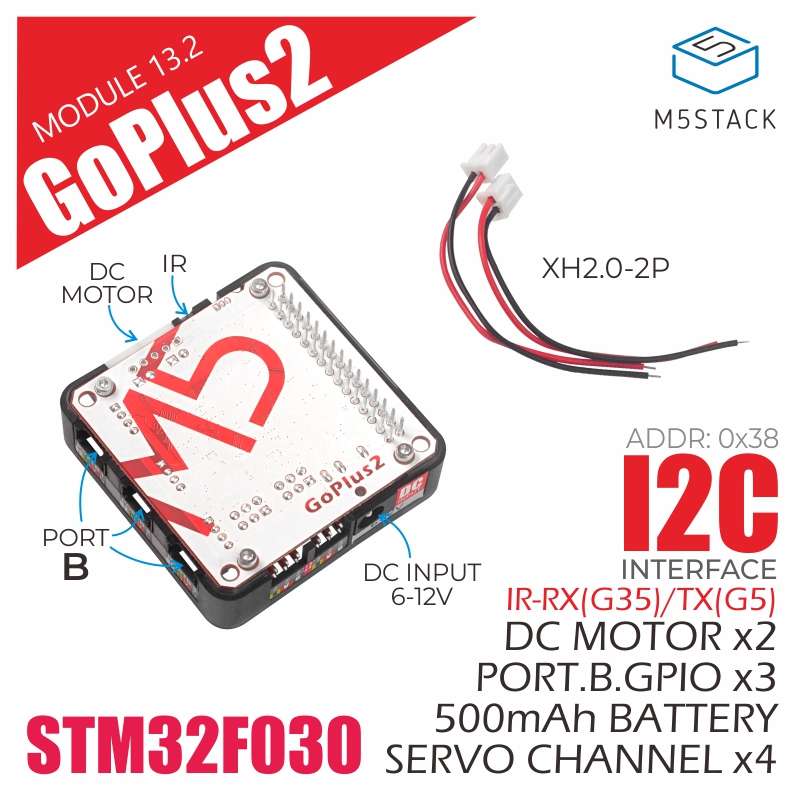

GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with 2-way DC motor drive interface and 4-way servo drive interface. Three PORT-B interfaces(Analog Input,Digital Output,Digital Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and receive. In order to meet the requirements of multi-channel interface power supply at the same time, a DC power interface is provided for external power supply, battery can be charged through the M5Core with USB-C.
Communication protocol: IIC(0x38)
Features:
2x DC motor interface 4x Servo interface IR transmit & receive 3x expand PORT B STM32F030C8T6 Built in 500mAh battery
Package Included:
1x GoPlus2 Module 2x DC Motor Cable
Application:
Actuator / motor driver Acquisition and control of multiple input and output signals Infrared controller DIY Toy base
Specification:
ResourcesParameter
MaincontrolchipSTM32F030C8T6
ExpandinterfaceDCMotorx2,PORT-Bx3,Servox4
motordriveHR8833H-bridgedrive
IRTransmitandReceive
Battery500mAh
NetWeight38g
GrossWeight58g
ProductSize54*54*13mm
PackageSize95*65*25mm

Schematic:
PinMap:
M5Core(GROVEA)GPIO35GPIO5
IRReceiveTransmission

Protocol Manual:

Example:
