Description:

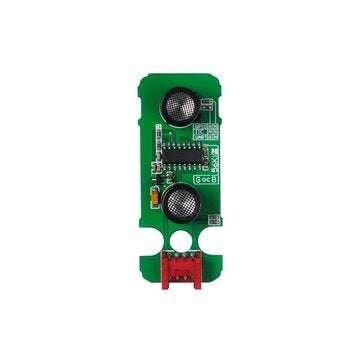

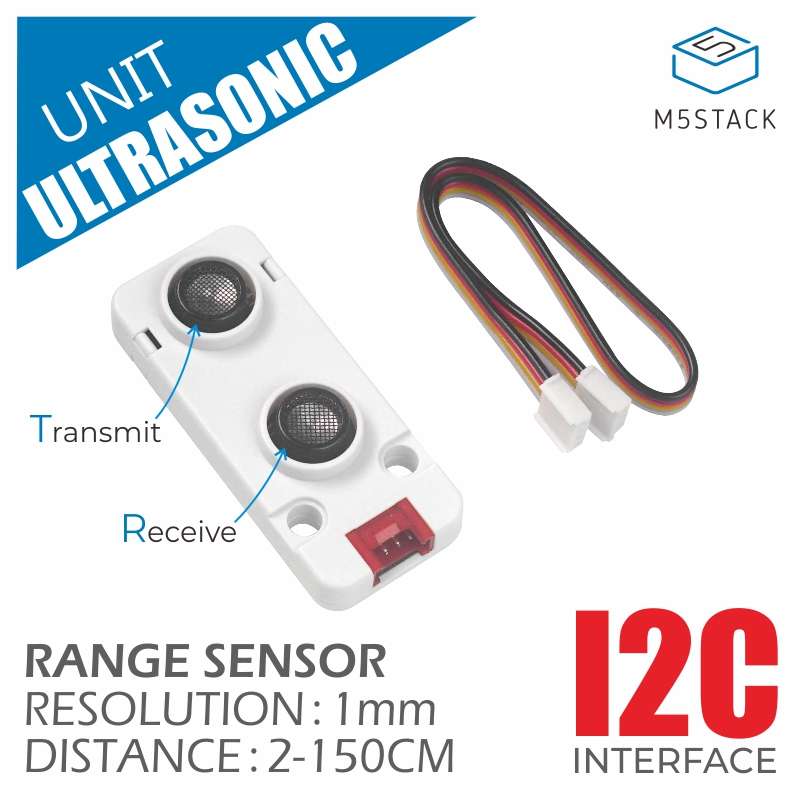

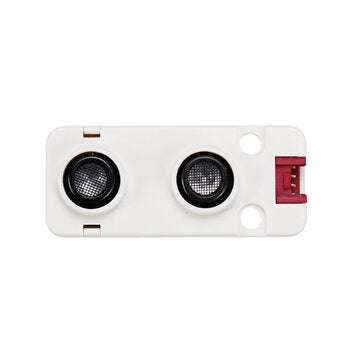

Ultrasonic is an ultrasonic distance measuring sensor unit, with the capability of simultaneous reception and transmission. The ultrasonic probe has a sound frequency of 40KHz, a direction angle of ±20 ᆪ and an accuracy of 1mm. The internal part is calculated by an RCWL-9600 ultrasonic distance measuring chip, and the measurement results can be directly obtained through IIC interface (0x57). The effective distance is 20-1500mm.
Features:
Split transceiver Effective distance 20-1500mm Wide angle range IIC communication, result output directly
Package Included:
1x Ultrasonic Unit 1x Grove Cable(20cm)
Specification:
ResourcesParameter
RangingchipRCWL-9600
Measuringdistance20-1500mm
Soundpressureleveloftransmitter108dB
Accuracy1mm
Blindarea20mm
Receiversensitivity-68dB
NetWeight9g
GrossWeight23g
ProductSize56*24*12mm
PackageSize60*55*16mm

Related Link:

Example:
