SELECTED OPTION:
LIGHT COLOR: WHITE

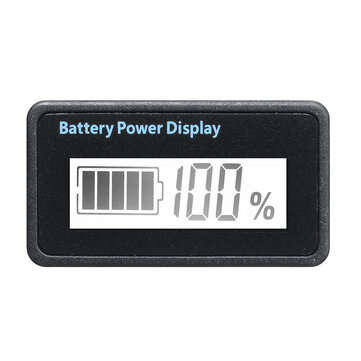

Description: GY-H5 is a battery capacity indicator voltmeter.It can quickly detect the capacity of lithium batteries and lead-acid batteries in various instruments,measuring equipment,mobile portable devices,sweepers,balance cars,battery cars,etc. It can set battery type and battery quantity to meet your measure require.
Features: 1. Adjustable battery type 2. Adjustable battery quantity 3. Suitable for lithium ion batteries 4. Suitable for lead-acid batteries 5. Display voltage value 6. Support power saving mode 7. HD LCD display screen

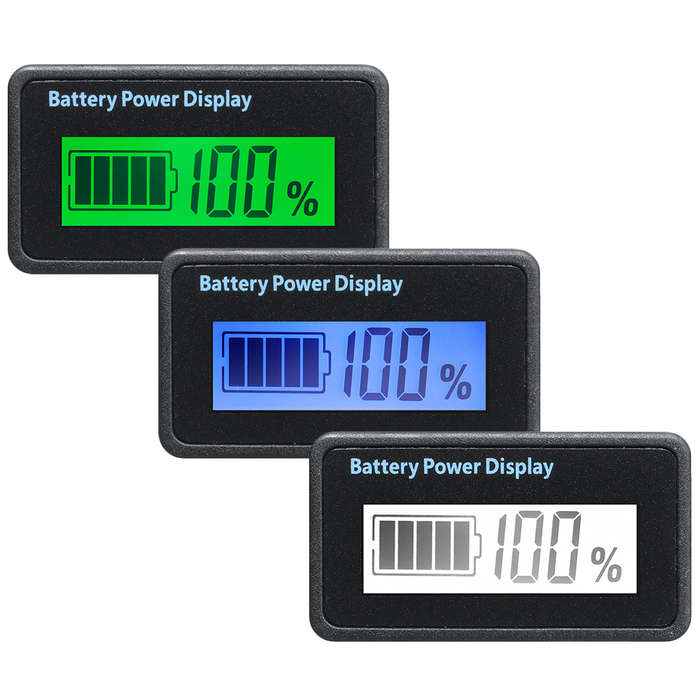

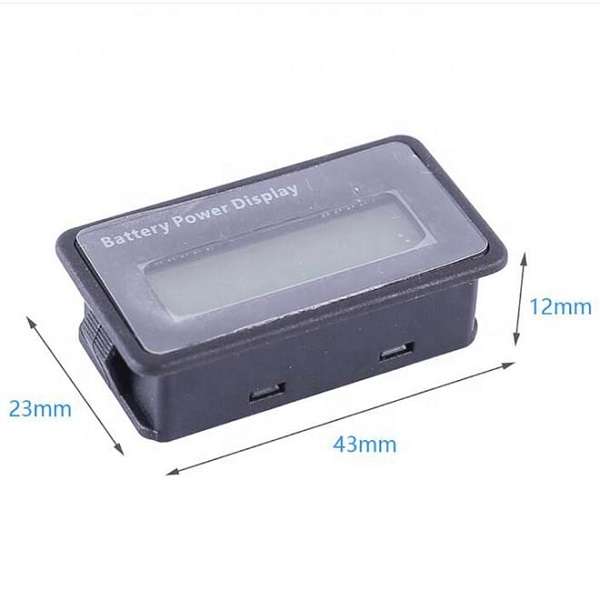

Parameters: 1. Product name: GY-H5 Battery Capacity Indicator 2. Product number: GY-H5 3. Measured Voltage:DC 5V-70V 4. Work Current: 5mA 5. Display: HTN LCD Display Screen 6. Backlight color: Green/Blue/White 7. Lithium ion battery Rated voltage: 3.7V 8. Lead-acid battery Rated voltage: 12V/24V/36V/48V 9. Lithium ion battery Quantity: 2pcs~17pcs 10. Lead-acid battery Quantity: 1pcs 11. Terminal Type: PH2.0mm-2P 12. Working Temperature range: -20a??~85a?? 13. Working Humidity Range: 5%-100%RH 14. Size: 43*23*12mm 15. Length:3 0cm

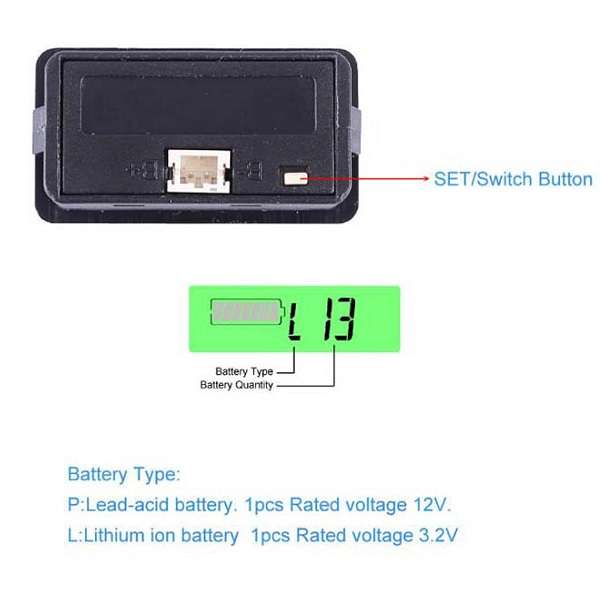

Set Method: 1.Step 1: Keep press button. 2.Step 2: Connect to battery and enter to set interface. 3.Step 3: Short press button to switch select battery type and battery quantity at the same time(P means Lead-acid battery. L means Lithium ion battery). 4.Step 4: Short press button to switch battery quantity after selected type. 5.Remove power to save parameters. 6.Re-power and display battery capacity percentage or battery voltage. 7.Short press Function button to switch display percentage or voltage or in turns or turn OFF screen.
Note: 1.The battery type and number of batteries must be selected correctly, otherwise the measurement results will be inaccurate. 2.Please read use manual and description before use.
Application: 1.Mobile portable device 2.Balance car 3.Electric car 4.Vacuum cleaner 5.Measuring equipment 6.Medical equipment 7.Instrumentation
Package included: 1 x GY-H5 Battery Capacity Indicator 1 x PH2.0mm-2P Cable
