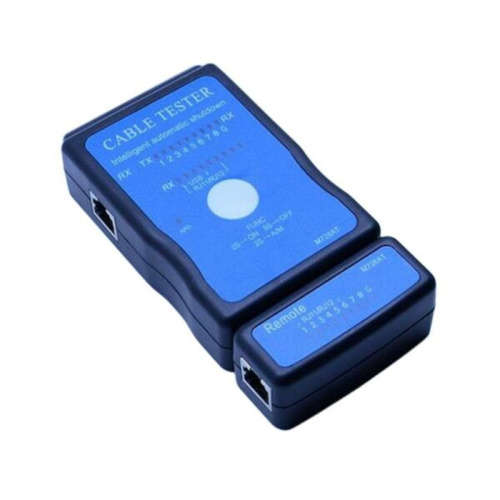

M726AT Network Cable Tester

Product Description

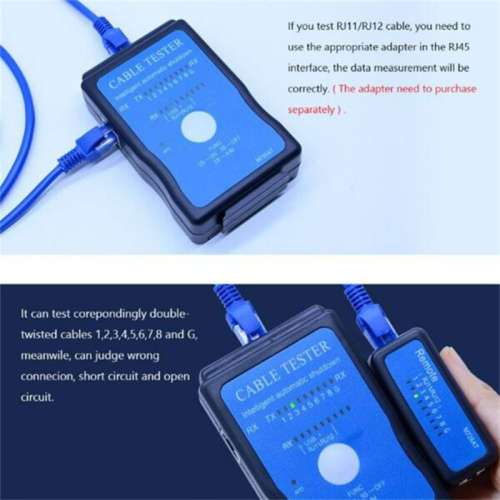

-Test one by one: Test the twisted pair 1, 2, 3, 4, 5, 6, 7, 8, and G wire pairs one by one (pairs), and you can identify which pair (pair) is wrong or short-circuited. Go and open the way.

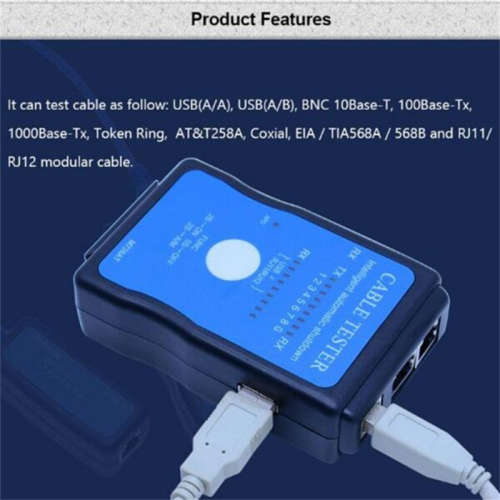

-Test object: LAN/USB cable tester can test the following cables: USB(A/A), USB(A/B) and RJ11, RJ45 modular cables.

- Switch use: Turn the switch to TEST, and the test will restart from 1 light. Enter the manual jog cycle, press "TEST" to step one lamp, and so on.

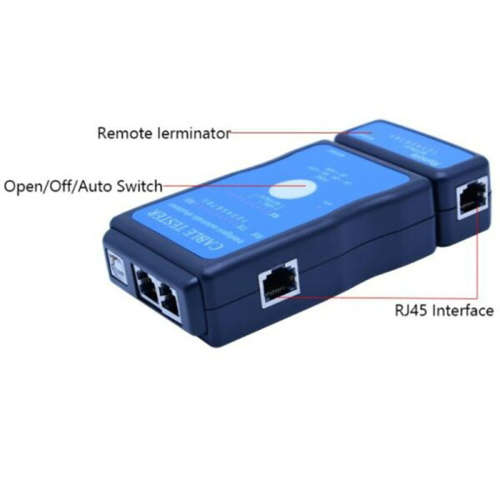

- Connecting cables: If you want to test BNC, coaxial, RCA modular cables, if you want to test cables mounted farther away on a patch panel or wall plate (remote terminators can be used), you can use connecting cables.

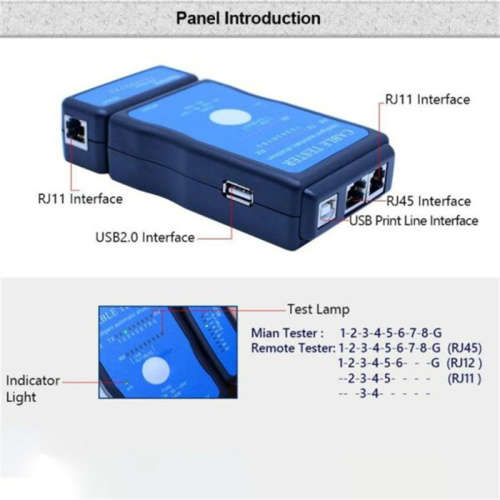

Indicator light: turn on the power, the POWER red light is on, turn the switch to AUTO automatic test, the AUTO green light flashes, insert the network cable into the main tester and the remote tester respectively, the host indicator light flashes from 1 to G in turn.

Display: LED indicator

Test line: RJ11, RJ45

Power supply: 9V battery

Power consumption: 25MA

Package includes:

1 x M726 Network Cable Tester

1 x Manual
