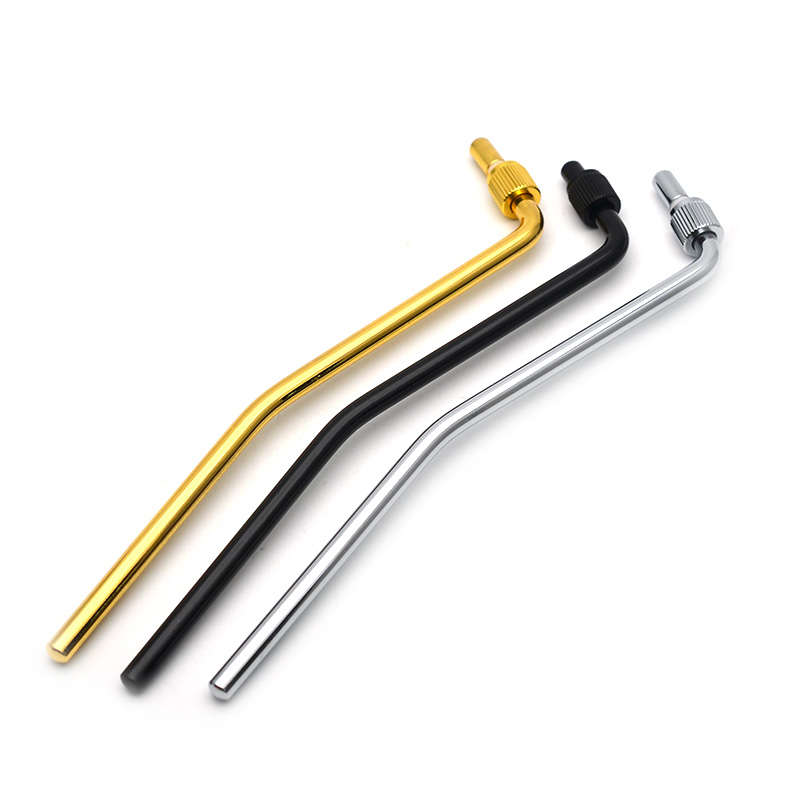

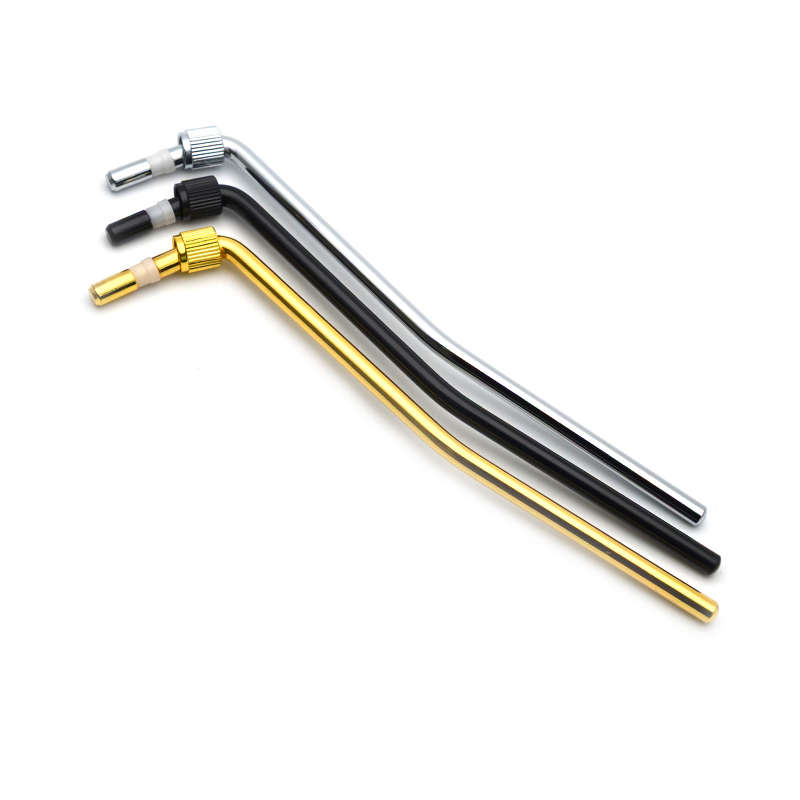

M9 Whammy Bar for Floyd Rose Type Tremolo Bridge System

Arm Length:170mm (approx.).
Arm Diameter: 6mm (approx.).
Screw thread diameter: 9mm (approx.)

Package Includes:
1X Tremolo Arm

There are many different versions of Floyd Rose bridges as well as Floyd Rose style bridges, not all whammy bars are interchangeable due to different thread sizes and metric/imperial types. This one fits "Floyd Rose Special" found on many Ibanez guitars and has fit some Cort Floyd Rose Style bridges and a few other Floyd Rose bridges but we can not be sure it will fit your guitar.

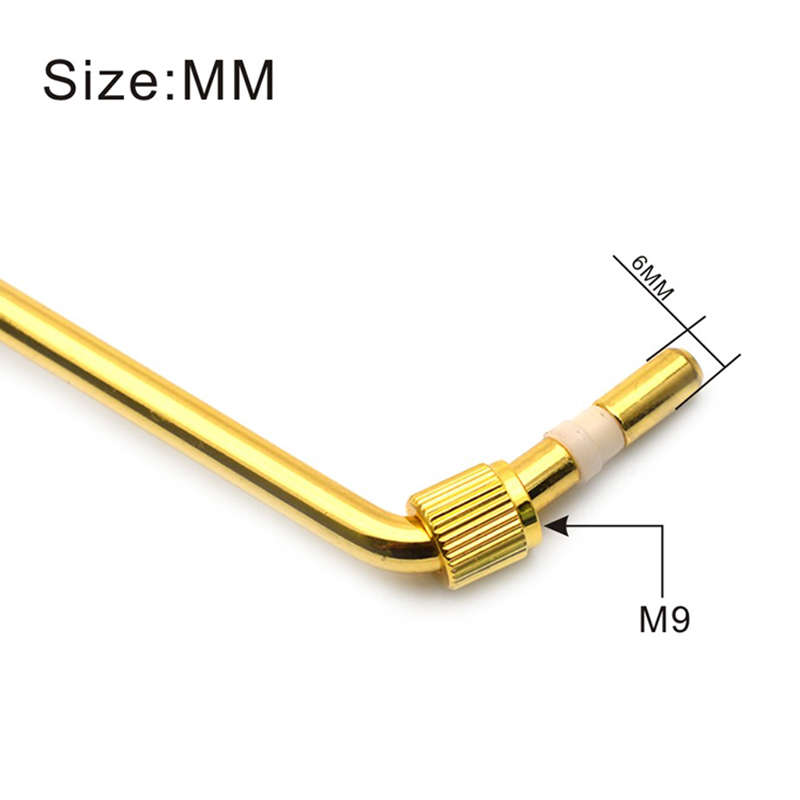

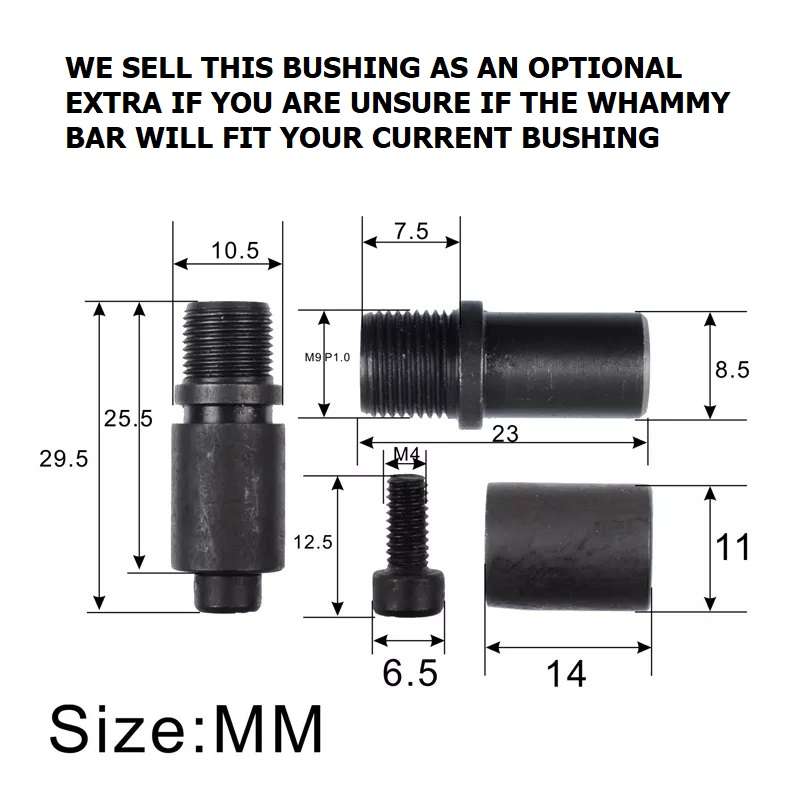

Please see full measurements in the picture. This does not include the mounting bushing that goes at the bottom of the bridge, if you are unsure if this thread will fit the bushing of your current bridge then you could always purchase a bushing/socket from us and change your current bushing.
