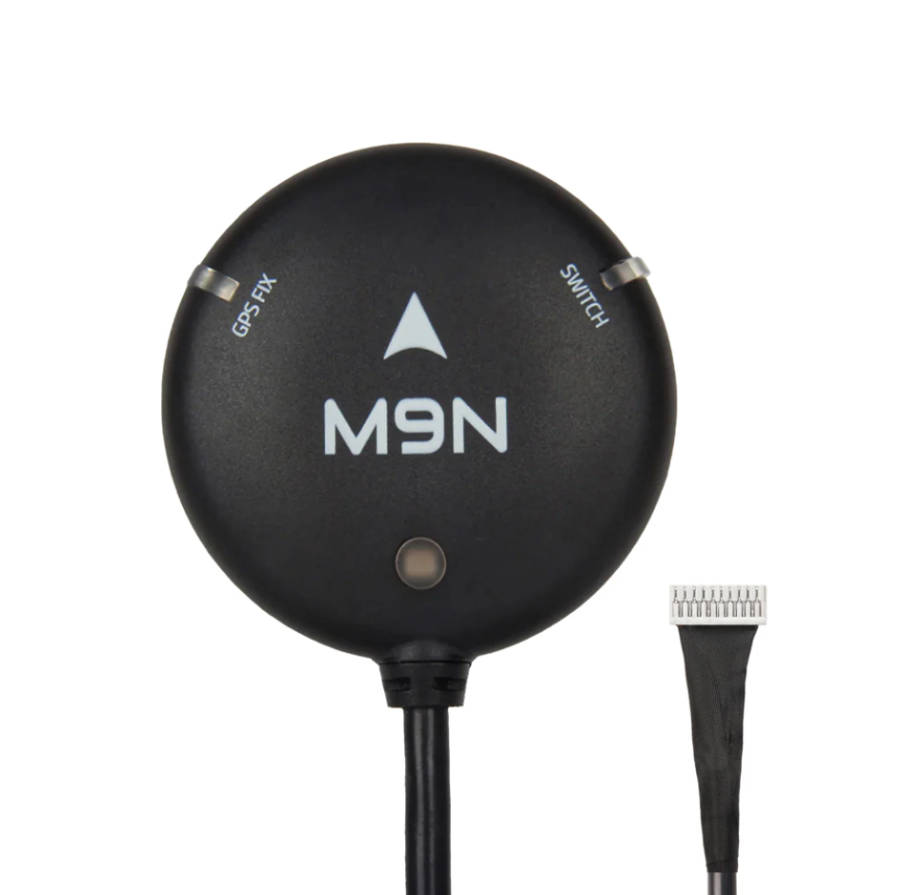

M9N GPS Standard

M9N GPS Standard

New 3 available
Only 3 left – grab it before it’s gone!
R2,023.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
FlyingRobot449
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
HOL029
Bob Shop ID
667570921

Description

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Feature

  • Ublox M9N GNSS Receiver
  • Accurate Positioning
  • Fast Navigation Update Rate
  • IST8310 Compass
  • High-gain 25*25*4mm antenna
  • Internal Buzzer, Safety switch
  • Ultra Bright UI RGB LED

Note

  • The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
 Holybro M10 GPSHolybro M9N GPS
GNSS ReceiverUblox M10Ublox M9N
Number of Concurrent GNSSUp to 4 GNSSUp to 4 GNSS
BeiDouBeiDou
GalileoGalileo
GLONASSGLONASS
GPSGPS
QZSSQZSS
Frequency BandGPS L1GPS L1
Galileo E1Galileo E1
GLONASS L1GLONASS L1
BeiDou B1BeiDou B1
SBAS L1SBAS L1
QZSS L1QZSS L1
CompassIST8310IST8310
Output ProtocolUBX (U-blox)UBX (U-blox)
NMEANMEA
Accuracy2.0m CEP1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS),Up to 25 Hz (4 concurrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation SystemEGNOS, GAGAN, MSAS and WAASEGNOS, GAGAN, MSAS and WAAS
QZSS: L1SQZSS: L1S
Default Baud Rate115200115200
Input Voltage 4.7-5.2V4.7-5.2V
Connector Type
JST-GH-10pin
JST-GH-6pin
Molex 1.25mm 6pin & 4pin & 3pin
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB
Power consumptionLess than 200mA @ 5VLess than 200mA @ 5V
Operating Temperature-40~80°C-40~80°C
Dimension50 x14.4 mm50 x14.4 mm
Weight32g 32g
Cable Length26cm (42cm cable purchase separately)26cm (42cm cable purchase separately)
OtherTri-color LEDTri-color LED
Onboard BuzzerOnboard Buzzer
Safety SwitchSafety Switch
LNA MAX2659ELT+ RF AmplifierLNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitanceRechargeable Farah capacitance
Low-noise 3.3V regulatorLow-noise 3.3V regulator

    Note

    • The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
    • Ardupilot User: If unable to perform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

    PIN MAP

    Difference between the three cable options

    SKU12027 - Holybro M9 GPS (JST GHR1.25mm 10pin cable):

    • This option is the most common; it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin "GPS Module" or "GPS1" input port.

    SKU12029 - Holybro M9 Secondary GPS (JST GHR1.25mm 6pin cable):

    • This connector can be used on Pixhawk Standard Flight Controller 6-pin"UART & I2C" or "GPS2" input port as a secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

    SKU12028 - Holybro M9 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

    • This SKU is no longer in production. For customers who need a GPS with a cable that is compatible with Pix32 & Pix32 & Pixhawk1/2.4.6/2.4.8, please visit the GPS extension cable product page to purchase and install the cable separately.

    Reference Link:

    • Holybro Documentation
    • Ardupilot IST8310 Compass Orientation
    • Dimension
    • 3D CAD File Downloads

    Package Includes:

    • 1x M9N GPS Module
    • 1x Fixed Carbon Fiber GPS mount

    Spare Parts & Accessories

    • GPS Extended Length Cable
