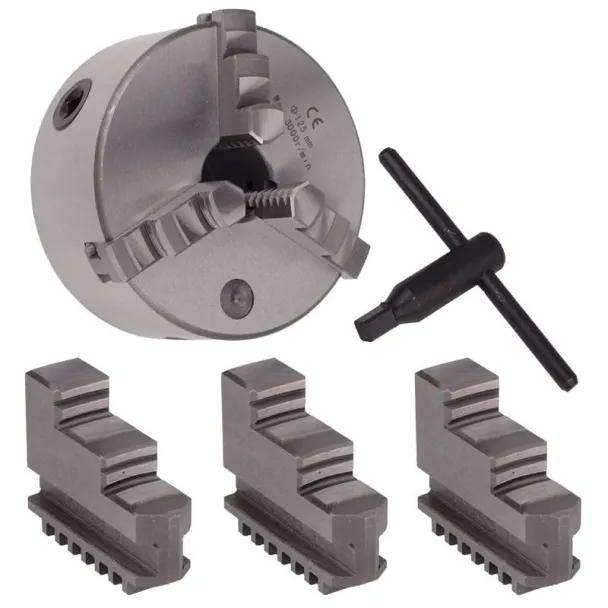

MAC AFRIC 100 mm 3-Jaw Self-Centering Chuck
The MAC AFRIC 100 mm 3-jaw self-centering chuck is a precision-engineered accessory for engineering lathes, designed to provide secure and balanced clamping of cylindrical workpieces. Featuring a self-centering 3-jaw design and reverse jaws, it allows for versatile workholding. A chuck key is included for fast and easy adjustments, ensuring efficiency and accuracy during machining operations.
Features
High-precision self-centering 3-jaw design for balanced grip
Includes reverse jaws for versatile workholding
Comes with a chuck key for quick and easy adjustments
Suitable for standard engineering lathe machines
Durable construction for professional workshop use
Specifications
Chuck Diameter (D): 100 mm
Registration Recess Diameter (D1): 72 mm
Bolt Circle Diameter (D2): 84 mm
Center Hole (D3): 22 mm
Registration Recess Depth (h): 3 mm
Max Height (H): 74.5 mm
Body Thickness (H1): 55 mm
Number of Bolts: 3
Bolt Size: M8
Maximum RPM: 3,000
Handle Length: 160 mm
Possible Applications
Holding cylindrical workpieces for turning and facing
Precision machining on engineering lathes
Workshop and industrial metalworking tasks
