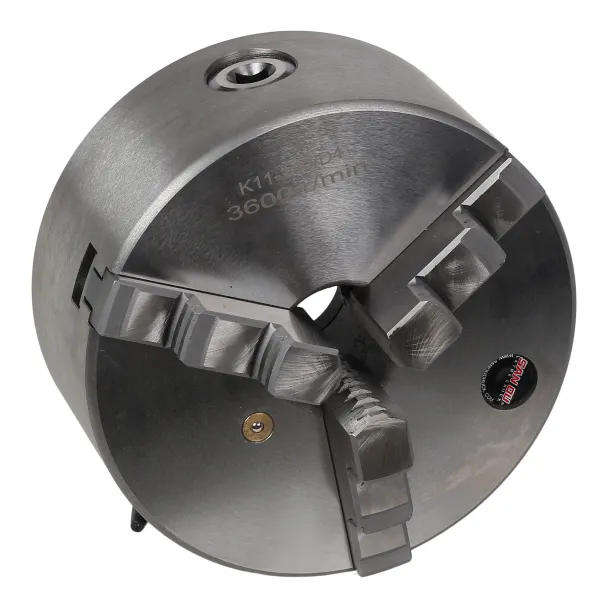

MAC AFRIC 160 mm 3-Jaw Self-Centering Chuck with Camlock Mount
The MAC AFRIC 160 mm 3-jaw self-centering chuck is designed for precision and reliability, ideal for conventional turning lathes. Made from high-quality cast iron, it features a direct Camlock mount compliant with DIN 55029 standards. The chuck includes both hard inside and hard outside solid jaws, providing versatility for various clamping tasks. Its self-centering design ensures efficient and accurate workholding, making it a dependable addition to any metalworking setup.
Features
High-quality cast iron construction
Camlock direct mount system
Self-centering mechanism for consistent workpiece clamping

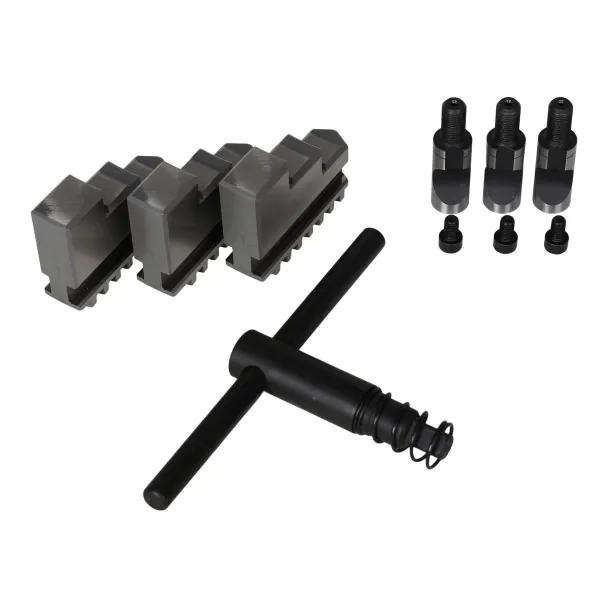

Includes hard inside and hard outside solid jaws
Compatible with conventional lathes
Specifications
Chuck Diameter: 160 mm
Registration Recess Diameter (D1): 63 mm
Bolt Circle Diameter (D2): 82 mm
Center Hole Diameter (D3): 45 mm
Registration Recess Depth (h): 0 mm
Body Thickness (H1): 74 mm
Number of Bolts: 3
Maximum RPM: 2,500
Handle Length: 150 mm
Possible Applications
General turning on conventional lathes
Machining of round or hexagonal workpieces
Industrial and workshop applications requiring repeatable accuracy
