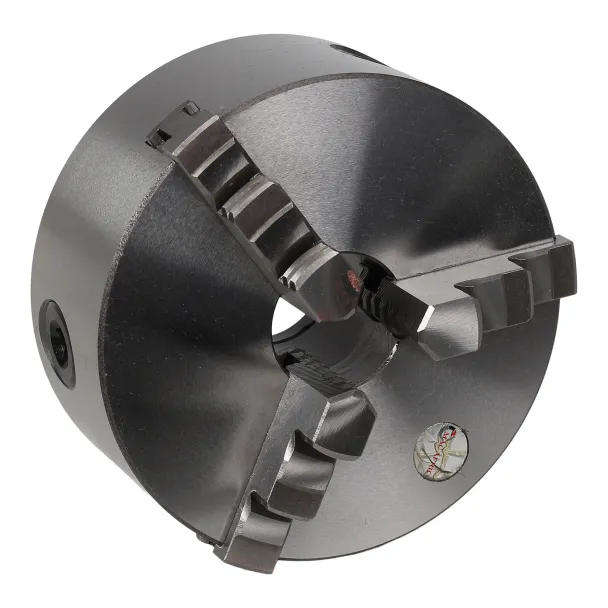

MAC AFRIC 160 mm 3-Jaw Self-Centering Chuck
The MAC AFRIC 160 mm 3-jaw self-centering chuck is a high-precision accessory designed for use with engineering and metalworking lathe machines. Its self-centering 3-jaw mechanism ensures balanced and secure clamping of cylindrical workpieces, while the inclusion of reverse jaws provides added versatility. The chuck also comes with a chuck key for fast and simple adjustments, making it ideal for precision turning operations in professional workshops or industrial environments.
Features
High-precision self-centering 3-jaw chuck
Balanced and secure clamping for cylindrical workpieces

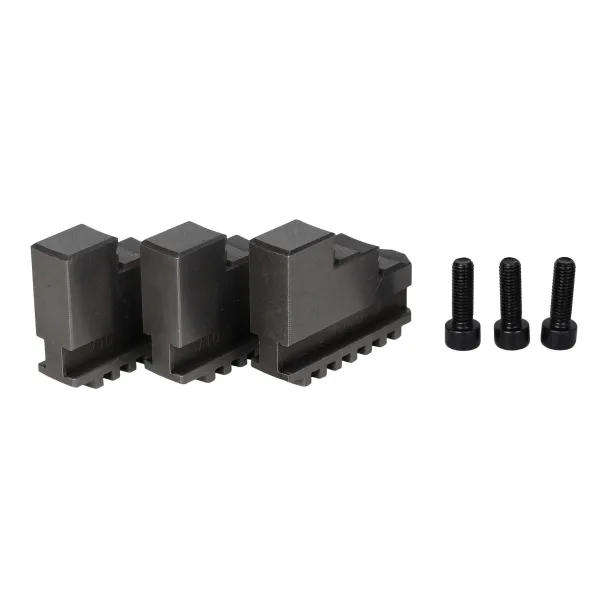

Includes reverse jaws for increased flexibility
Comes with chuck key for quick adjustments
Suitable for engineering and metalworking lathes
Specifications
Chuck Diameter (D): 160 mm
Registration Recess Diameter (D1): 130 mm
Bolt Circle Diameter (D2): 142 mm
Center Hold (D3): 40 mm
Registration Recess Depth (h): 5 mm
Max Height (H): 95 mm
Body Thickness (H1): 65 mm
Number of Bolts: 3
Size of Bolts: M10
Maximum RPM: 3,000
Handle Length: 160 mm
Possible Applications
Secure clamping of cylindrical workpieces for turning
Precision machining on engineering lathes
Workshop and industrial metalworking applications requiring repeatable accuracy
