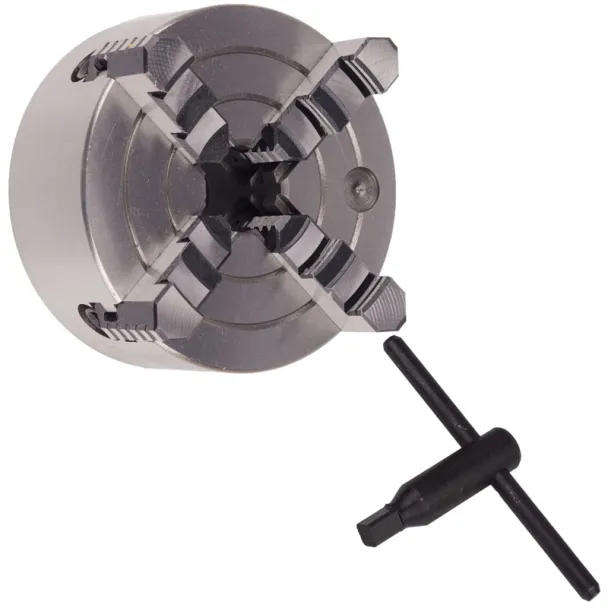

MAC AFRIC 160 mm 4-Jaw Independent Chuck
The MAC AFRIC 160 mm 4-jaw independent chuck is a high-precision accessory designed for engineering and metalworking lathes. Each of the four jaws can be adjusted independently, allowing for accurate clamping of irregular, square, or off-center workpieces. Built for versatility and precision, this chuck is a reliable choice for demanding lathe operations and precision turning tasks.
Features
High-precision lathe accessory for dependable performance
Independently adjustable 4-jaw design for versatile workholding
Ideal for off-center, non-cylindrical, or square components
Designed for engineering and metalworking lathe machines
Includes chuck key for easy operation
Specifications
Chuck Diameter (D): 160 mm
Registration Recess Diameter (D1): 65 mm
Bolt Circle Diameter (D2): 95 mm
Center Hold (D3): 45 mm
Registration Recess Depth (h): 5 mm
Max Height (H): 96.5 mm
Body Thickness (H1): 65 mm
Number of Bolts: 4
Bolt Size: M10
Handle Length: 160 mm
Possible Applications
Clamping irregular, off-center, or square workpieces
Precision turning and advanced lathe operations
Industrial and workshop metalworking tasks
