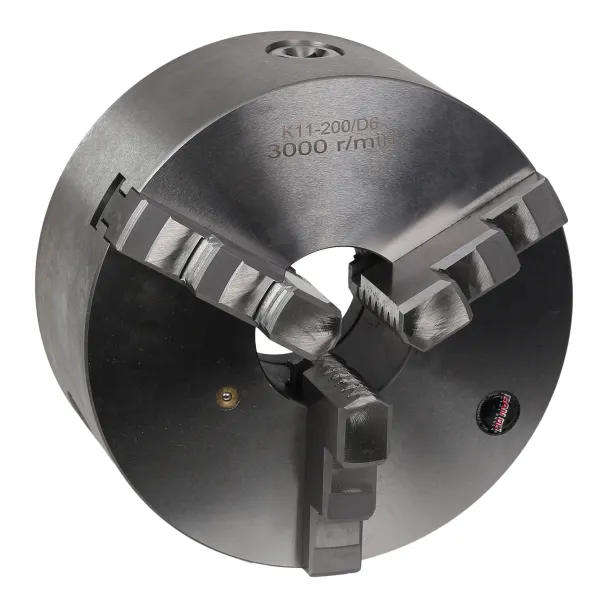

MAC AFRIC 200 mm 3-Jaw Self-Centering Chuck with Camlock Mount (K11-200/D6)

MAC AFRIC 200 mm 3-Jaw Self-Centering Chuck with Camlock Mount (K11-200/D6)

The MAC AFRIC 200 mm 3-Jaw Self-Centering Chuck with Camlock Mount (K11-200/D6) is a precision-engineered accessory ideal for use with conventional turning lathes. Manufactured from high-quality cast iron, it offers excellent rigidity, accuracy, and long-term durability. The Camlock direct mount system, built to DIN 55029 standards, ensures a quick, secure, and precise fit. Equipped with both hard inside and hard outside solid jaws, this chuck provides versatile clamping options for a wide range of workpieces, making it perfect for workshop and industrial machining environments.

Features

200 mm 3-jaw self-centering design for efficient and repeatable clamping

Camlock mounting system for quick and secure installation

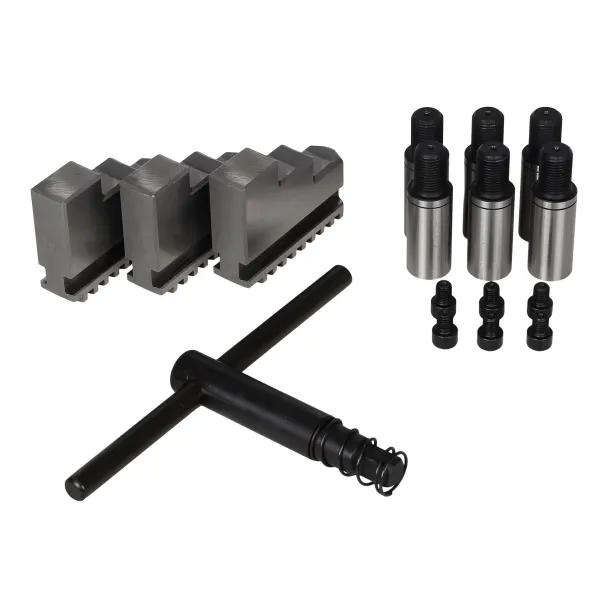

Includes hard inside and hard outside solid jaws for versatility

Manufactured from high-quality cast iron for strength and longevity

Ideal for use on conventional turning lathes

Specifications

Chuck Diameter: 200 mm

Registration Recess Diameter (D1): 106 mm

Bolt Circle Diameter (D2): 133 mm

Center Hole Diameter (D3): 60 mm

Registration Recess Depth (h): 5 mm

Body Thickness (H1): 90 mm

Number of Bolts: 3

Bolt Size: M6

Maximum RPM: 3,000

Handle Length: 150 mm

Possible Applications

Turning round or hexagonal workpieces with precision

Workshop or industrial machining requiring consistent centering

General-purpose use on conventional metal lathes
