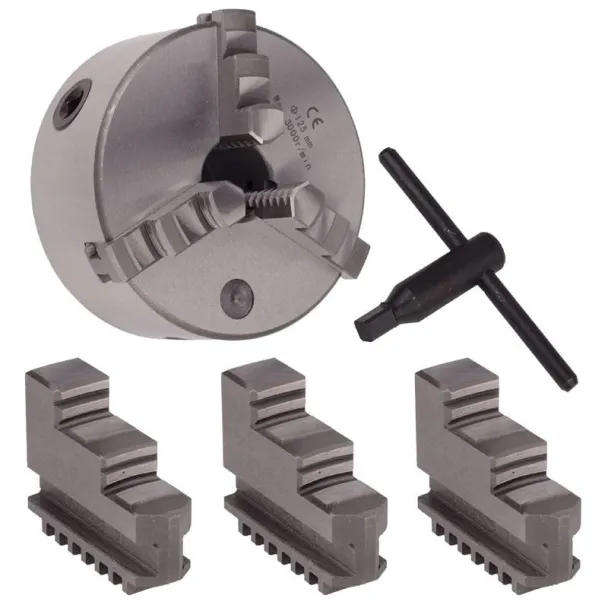

MAC AFRIC 200 mm 3-Jaw Self-Centering Chuck
The MAC AFRIC 200 mm 3-jaw self-centering chuck is a precision lathe accessory designed for engineering lathe machines. Its self-centering mechanism ensures even and secure clamping on cylindrical workpieces, while the included reverse jaws and chuck key provide quick and versatile adjustment for different turning tasks. Built for accuracy and durability, this chuck is ideal for reliable performance in both workshop and industrial settings.
Features
Precision-machined 3-jaw self-centering design
Ensures balanced clamping on round workpieces
Includes reverse jaws for extended clamping range
Comes with chuck key for fast and easy adjustments
Compatible with a variety of engineering lathe machines
Specifications
Chuck Diameter (D): 200 mm
Registration Recess Diameter (D1): 165 mm
Bolt Circle Diameter (D2): 182 mm
Center Hold (D3): 65 mm
Registration Recess Depth (h): 5 mm
Max Height (H): 109 mm
Body Thickness (H1): 75 mm
Number of Bolts: 3
Size of Bolts: M10
Maximum RPM: 3,000
Handle Length: 160 mm
Possible Applications
Turning symmetrical cylindrical workpieces
Precision machining in workshops and industrial environments
General-purpose use on conventional engineering lathes
