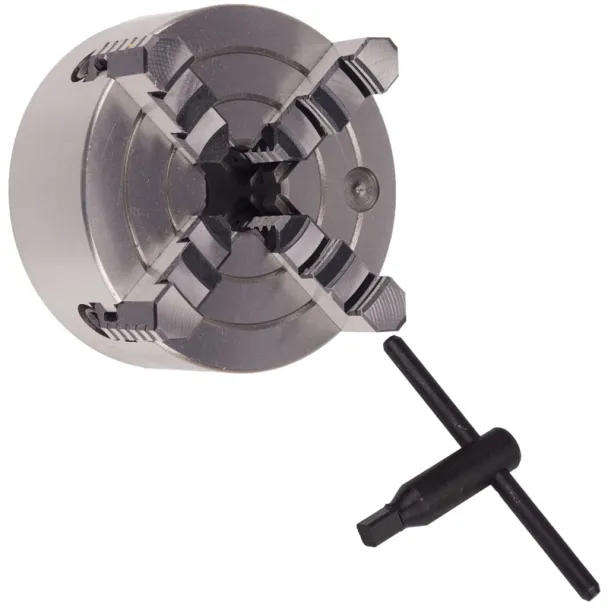

MAC AFRIC 200 mm 4-Jaw Independent Chuck with Camlock Mount
The MAC AFRIC 200 mm 4-Jaw Independent Chuck is a high-precision lathe accessory designed for irregular or asymmetrical workpieces. Each jaw adjusts independently, offering maximum flexibility and precise control when clamping various shapes and sizes. Built from durable, high-strength materials, this chuck ensures reliable performance in demanding workshop and industrial settings. Its Camlock mount interface allows for secure, quick, and accurate installation on compatible engineering lathes.
Features
Each jaw can be adjusted independently for irregular workpieces
High-precision machining capability for complex setups
Robust construction ensures long-lasting performance
Camlock mount provides secure and quick installation
Ideal for professional and industrial lathe applications
Specifications
Chuck Diameter: 200 mm
Registration Recess Diameter (D1): 63.5 mm
Bolt Circle Diameter (D2): 82.6 mm
Center Hole Diameter (D3): 56 mm
Registration Recess Depth (h): 13 mm
Max Height (H): 106 mm
Body Thickness (H1): 75 mm
Number of Bolts: 6
Maximum RPM: 2,100
Possible Applications
Machining square, irregular, or asymmetrical components
Custom workholding tasks requiring independent jaw control
Precision turning operations on engineering and industrial lathes
