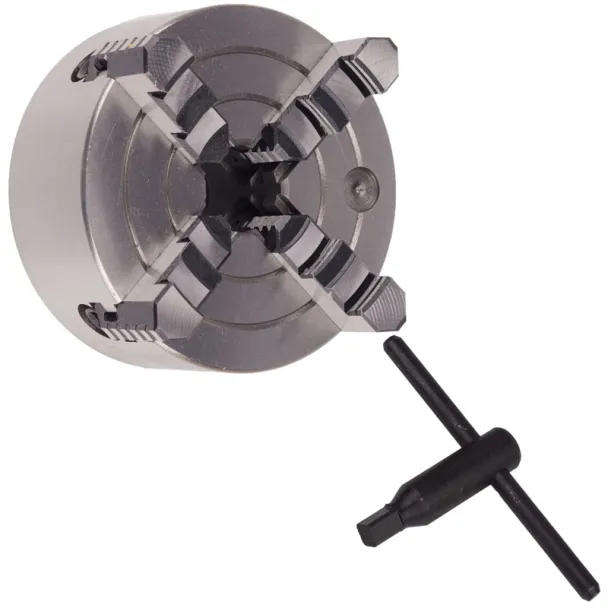

MAC AFRIC 250 mm 4-Jaw Independent Chuck with Camlock Mount (K72-250/D6)
The MAC AFRIC 250 mm 4-Jaw Independent Chuck with Camlock Mount (K72-250/D6) is designed for high-precision machining of irregular, rectangular, or asymmetrical workpieces. Each jaw adjusts independently, allowing for maximum control and flexibility during setup. Constructed from durable cast iron, this chuck provides strength and stability for demanding workshop and industrial environments. The Camlock direct mount system, built to DIN 55029 standards, ensures fast, secure, and accurate installation on conventional turning lathes.
Features
Heavy-duty 4-jaw independent chuck for versatile clamping
Durable cast iron construction ensures long service life
Camlock direct mount system (DIN 55029 compliant) for secure installation
Independently adjustable jaws for precision clamping of irregular workpieces
Includes hard outside solid jaws for reliable grip and performance
Specifications
Chuck Diameter: 250 mm
Registration Recess Diameter (D1): 106 mm
Bolt Circle Diameter (D2): 133 mm
Center Hole Diameter (D3): 60 mm
Registration Recess Depth (h): 0 mm
Body Thickness (H1): 90 mm
Number of Bolts: 4
Maximum RPM: 2,000
Handle Length: 200 mm
Possible Applications
Clamping square, rectangular, or asymmetrical workpieces
Precision machining tasks on conventional lathes
Industrial and toolroom metal turning operations
