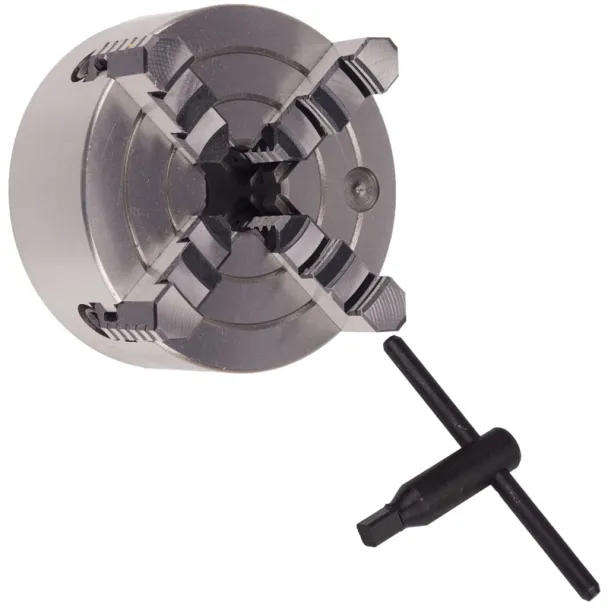

MAC AFRIC 80 mm 4-Jaw Independent Chuck
The MAC AFRIC 80 mm 4-jaw independent chuck is a compact, high-precision accessory designed for engineering lathe machines. Each jaw is independently adjustable, allowing for accurate clamping of off-center, square, or irregular workpieces. Its small size makes it ideal for fine machining and custom turning tasks, providing both precision and versatility in smaller workshop setups.
Features
High-precision accessory for engineering lathes
Four independently adjustable jaws for versatile workholding
Allows secure clamping of off-center or irregular components
Compact size, suitable for smaller lathes
Includes chuck key for convenient operation
Specifications
Chuck Diameter (D): 80 mm
Registration Recess Diameter (D1): 55 mm
Bolt Circle Diameter (D2): 66 mm
Center Hold (D3): 22 mm
Registration Recess Depth (h): 3.5 mm
Max Height (H): 56 mm
Body Thickness (H1): 42 mm
Number of Bolts: 4
Bolt Size: Not specified
Maximum RPM: 4,800
Handle Length: 15 mm
Possible Applications
Clamping off-center, square, or irregular workpieces
Precision turning and custom machining tasks
Small lathe workshops requiring high accuracy
